1-8
Service Information
4st 4/5/6 2011
ab
c
d
c
d
1
å
ç∂
1
4st OIL
4st
OIL

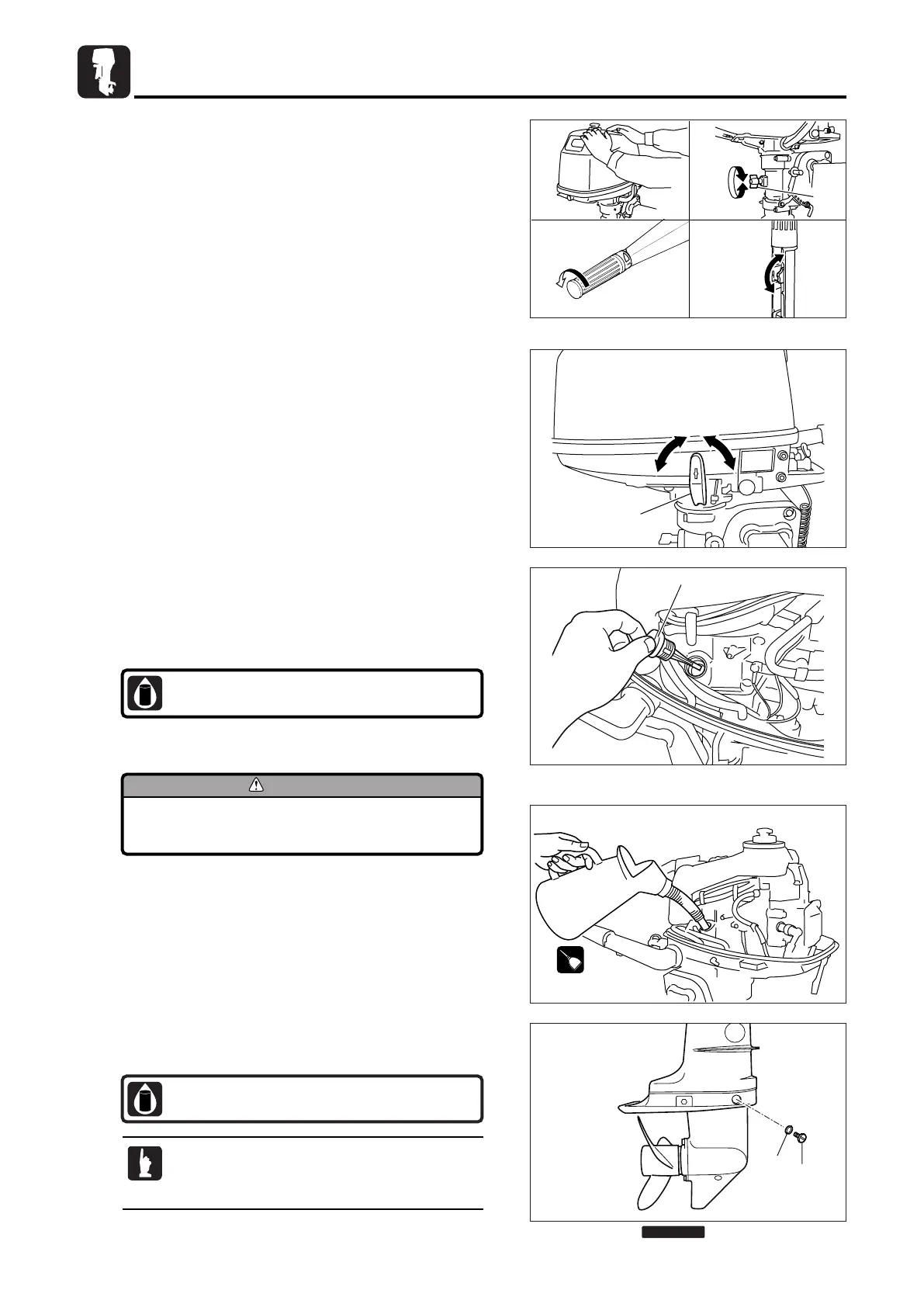

4. Pre-delivery Inspection
1) Steering Handle
å Check installations for clattering and play.
Adjust steering friction.
ç Check throttle grip for movement. (full open/full close).
Adjust throttle friction.
2) Gear Shift
1. Check shift lever 1 and propeller shaft for smooth
movement of the shift between forward (F) and neutral (N)
while engine is operating.
N
R
F
N
R
F
1
2
1
4) Gear Oil
1. Check quantity of gear oil.
Gear Oil :
195 cm
3
(6.6 fl.oz)
OIL
1 Oil Level Gauge
1 Oil Plug 2 Gasket
Do not reuse.
1 Steering Adjust Screw c Lighter d Heavier
3) Engine Oil
1. Set outboard motor straight ahead and vertical.
2. Fill with Engine Oil.
4 Stroke Engine Oil :
450cm
3
(15.2 fl.oz)
OIL
CAUTION
Engine oil is removed before shipment to
prevent leakage during transportation.
3. Use oil level gauge 1 to check oil quantity.
Spill of some oil from upper plug hole as plug is
removed indicates that gear case is filled with
specified quantity of gear oil.
