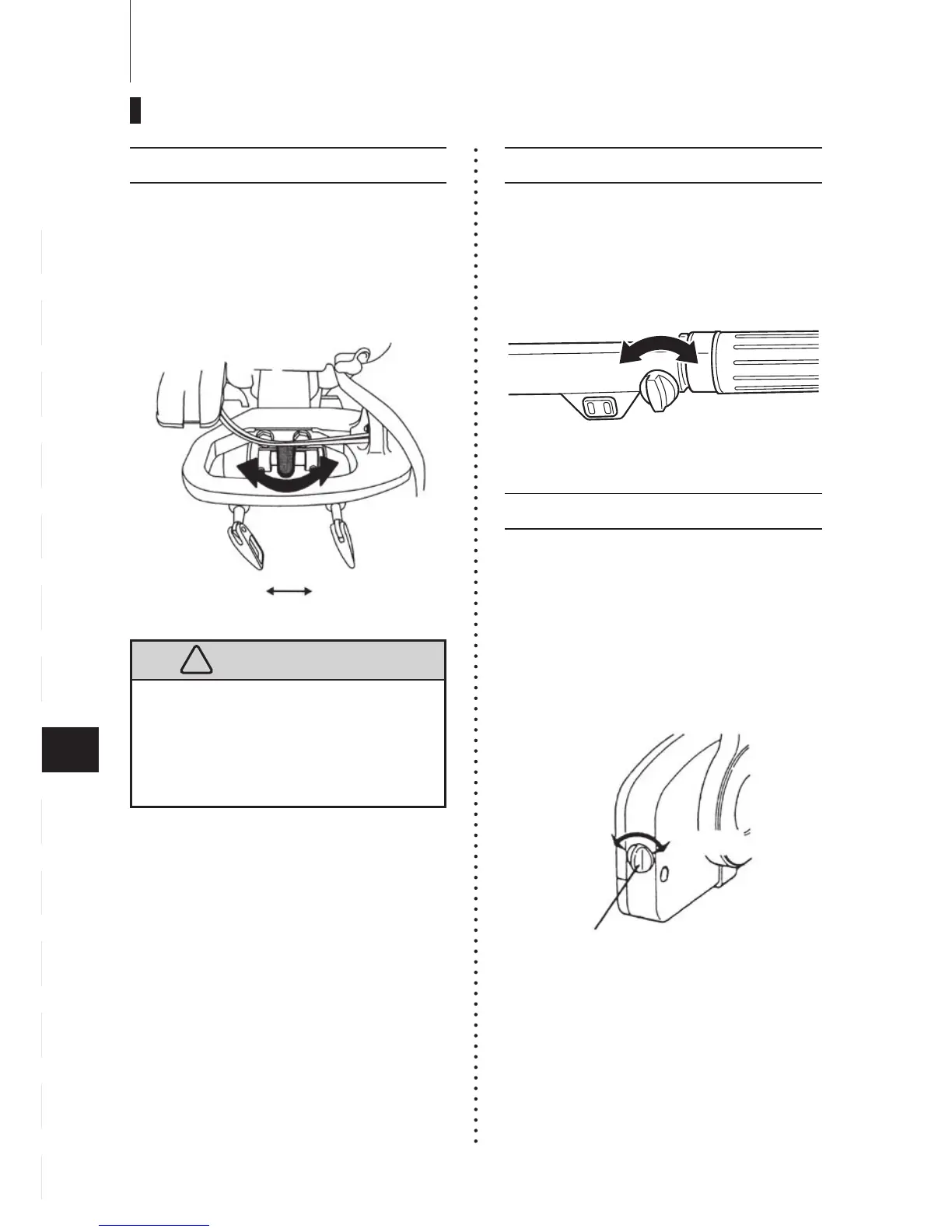

Friction adjustment of the throttle
grip can be made with the throttle
adjustment screw.
(Throttle friction adjustment screw)
To adjust the load of the remote
control lever, turn the throttle friction
adjustment screw on the front of
the remote control. Turn clockwise
to increase the load and counter-
clockwise to decrease it.
40
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Adjust this lever to achieve the
desired steering friction (drag) on
the tiller handle. Move lever towards
(a) to tighten friction and move lever
towards (b) to loosen friction.
1. Steering friction 2. Throttle grip
3.
Remote Control Lever Load
ADJUSTMENT
Do not increase throttle friction
excessively, or heavy movement of
throttle grip or remote control lever
movement could cause loss of throttle
control potentially leading to accident.
