Tohnichi ATG - Page 5



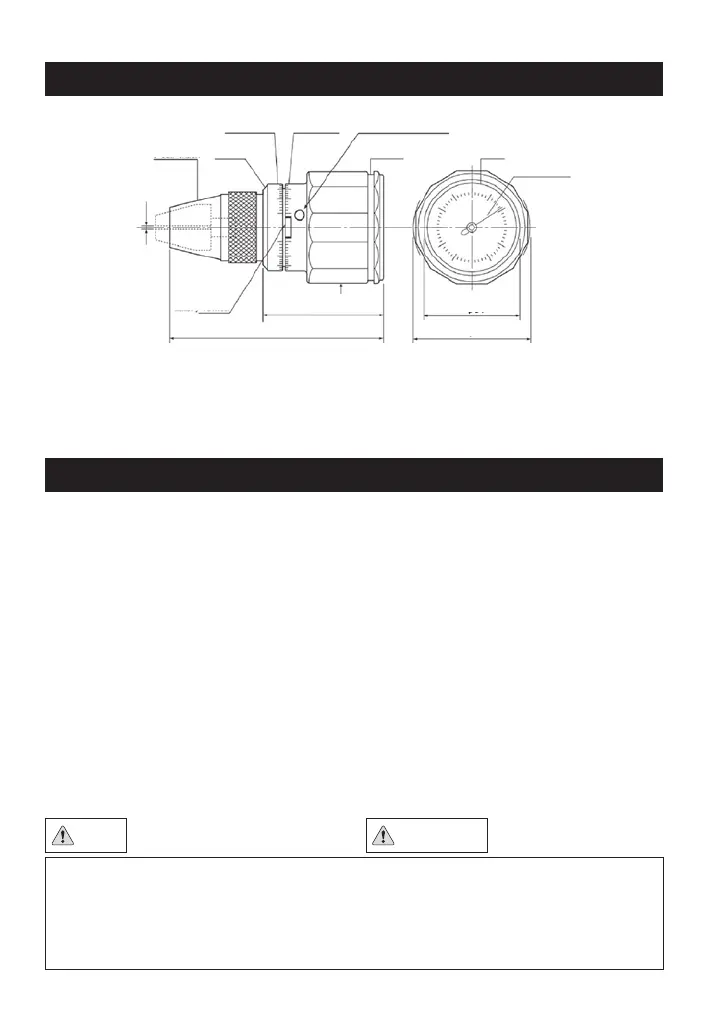

4. 各部の名称 4. External View
※ ATG045CN～ATG1.5CN(45ATG～
150ATG) はプッシュロックはつきません。
※ ATG045CN to ATG1.5CN, 45ATG to
150ATG and ATG06Z to ATG2.4Z
modeles have no Push Look.
B目盛
B Graduation
三 爪 チャック
3-Jaw Chuck
ホルダー
Holder
固定用溝
Groove for Instllation
C目盛
C Graduation
正面置針
Memory Pointer
側面置針
Memory Pointer
A目盛
A Graduation
プッシュロックボタン
Push Lock
φｄ
φＤ
φＤ1
ケース Case
L’
L1
5. 目盛の見方 5.
How to read graduations
● トルクゲージを固定して測定する場合
󰴤 


󰴥 


● トルクゲージを回して測定する場合
󰴤 


󰴥 


● Measured object twisting method
1. For clockwise measurement, read the red numbered
graduations on the side and dial face. When using the side
graduation, read the red numbers on the B Graduation .
2. For counter-clockwise, read the green numbered on the
graduation on the side and dial face. When using the side
graduation, read the green numbers on the B Graduation.
● The gauge twisting method
1. For clockwise measurement read the red numbered
graduations on the side and dial face. When using the side
graduation, read the red numbers on the A Graduation .
2. For counter-clockwise, read the green numbered
graduation on the side and dial face. When using the side
graduation, read the green numbers on the A Graduation.
󱾁 󲐣󱢛󲗍
󱢛󲗍󰇒󲗍󲓦
󲗍󱀠
󲓨
󱾁
Calibration of torque gauge is performed
by the side scale, C graduation is
treatede as a subsidiary, and priority is
given to the side.
 
