6. 使用方法 6.
Usage
トルクゲージを固定して測定する場合
（写真①）
●
Measured object twisting method
(Refer to Picture 1)
1.
Fix the Gauge onto your own custom made
xture.
2.
Open 3-jaw chuck and insert the shaft of
the measured object into the chuck while
pushing the Push Lock.
3.
Tighten the chuck firmly to the central
position of the measured objective while
pushing the Push Lock.
4.
Twist the measured object in the measuring
direction.

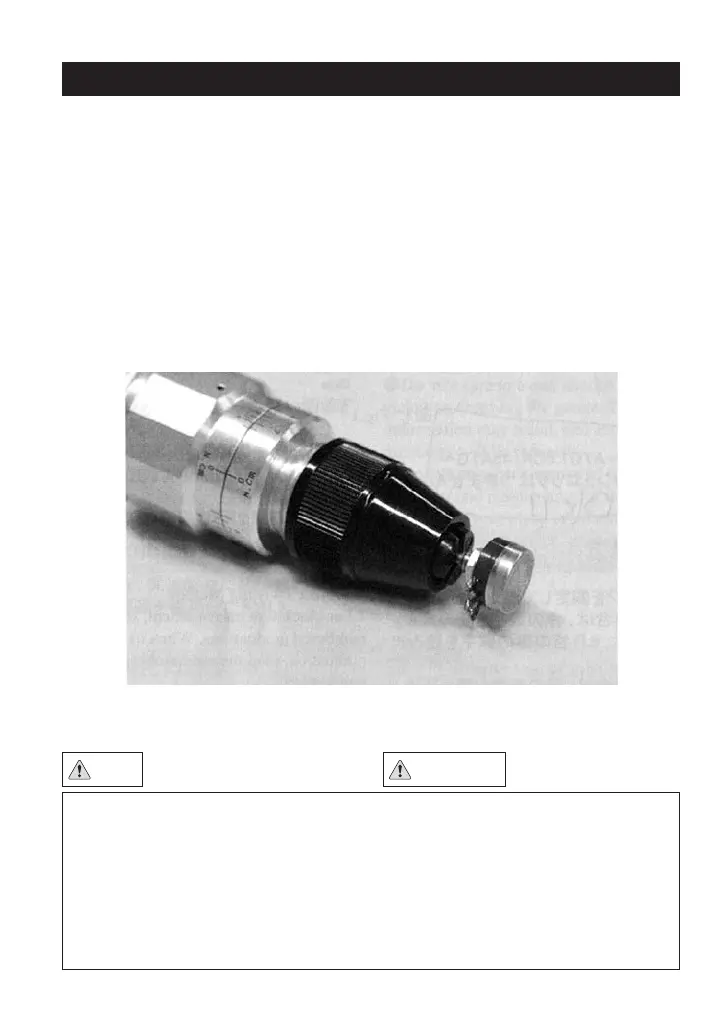

Picture 1
Unless a measured object is fixed to a
center, measurment of torque cannot be
performed correctly.
Turning the case without pushing the
Push Lock may cause breakdown of the
gauge body by sending twisting force from
the case.
In the case of using an optional item 322.
