6. 使用方法 6.
Usage
トルクゲージを回して測定する場合

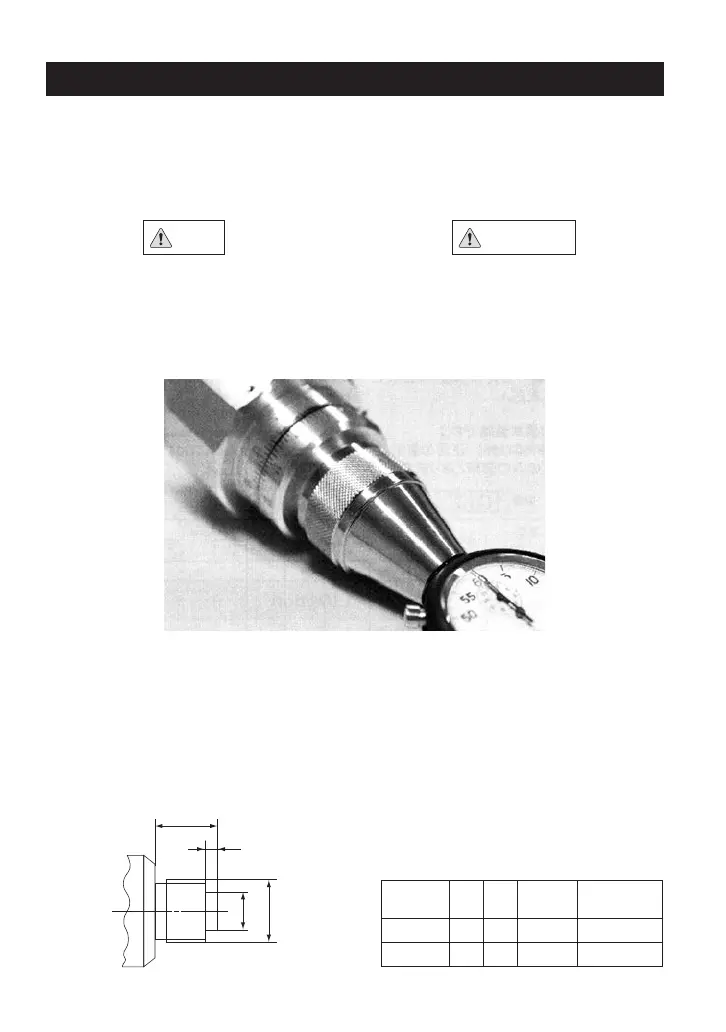

（写真②）
● The gauge twisting method
(Refer to Picture 2)
1. Open 3-jaw chuck and insert the shaft
of the measured object into the chuck
while pushing the Push Lock.
2. Tighten the chuck rmly to the central
position of the measured objective while
pushing the Push Lock.
3. Twist the case in the measuring direction.
Picture 2
※ Keep the Push Lock held in during the
execution of the chucking procedure.
This creates a secure fit between the
holder and the case, as well as, makes
the chucking procedure easier.
※ If the diameter of the objects to be
tested is larger than the 3-jaw chuck, you
will have to use a custom made adapter
for the application. Refer to Fig.2.
A
B
D1
D2
Fig.2
To Next Page
