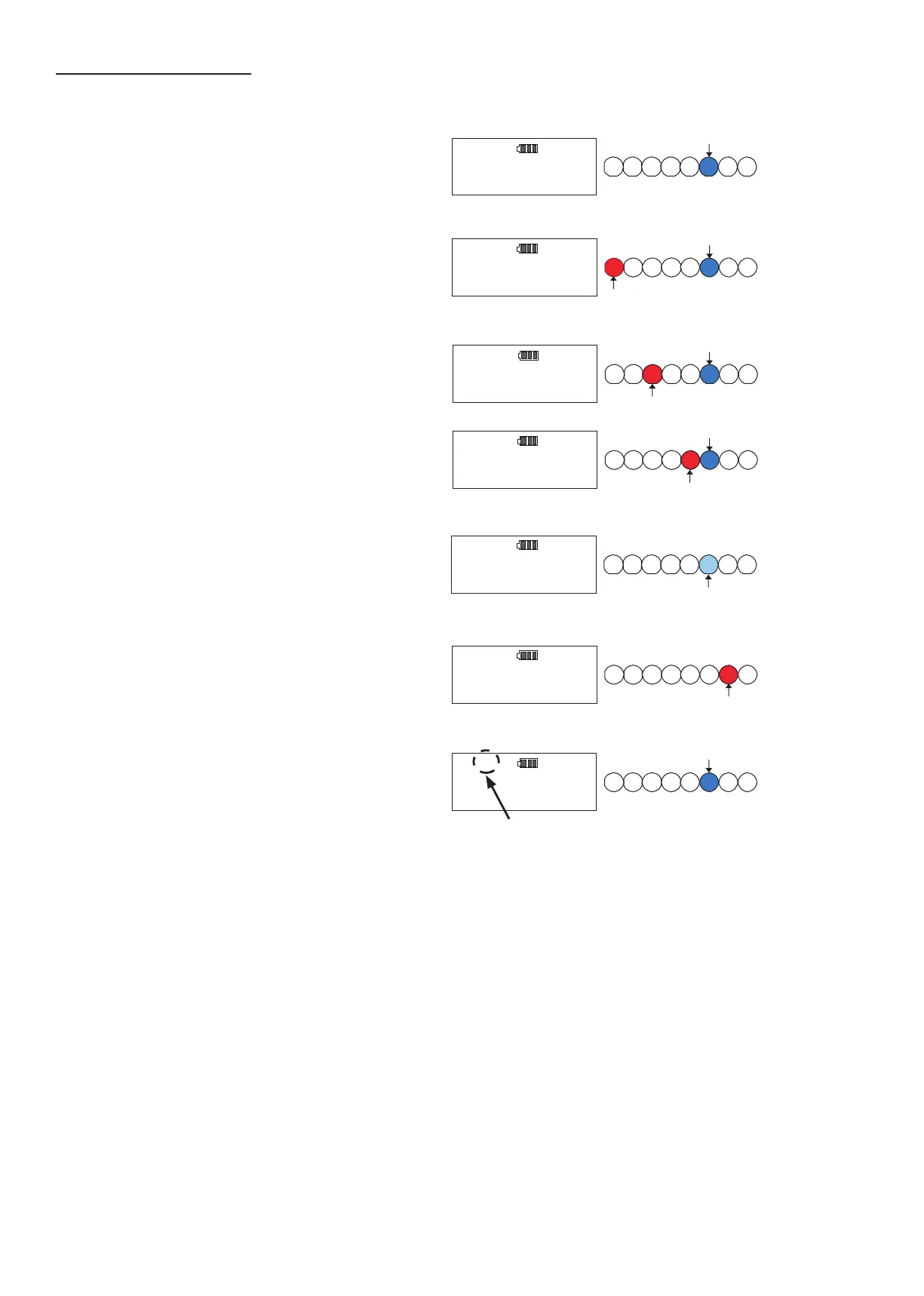

Tightening operation
Example Target torque: 100N
m
 Target range 5%
Blue LED turns on to indicate the target torque.
Start tightening
When it reaches 20% of the target torque, red LED
turns on. (Red LED may turn on at 7.5% of the max
capacity torque in case 20% of the target torque is
higher than this value.)
As torque increases, the red LED moves toward right.
When it reaches 80% of the target torque value, buzzer
starts to sound off-and-on (slow pace) to indicate the
target torque is near.
When it reaches the target torque range, the blue LED
starts to blink and the buzzer goes off continuously to
inform tightening completion.
If it exceeds the target range, the red LED turns on
again, and the buzzer pattern turns to off-and-on (fast
pace).
Press MEM key to save and proceed to the next
counter. If you need to clear the data, press C key.
It does not give a judgement.
Example Target torque: 0 N
m
Blue LED at the target torque part will NOT turn on.
When it reaches 7.5% of the maximum torque capacity,
the blue LED turns on and starts to move toward right.
01
0.0
N・m
A
Blue
01
20.0
N・m
A
Blue
Red
01
50.0
N・m
A
Blue
Red
01
80.0
N・m
A
Red
Blue
01
100.0
N・m
A
Blue Blinking
01
110.0
N・m
A
Red
9
02
0.0
N・m
A
Blue
Proceed to the next counter
