MAINTENANCE
• Expiration date: No expiration date for this product but the state of the PROMAX LCD 9.13G welding helmet must be checked before each use.
The welding helmet must not fall down.
Do not put any heavy tools/objects in or on the helmet in order not to damage the lter or the protective screens.
The deterioration of the lter or its protective screen can reduce the vision eld or the protection level. Replace the damaged parts.
• Do not use any tools or other sharp objects to remove any components of lter or helmet. Doing so may damage lter or helmet preventing proper function, possibly causing
injury or cancellation of the warranty.
• Clean the lter with a clean cotton or with a special rag for lens.
• Clean and change protective screens on a regular basis.
• Clean the inside and the outside of the helmet with a neutral disinfectant product.
• Do not use any solvent.

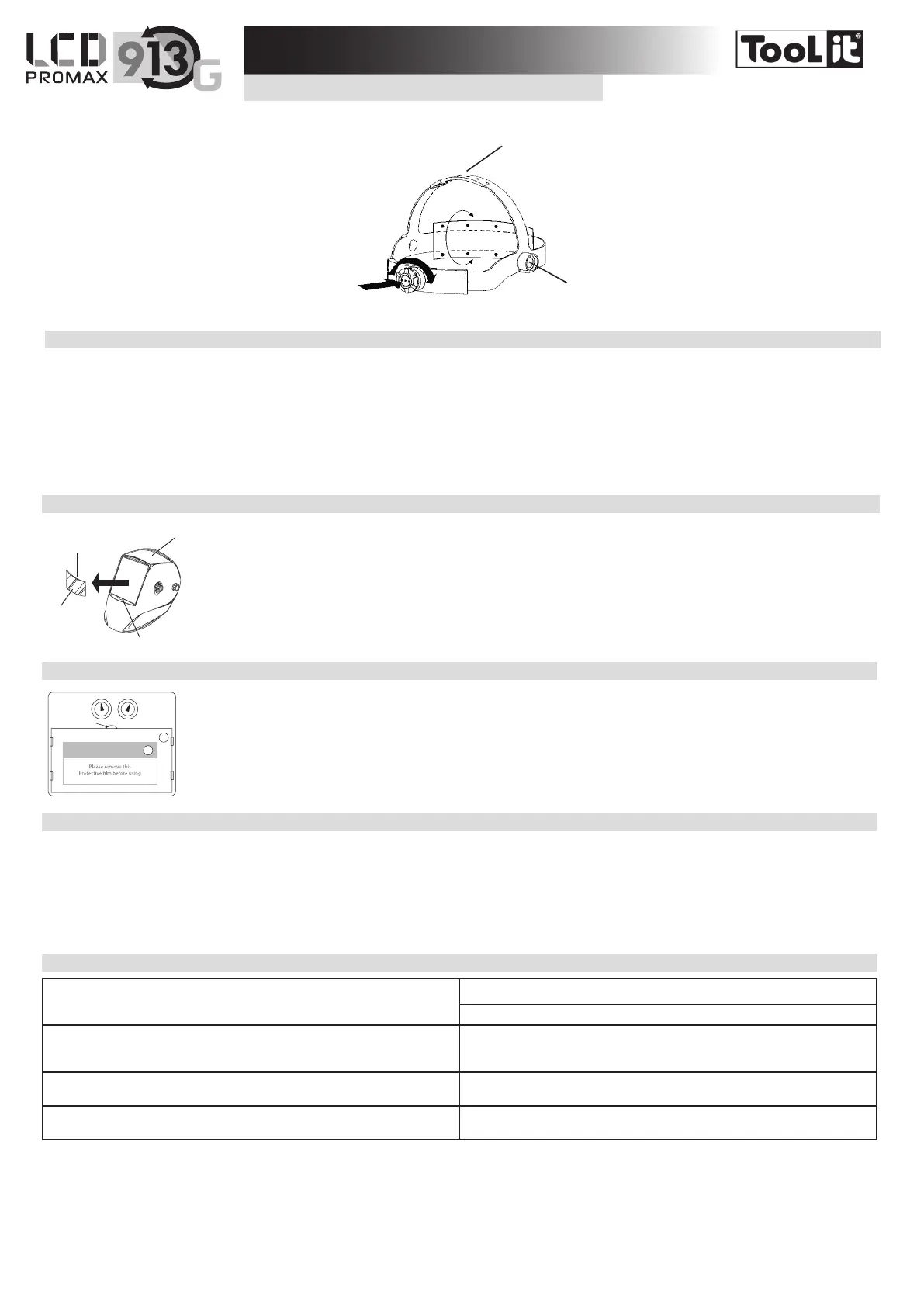

REPLACING THE EXTERNAL PROTECTIVE SCREEN
2
3
1
The outer protection screen (2) can be removed by placing a nger under
the screen on (A) of the helmet (1).
When changing the screen, make sure that the protective lm (3) has
been removed. This lm must be removed only when the protection
screen is in position in the helmet.
REPLACING THE INTERNAL PROTECTIVE SCREEN (10)
WARNING
A
10
11
The internal protection screen (10) is removable by sliding it down by
placing a nger on (A).
When changing the screen, make sure you remove the protective screen
(11)
WARNING
• Use the welding helmet only for eye and face protection against harmful ultra violet and infrared radiation, sparks and spatter from welding.
• This product will not protect you against serious impact hazards such as, fragments of grinding wheels or abrasive discs, stones, or other grinding
tools, explosive devices or corrosive liquids (non exhaustive list). Appropriate protection must be used where these hazards exist.
• The hairband may cause allergies to sensitive people.
• The opto-electronic lter of the PROMAX LCD 9.13 G is not waterproof and will not work properly if it has been in contact with water.
• Application temperature of the lter is from -5°C to +55°C.
• Storage temperature of the PROMAX LCD 9.13G is from -20°C to +70°C.
TROUBLESHOOTING
The optoelectronic lter does not work
Activate the solar charge by exposing the cell to the light for 20 to 30 minutes.
Make sure that the potentiometer is set to the «welding» position (9 to 13)
Filter stays dark after the weld arc is extinguished or when no arc is present
Check and clean detectors if needed.
Adjust sensitivity knob to the lowest position. If the ambient light around the
welding area is extremely bright it is recommended to reduce the light level.
Uncontrolled switching or ickering:
Filter darkens and then lightens while the welding arc is present
Check arc sensors are not blocked from direct access to the arc light. Adjust the
sensitivity to a higher setting
Side of the lter is lighter than the center of viewing area It is a natural feature of LCD’s, this symptom is not dangerous for the eyes.
However for a maximum comfort, try to keep a viewing angle of around 90°
EN
