ASSEMBLY

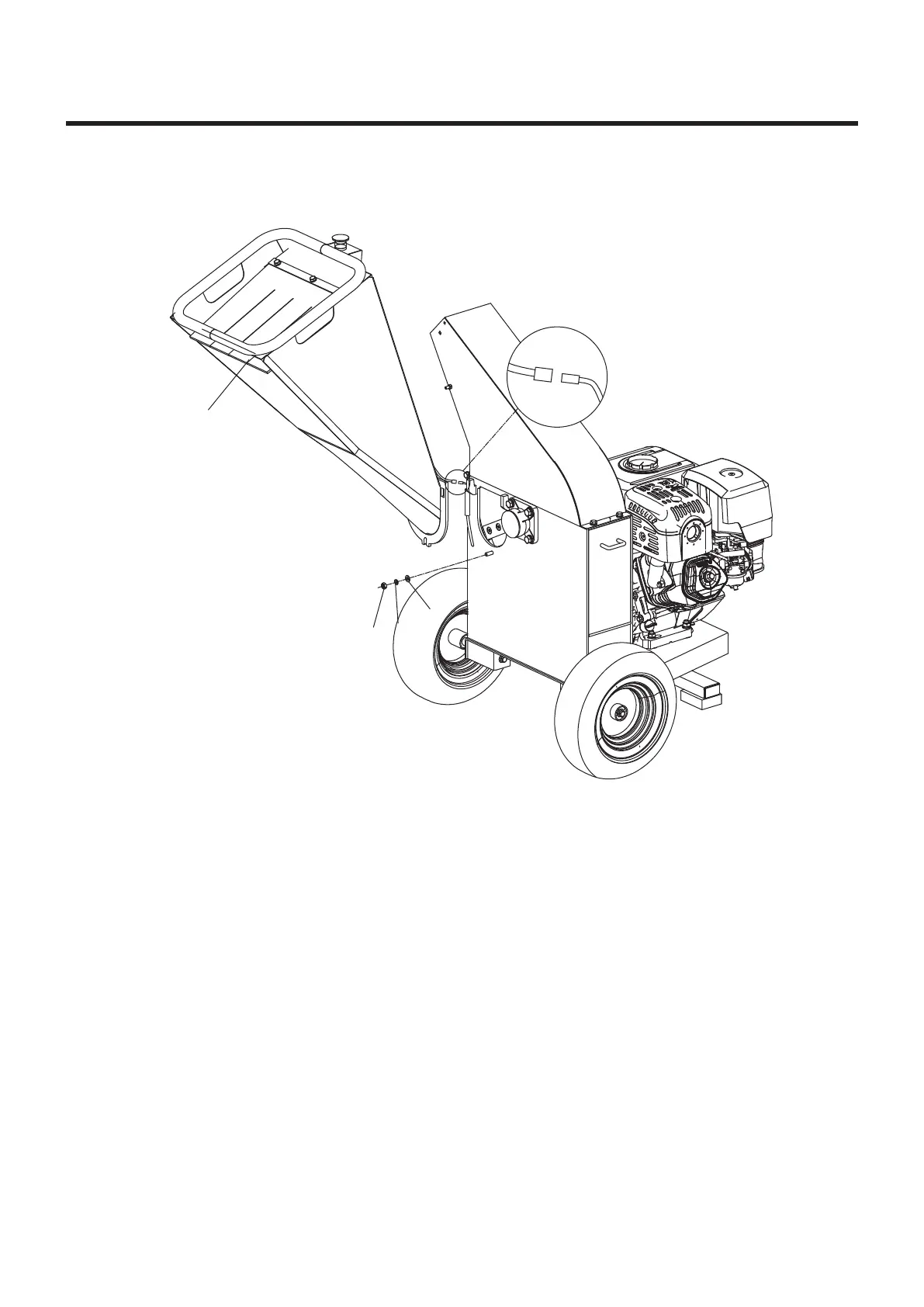

Feed Hopper Assembly
Open the main body cover by loosening the screw.
Install the feed hopper (D) to the main body by using Ø8 at washer (J), Ø8 spring
washer (G), and nut M8 (I).
Close the main body cover by tightening the screw.
Connect the wire connector for the emergency stop button.
1.
2.
3.
4.
I
G
J
D
