21

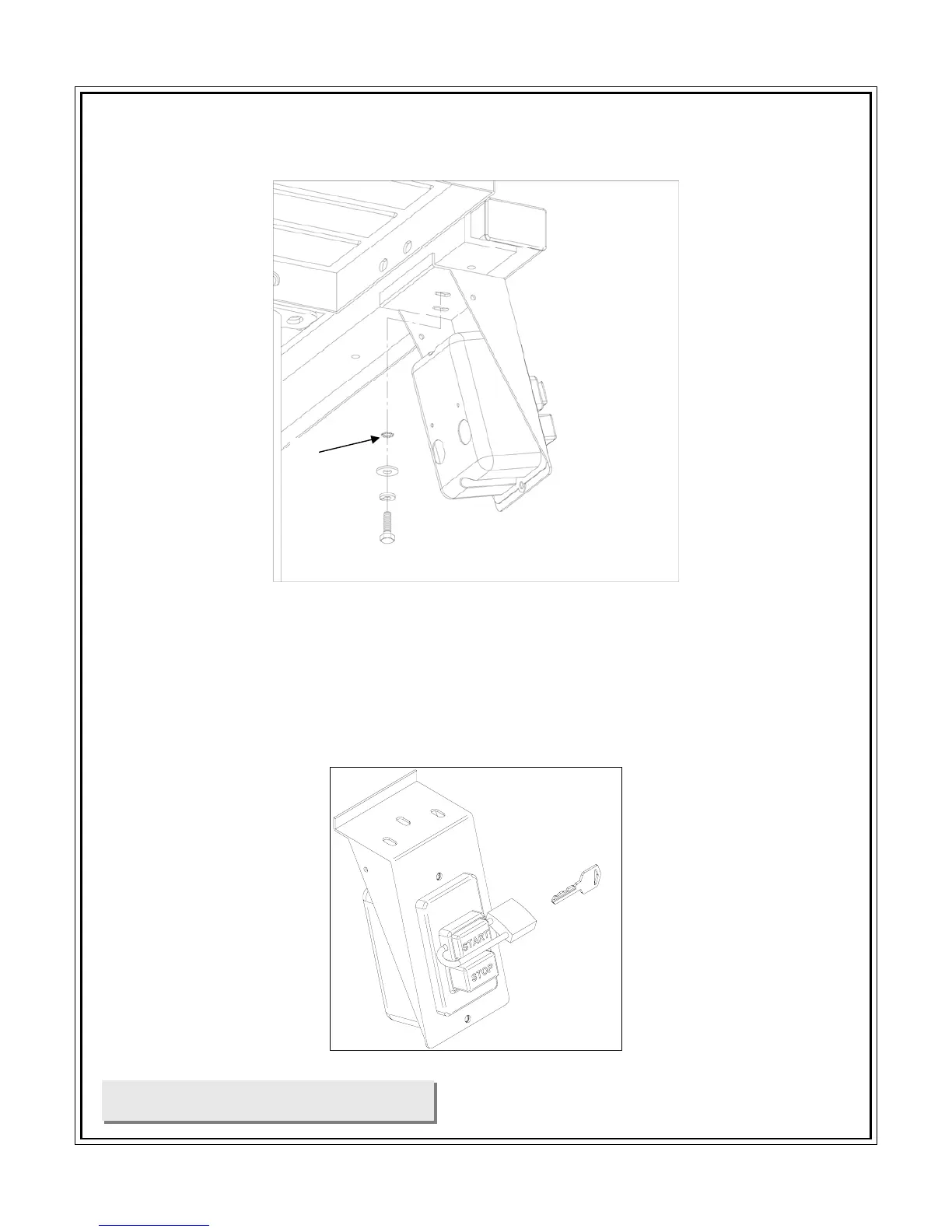

Install the switch on the location as Fig.23 with the hex. Screw 1/4”X20UNCX5/8”. Lock the screw
under the Front rail, and make sure you have lock including star washer A as Fig.23.
Fig.23
The table saw is equipped with a push-button switch that will accept a padlock (not included) for
locking the switch in the OFF position. See Fig. 24. To safeguard your machine from unauthorized
operation and accidental starting by young children, the use of padlock is necessary. Place the key
in a location that is inaccessible to children and others not qualified to use the tool.
Fig.24
ADJUSTING THE MITER GAUGE
A
