When rewiring the supplied electric motor, be sure power cord is unplugged then change
the connection as illustrated below. Always secure wire nuts with friction tap. A new plug
will be required.
NOTE: The reconnection shall be made by qualified electrician or service personnel.
1. TO 110 VOLT. Open motor wire box, contact No.1 red motor wire and No.3 yellow motor wire to
either power wire; than contact No.2 black motor wire and No.4 white motor wire to another power
wire. Please refer to Fig. 1.3.
Fig.1.3
2. TO 220 VOLT. Open motor wire box, contact No.1 red motor wire to either power wire, and
contact No.4 white motor wire to another power wire, than contact No.2 black motor wire to No.3
yellow motor wire. Place refer to Fig.1.4.

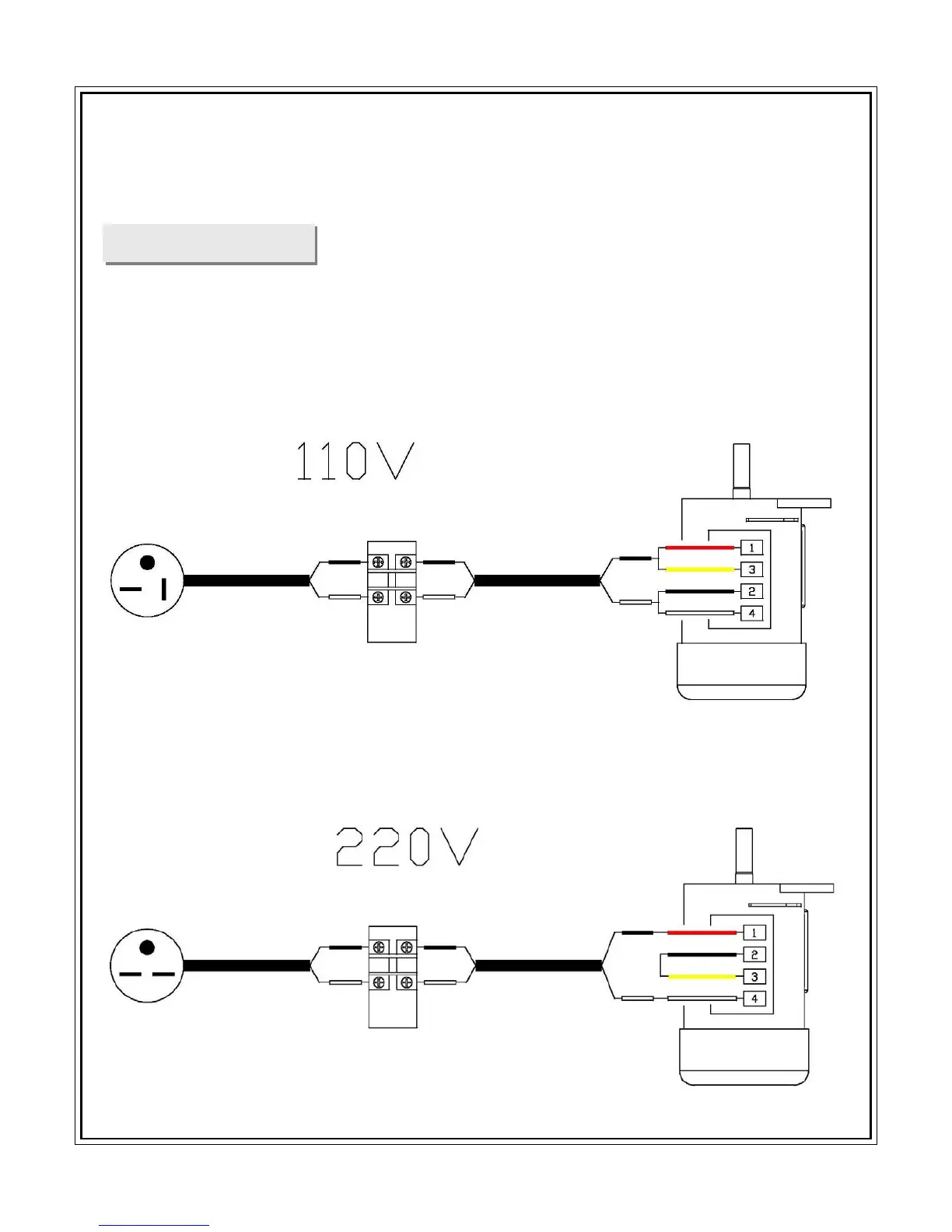

WIRING DIAGRAMS
