ASSEMBLY INSTRUCTIONS
Place all parts from the box in a cleared area and position them on the floor in front of you.
Remove all packing materials from your area and place them back into the box. Do not dispose of
the packing materials until assembly is completed. Read each step carefully before beginning.

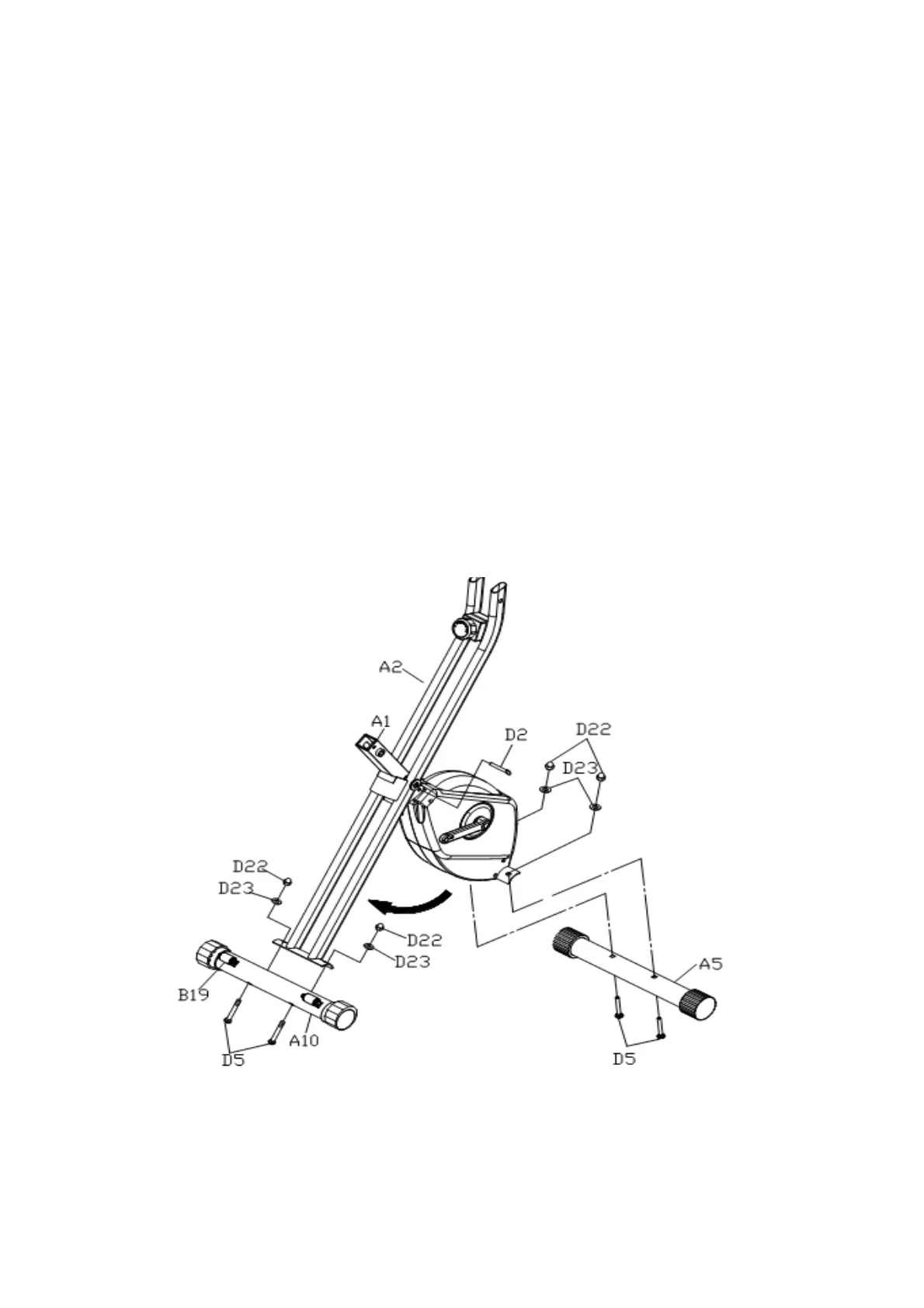

STEP 1: Unfold the Rear Frame (A2) away from the Main Frame (A1). Locking the frame
assembly in unfold position by inserting the Pull PIN (D2) into the hole in the Rear Frame
(A2).
STEP2: Attach the Rear Stabilizer (A10), the one with Transport Wheels (B19), to the Rear
Frame (A2) with the wheels facing backward. Secure with Carriage Bolts
(M8*1.25*60mm) (D5), Acorn Nuts (M8) (D23), and Arc Washers (M8*1.25) (D22).
STEP 3: Attach the Front Stabilizer (A5) to the Main Frame (A1) with Carriage Bolts
(M8*1.25*60mm) (D5), Acorn Nuts (M8) (D23), and Arc Washers (M8*1.25) (D22)..
