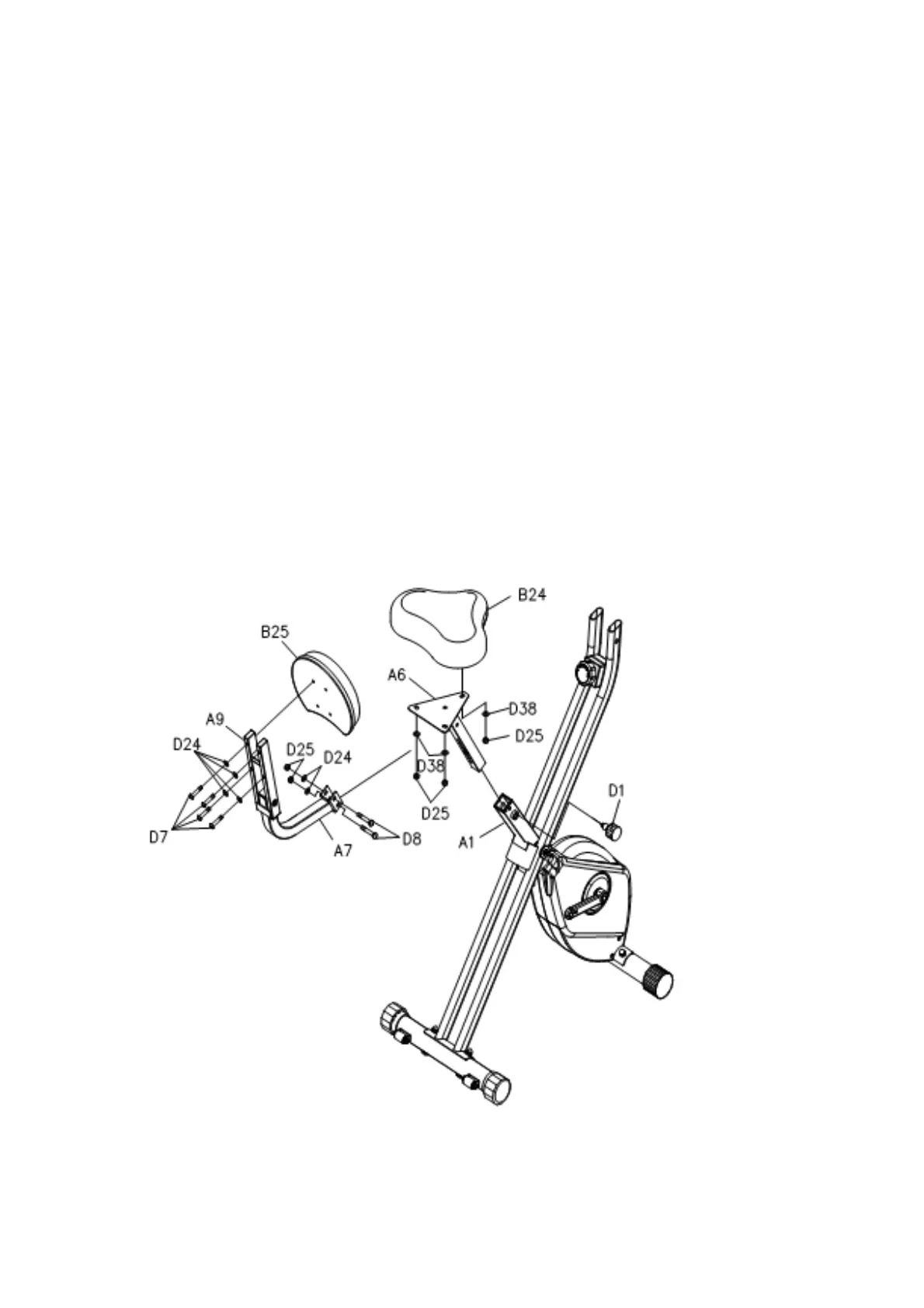

STEP 4: Attach the Seat (B24) to the Seat Post (A6) with Nylock Nuts (M8) (D25) and Washer
(M8) (D38). Insert the Seat Post (A6) into the Main Frame (A1) and secure with the
Adjustment Knob (D1).
NOTE:
Make sure that the pin on the Adjustment Knob (D1) is inserted into one of the holes in Seat
Post (A6).
STEP 5: Attach the Back Support (A7) and Back Frame (A6) by using Carriage Bolt
(M8*1.25*48mm) (D8) and Washer (M8) (D24).
STEP 6: Attach the Back Post (B25) to the Back Support (A9) with Hex Head Round Bolt M8X40
and Washer (M8) (D24).
