ASSEMBLYINSTRUCTIONS
RUCTIONS

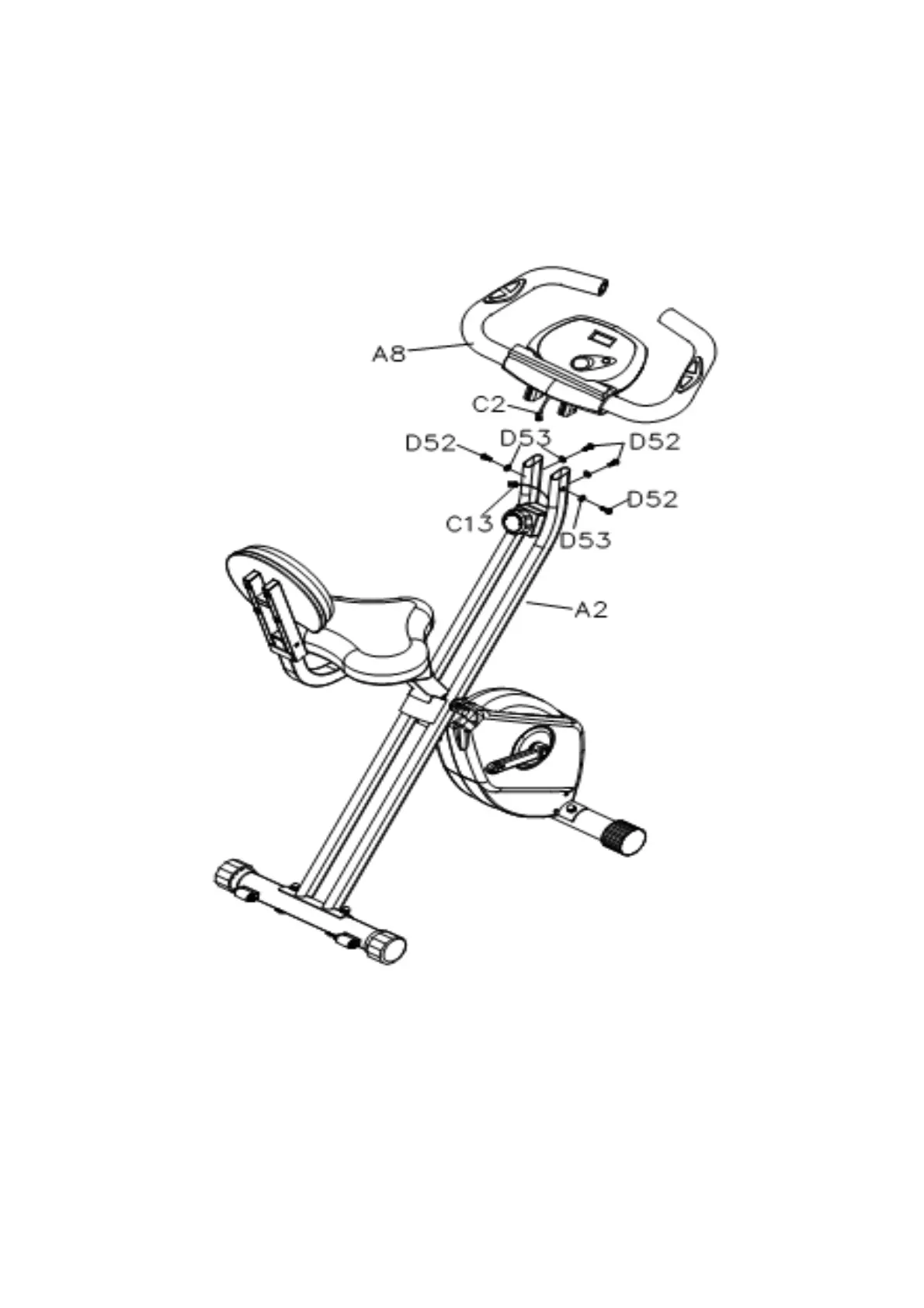

STEP7: Insert the Handle Bar (A8) into the Rear Frame (A2) and securing by using the Bolt,
Button Head (M6* 12mm) (D52) and Spring Washer (M6)(D53). Then Connecting the
Connection Wire (C2) and Sensor (C13).
