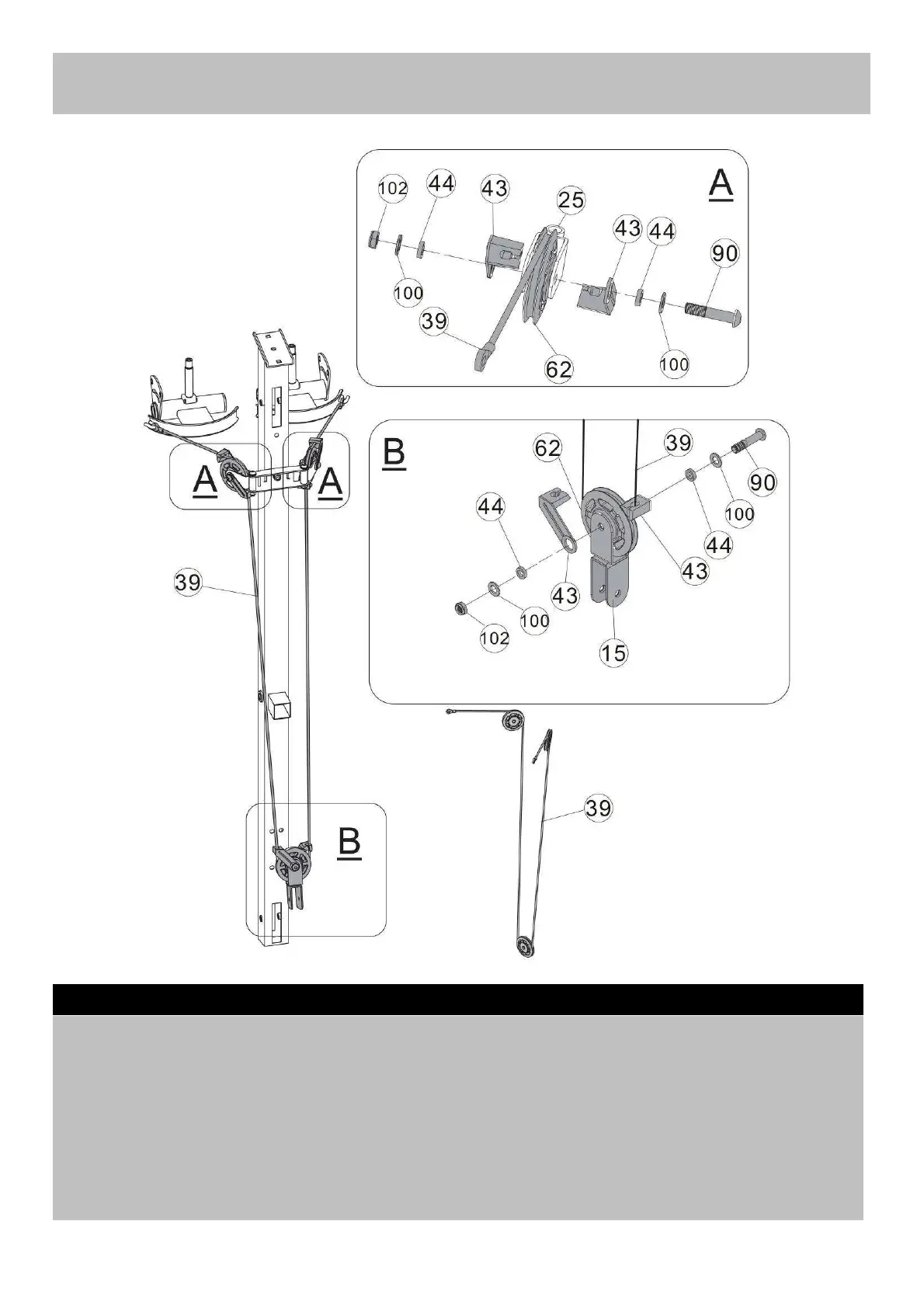

(A). Attach one end of the butterfly cable (39) to the post of the right butterfly adjustment frame(21),
Draw the cable backwards and place one pc pulley below the cable.Secure the 2 pcs cable
retainer(43) with the pulley together with one pc M10*50 Allen bolt(90), 2 pcs Ø10 washers (100),2
pcs cable retainer bushing (44) and M10 aircraft nut(102).
(B) Draw the cable downwards and place one pc pulley onto the cable.Secure the pulley , 2 pcs cable
retainer(43) and angled floating pulley bracket(15) with the same way in A.
(C) Draw the cable upwards and repeat the procedure A to fix another end of cable to the post of left
butterfly adjustment frame(20).
Step 9
Assembly instructions
16
