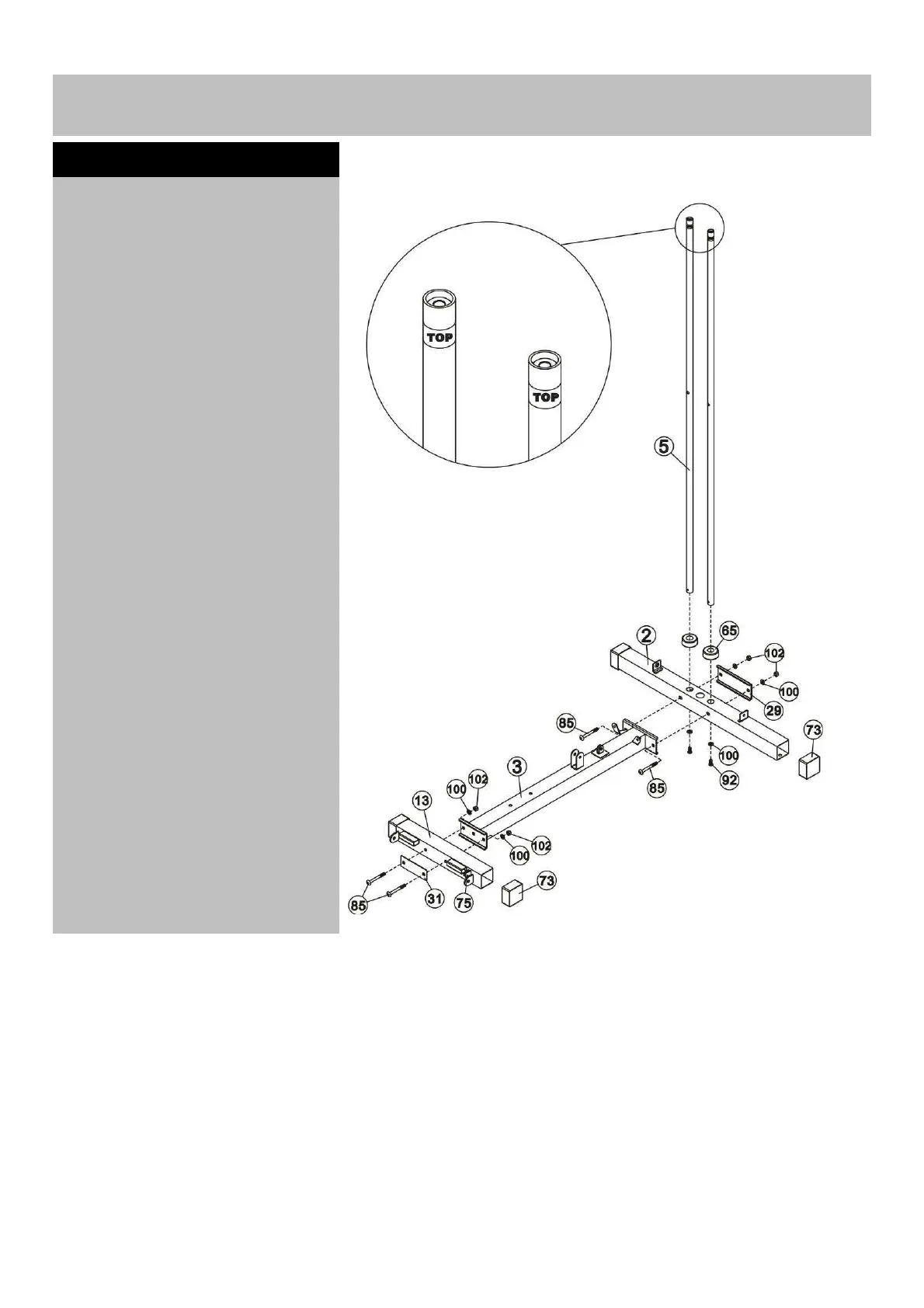

(A).Insert the 2pcs guide rods (5)
into the holes of the rear
stabilizer (2) separately . and
Secure them with 2 pcs
Ø10mm Washers (100) and 2
pcs M10 x 20mm Allen Bolts
(92) . Slide the 2pcs rubber
bumpers (65) along the guide
rods from the top to the
bottom.
(B).Attach the main base frame (3)
to the rear stabilizer(2), Secure
them with 2pcs M10×85
carriage bolts(85), one pc
bracket(29), 2pcs Ø10
washers(100) and 2 pcs M10
Aircraft nuts(102).
(C).Attach the front stabilizer(13)
to the main base frame(3),
Secure them with one pc
bracket(31), 2pcs M10×85
carriage bolts(85), 2pcsØ10
washer(100) and 2 pcs M10
Aircraft nut(102).
.
6
