Top TB74 - Installation; Harness Application

Bill Acceptor
www.topvme.com
8

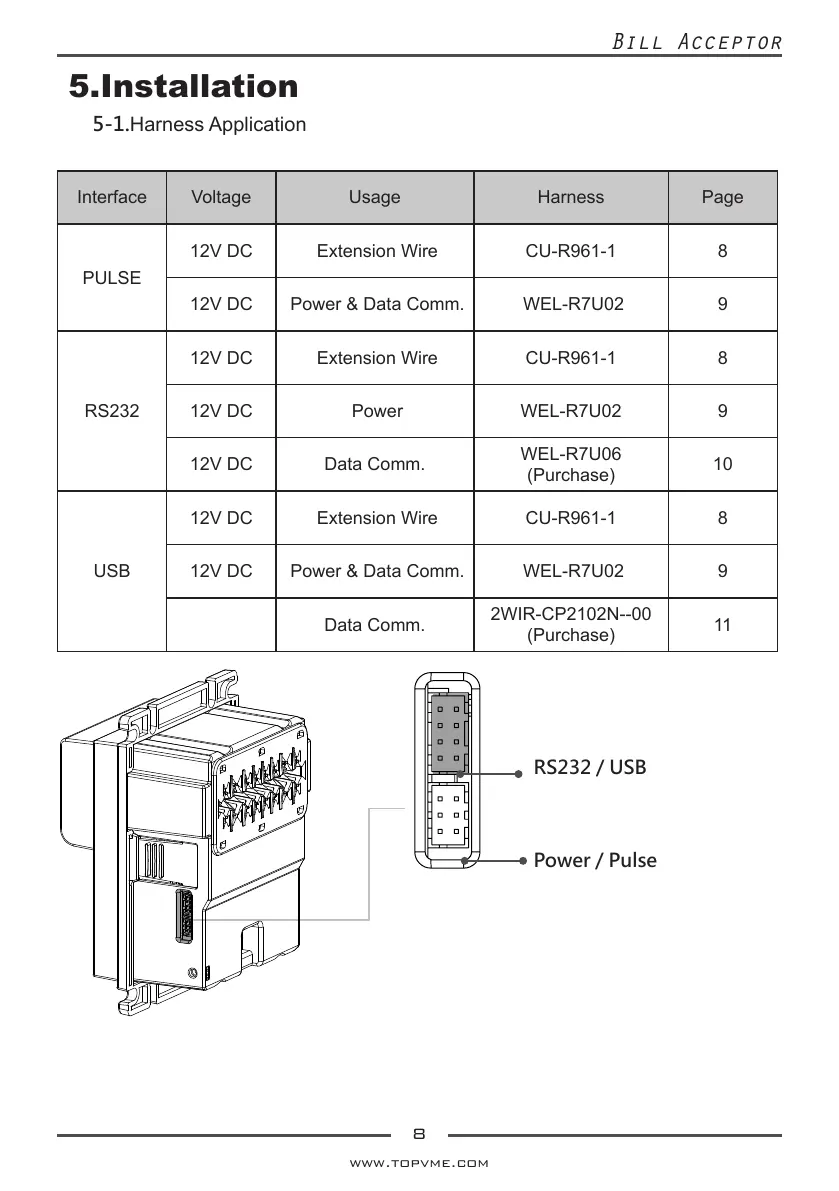

5.Installation
5-1.
Harness Application
Interface Voltage Usage Harness Page
PULSE
12V DC Extension Wire CU-R961-1 8
12V DC Power & Data Comm. WEL-R7U02 9
RS232
12V DC Extension Wire CU-R961-1 8
12V DC Power WEL-R7U02 9
12V DC Data Comm.
WEL-R7U06
(Purchase)
10
USB
12V DC Extension Wire CU-R961-1 8
12V DC Power & Data Comm. WEL-R7U02 9
Data Comm.
2WIR-CP2102N--00
(Purchase)
11
RS232 / USB
Power / Pulse
