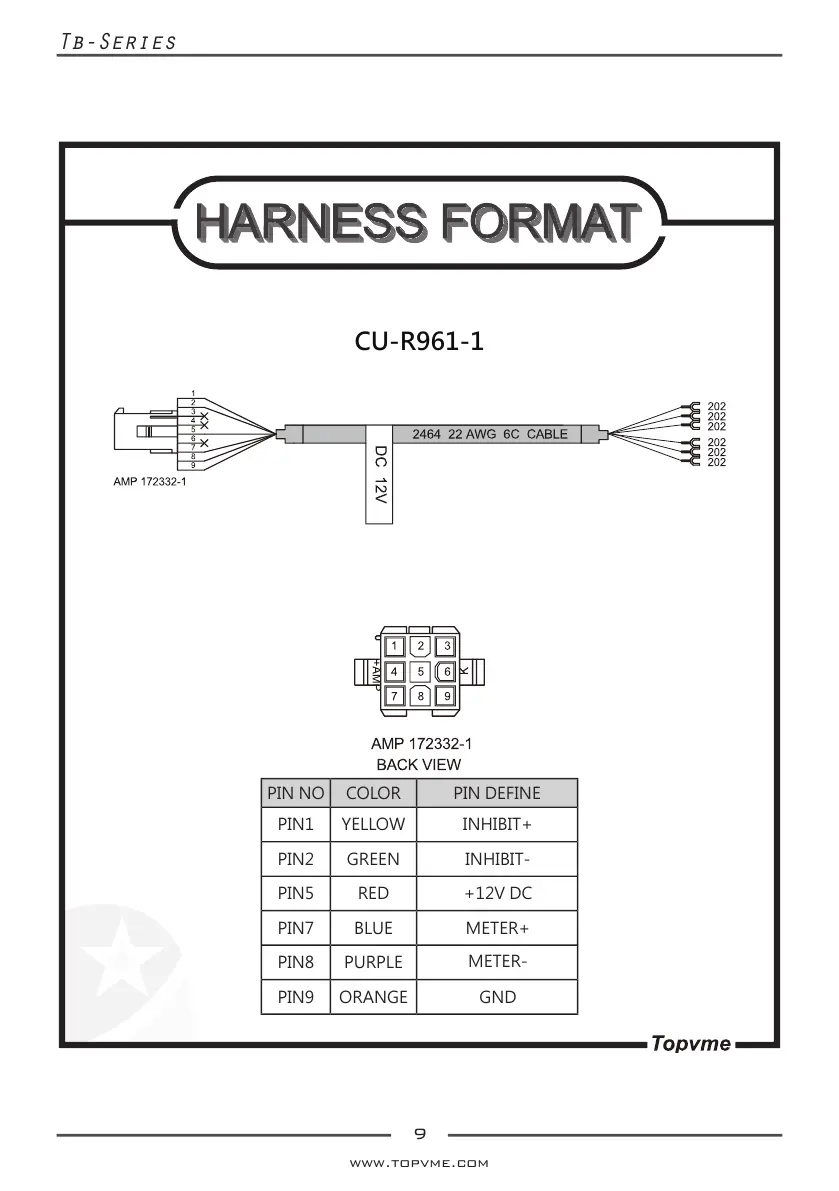

CU-R961-1
PIN NO COLOR PIN DEFINE
PIN1 YELLOW INHIBIT+
PIN2 GREEN INHIBIT-
PIN5 RED +12V DC
PIN7 BLUE METER+
PIN8 PURPLE
METER-
PIN9 ORANGE GND
