Top TB74 - Page 13

Bill Acceptor
www.topvme.com
10
PIN NO COLOR PIN DEFINE
PIN1 RED
+12V DC
PIN2 ORANGE GND
PIN3 YELLOW INHIBIT+
PIN4 GREEN INHIBIT-
PIN5 BLUE METER+
PIN6 PURPLE METER-
PIN NO COLOR PIN DEFINE
PIN1 YELLOW INHIBIT+
PIN2 GREEN INHIBIT-
PIN5 RED
+12V DC
PIN7 BLUE METER+
PIN8 PURPLE METER-
PIN9 ORANGE GND

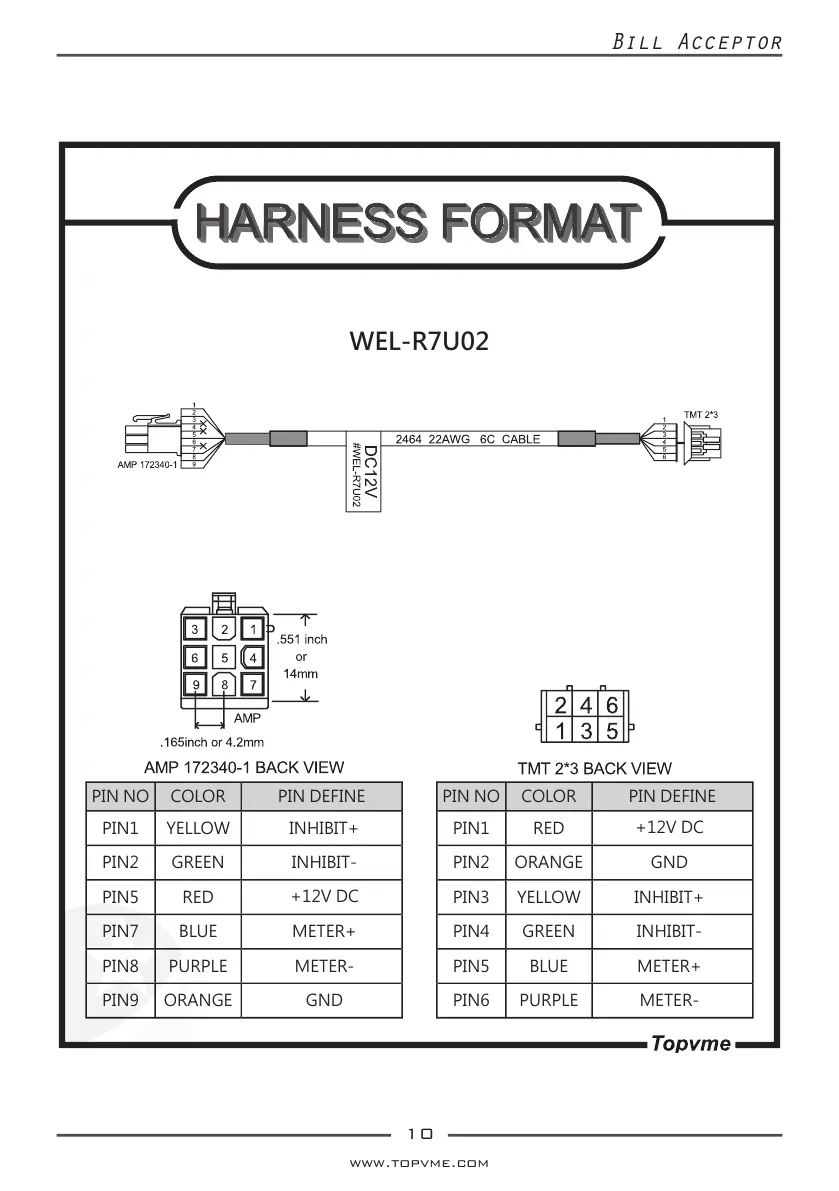

WEL-R7U02
