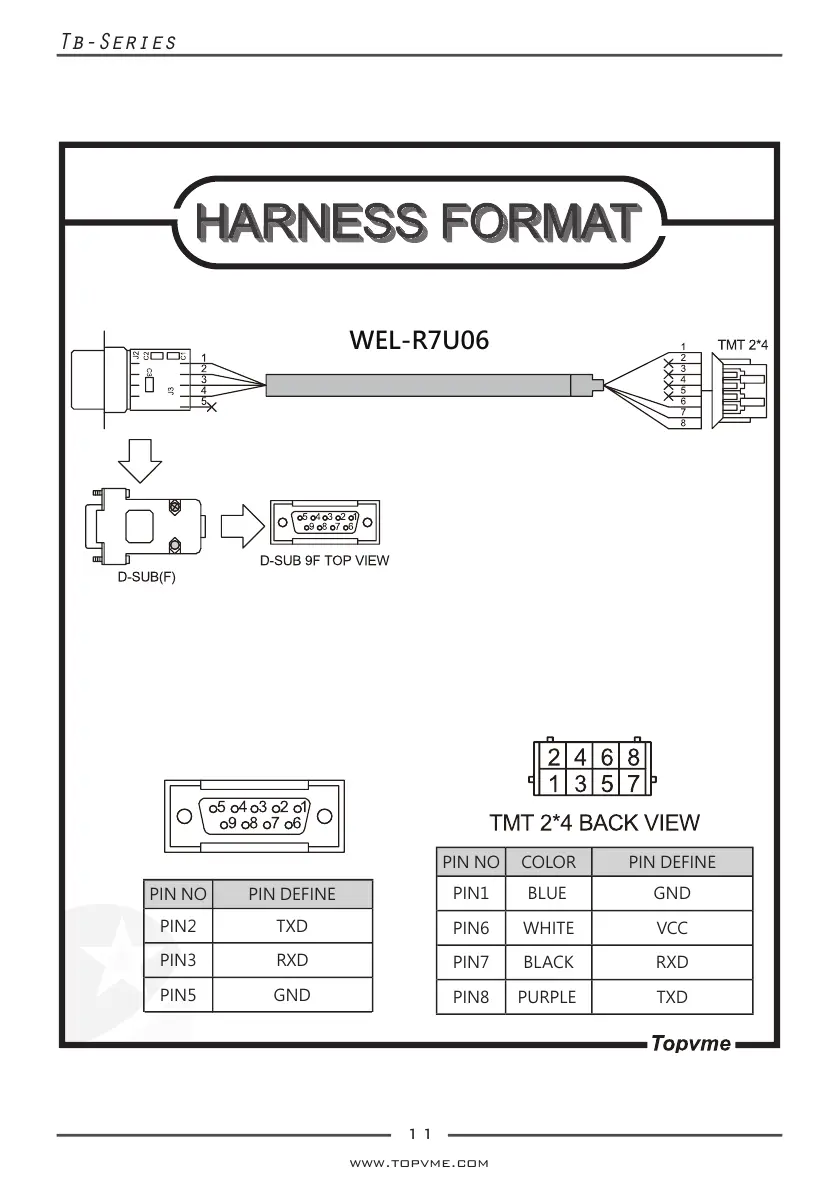

WEL-R7U06
PIN NO PIN DEFINE
PIN2 TXD
PIN3 RXD
PIN5 GND
PIN NO COLOR PIN DEFINE
PIN1 BLUE GND
PIN6 WHITE VCC
PIN7 BLACK RXD
PIN8 PURPLE TXD
