Top TB74 - Page 15

Bill Acceptor
www.topvme.com
12
4
3
2
1
1
7
2
8
2WIR-CP2102N--00

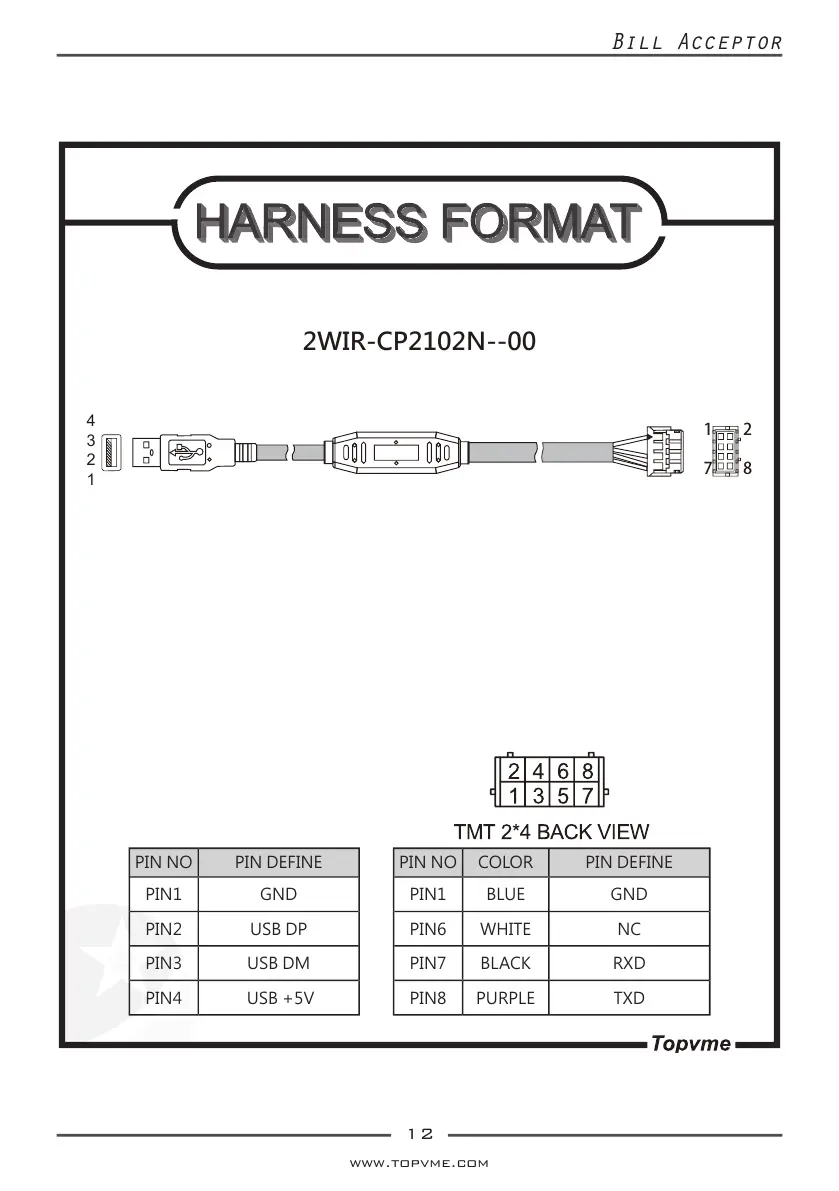

PIN NO COLOR PIN DEFINE
PIN1 BLUE GND
PIN6 WHITE NC
PIN7 BLACK RXD
PIN8 PURPLE TXD
PIN NO PIN DEFINE
PIN1 GND
PIN2 USB DP
PIN3 USB DM
PIN4 USB +5V
