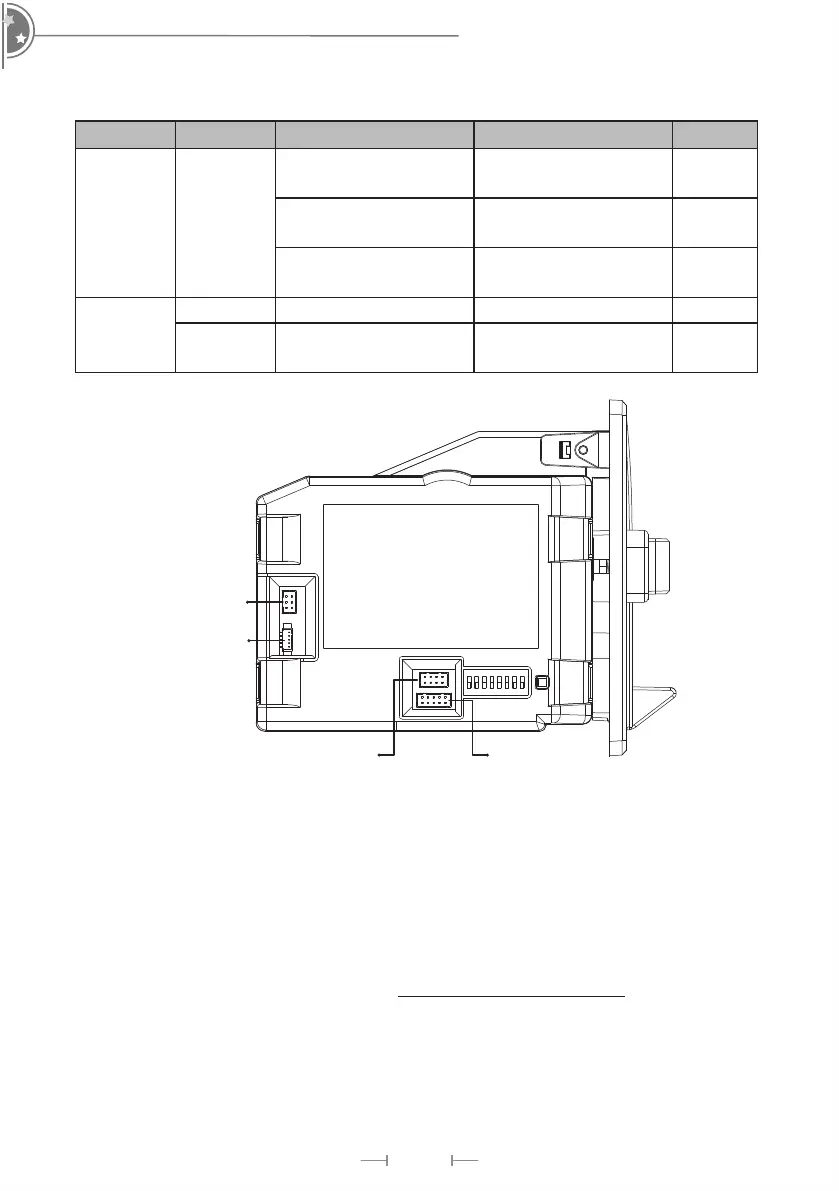

5. Installation
5-1. Harness Application
Interface Voltage Usage Harness NO. Page
Pulse 12V DC
Power & Data
Communication
WEL-RMS03 5
Power & Data
Communication
WEL-RMS02
(Purchase)
6
Extension Cable
CU-R961-1
(Purchase)
7
RS232
12V DC Power WEL-RMS03 5
+5V TTL
Data
Communication
WEL-R7U06 8
NOTE : Software download
Please refer to the G-BOX Operation manual for a guide step by step how
to download or update using the G-Box programmer. You can obtain it from
your local agent or contact us at : service@topvme.com.tw
WEL-RMS02
WEL-RMS03
Download
CS100 Harness
WEL-R7U06
