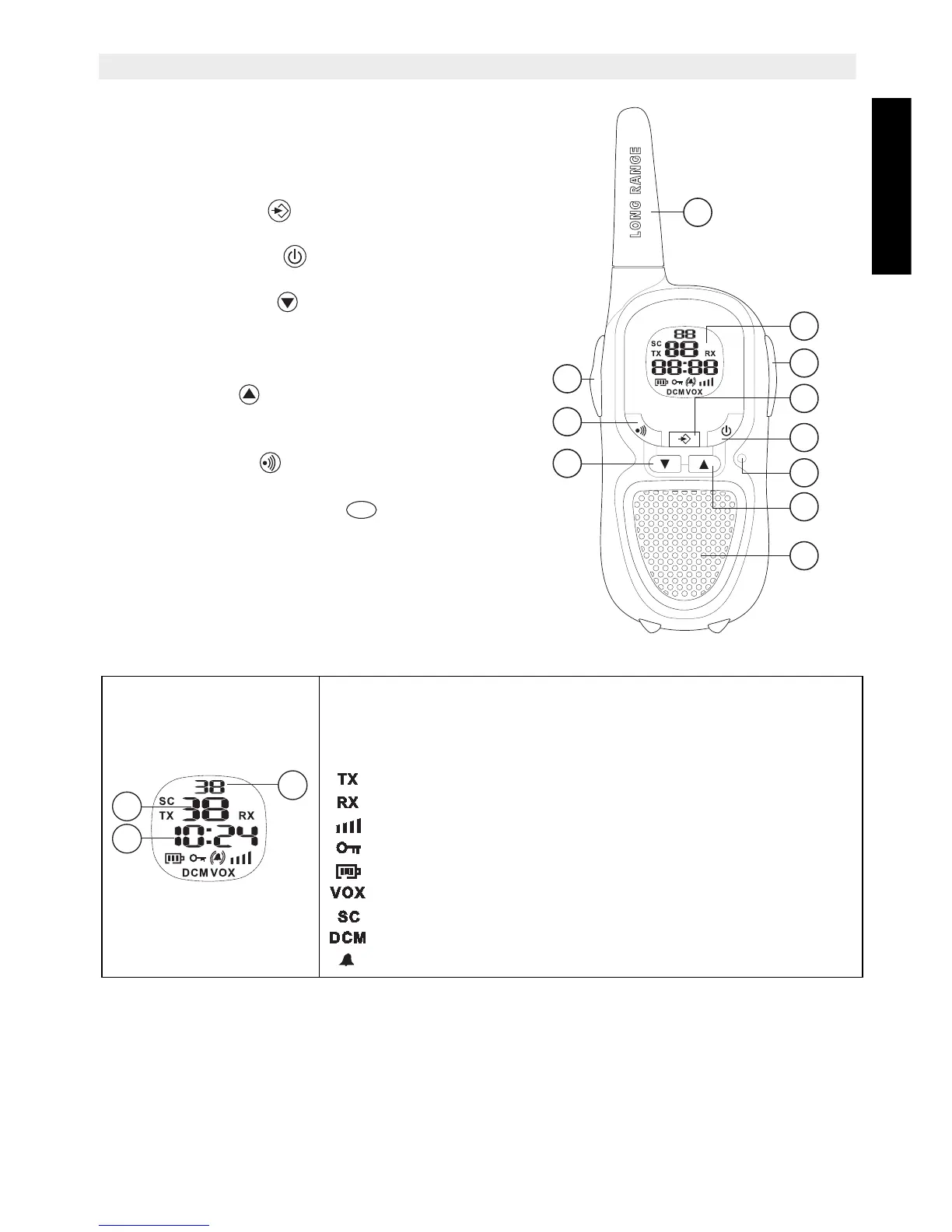

10 Buttons
1. ANTENNA
2. LCD Display
3. EARPIECE Connector
4. MENU button
– Enter menu.
5. ON/OFF button
6. MICROPHONE
7. DOWN button
– Decrease the speaker volume
– Select the previous item in the menu.
8. SPEAKER
9. UP button
– Increase the speaker volume
– Select the next item in the menu
10. CALL button
– Transmit a call tone
11. PUSH TO TALK button
– Press To Talk or release to listen
– Confirm a setting in the menu
11 LCD Display information
a. CTCSS code
b. Time
c. Channel number
TX icon - Displayed when transmitting a signal
RX icon - Displayed when receiving a signal
Speaker volume indicator
Lock icon - Displayed when the keypad is locked.
Battery charge level indicator
VOX icon - Displayed in Voice controlled (Vox) mode
Scan icon - Displayed when scan mode is active
Dual Scan icon - Displayed when dual scan mode is active
Call icon - Displayed when you are sending out a call tone
