Setup Guide TOPCON Apollo FSO - Single Liquid - Section Control
Doc. No. MAN0034 P 26 / 28
Revision. A Rev. Date 18/01/2022

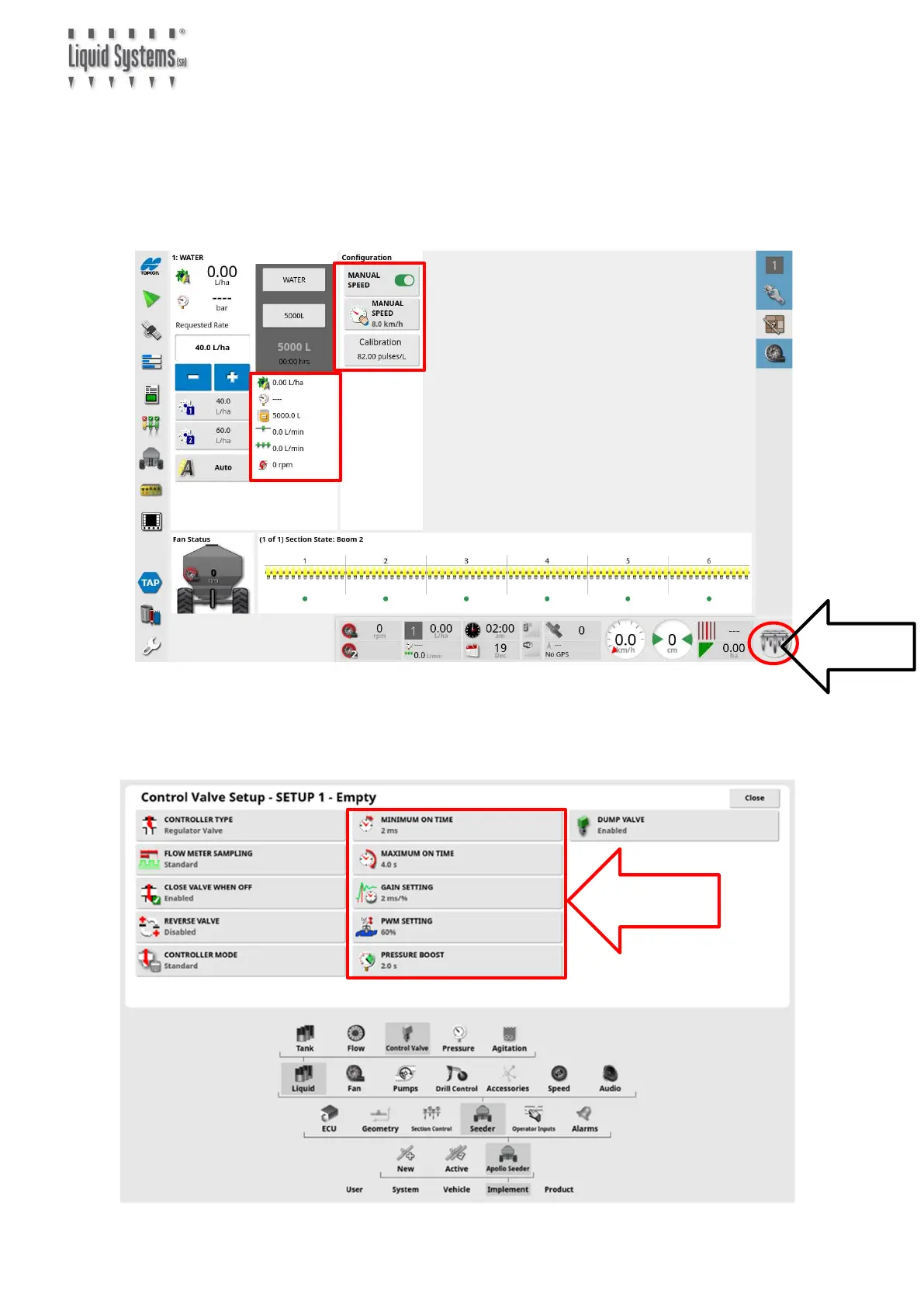

System Setup Verification Tests
Start the pump and perform a test to verify system set up. Select Manual Speed option and
enter a typical speed. Select a pre-defined application rate. Press Virtual Master Switch to
start the test. Vary speed and application rate to ensure control system is performing
correctly across the entire setup range. Press Virtual Master Switch to terminate the test.
If rate control is erratic, go to Control Valve setup screen and adjust control valve
parameters. DECREASE GAIN or PWM setting for smoother control, INCREASE for faster
response. Refer to Topcon Apollo Seeder Control Operator’s Manual for more
information.
VIRTUAL M
CONTROL VALVE
PARAMETERS
