Topcon Liquid Systems CM-40 - Physical Connection to Liquid Systems Module

Setup Guide TOPCON Apollo FSO - Single Liquid - Section Control
Doc. No. MAN0034 P 3 / 28
Revision. A Rev. Date 18/01/2022
Physical Connection to Liquid Systems module
Connect Liquid Systems (SA) module to the Apollo CM-40 & EM-24 ECUs with wiring looms
supplied. Liquid Systems (SA) looms available for single liquid set up with section control are:

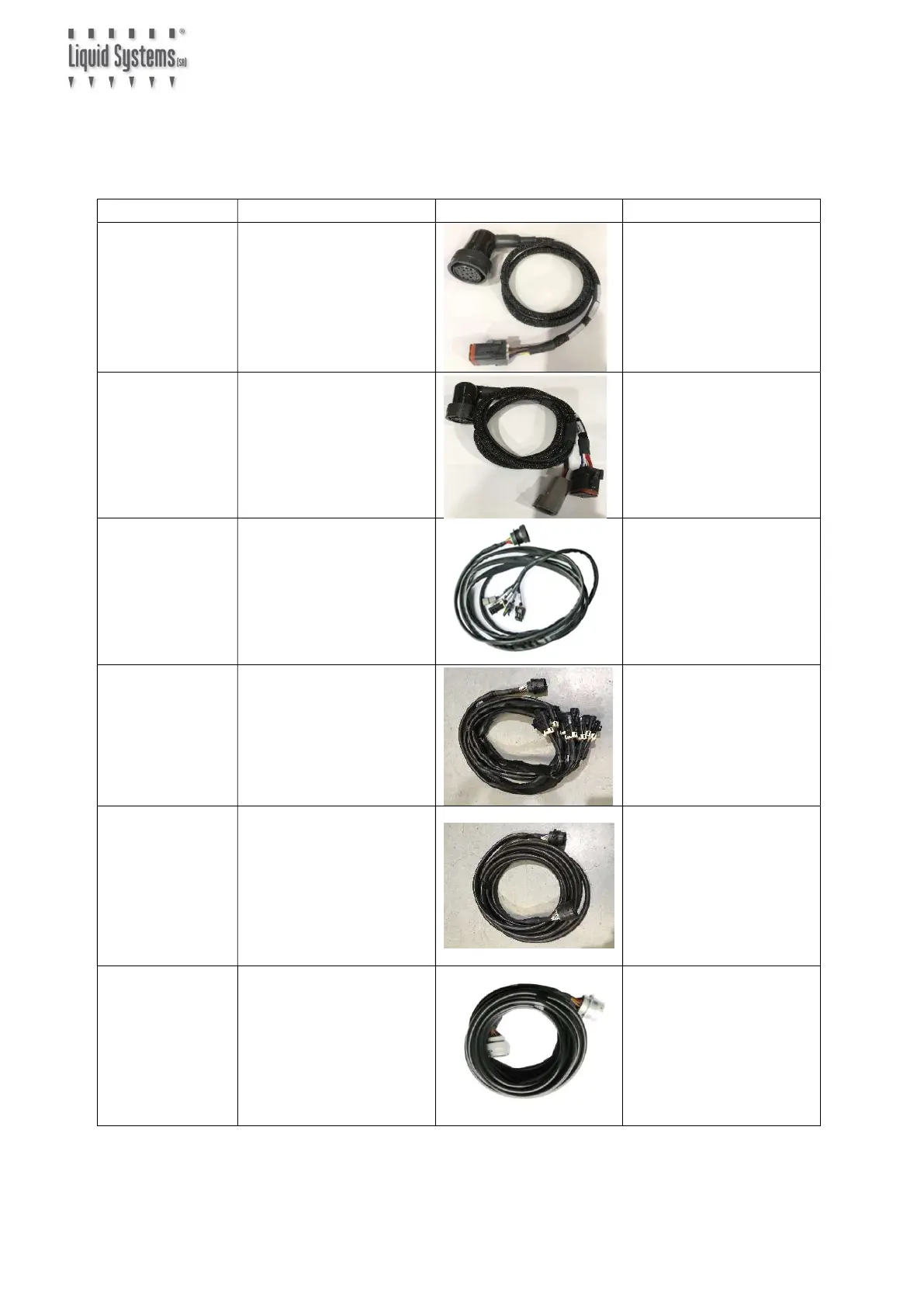

Part No. Name Description
TC-1013026-01 Apollo CM-40 Adapter
Loom
Adapt
e
r that c
onnects to
CM-40 ECU.
TC-1013025-01 Apollo EM-24 Section
Adapter Loom
Adapter that connects to
EM-24 ECU.
LL07011 Generic Module Loom
(5m)
Connect
s to individual
device connectors on LQS
pump module.
Connects to TC-1013026-
01 Adapter Loom via 23
pin circular connector.
LL07013
or
LL07023
Section Loom
(12 Sections, 6m)
Section Loom
(6 Sections, 6m)
Connects to individual
section valve connectors
on LQS section module.
Connects to TC-1013025-
01 Adapter Loom via 20
pin circular connector.
LL07014
(optional)
or
LL07021
(optional)
Section Loom Extension
(12 Section, 6m)
Section Loom Extension
(12 Section, 12m)
Extensions of
S
ection
Loom for when additional
length is required from
LQS section module to
EM-24 ECU.
LL07015
(optional)
or
LL07020
(optional)
Generic Module Loom
Extension (6m)
Generic Module Loom
Extension (12m)
Extensions of
G
eneric
Module Loom for when
additional length is
required from LQS pump
module to CM-40 ECU.
