Topcon VisiChart - Rev. C, 06;07

Rev. C, 06/07
3

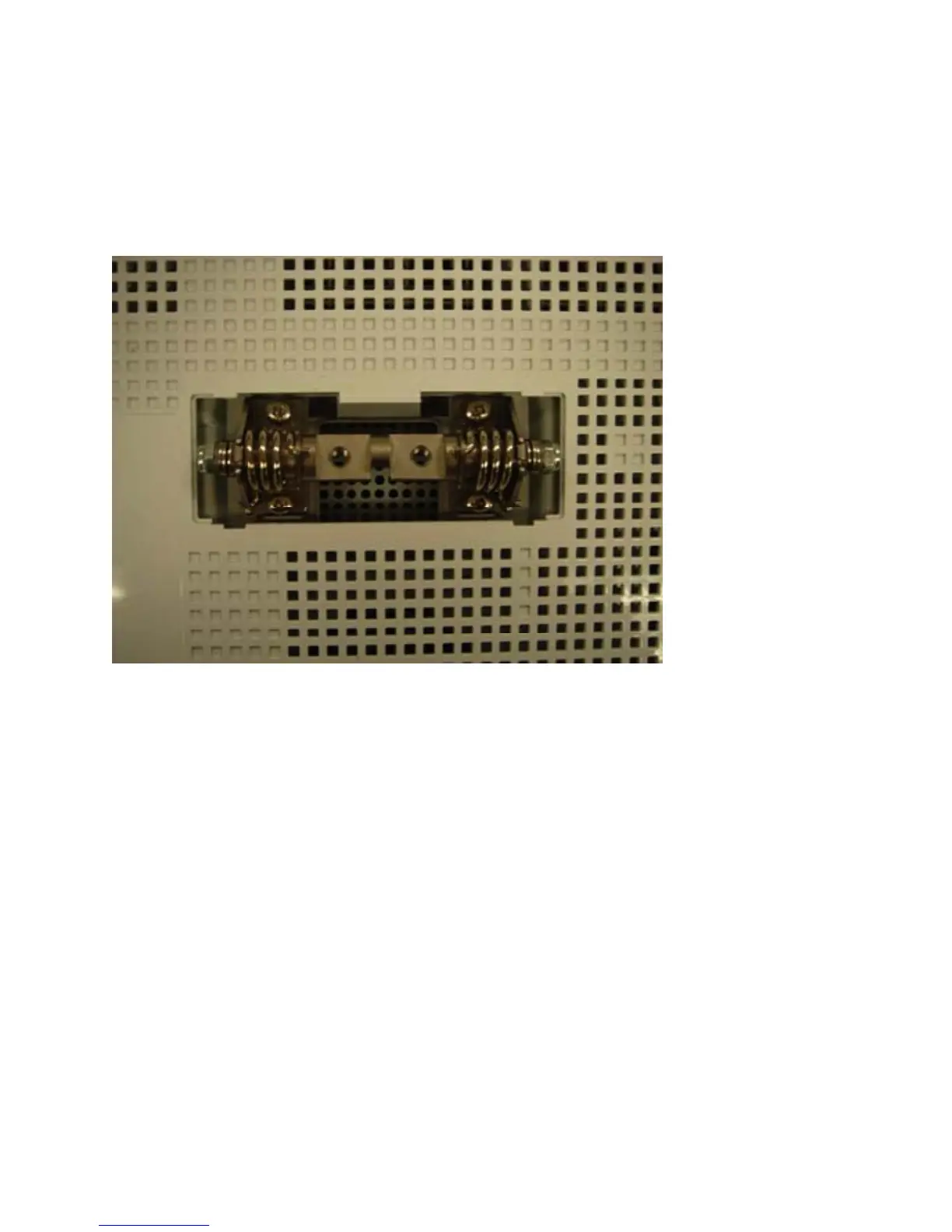

4. Tighten the four screws securely. (Figure 4)
5. Installation of the wall mount adapter plate is now complete. (Figure 5)
Note: For the wall mount bracket installation, a qualified installer should follow
the instructions which are included with the bracket.
Figure 1
Figure 2
