Rev. C, 06/07
9

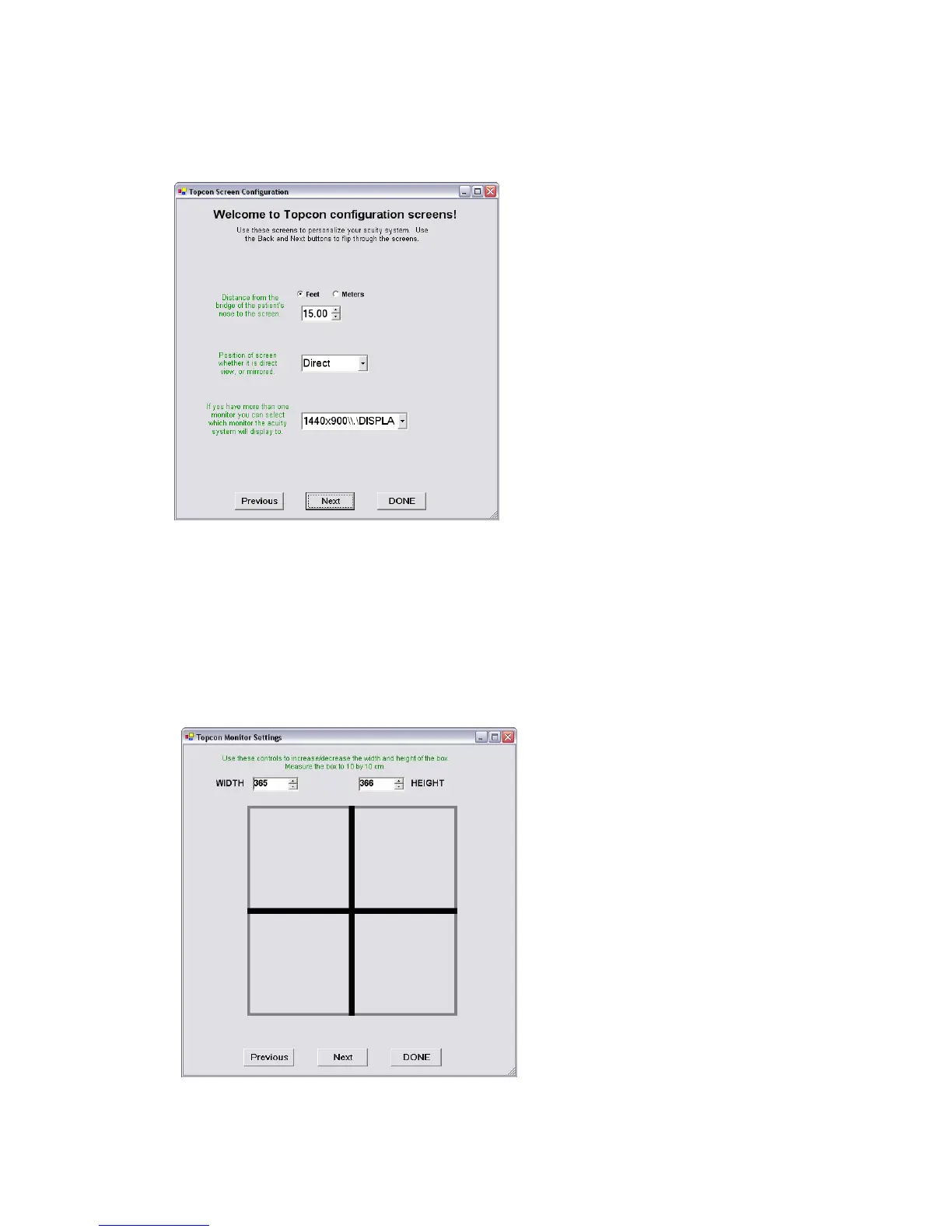

Configuring VisiChart
1. Plug the keyboard and mouse into the VisiChart before starting the system.
2. VisiChart will launch.
3. Press “?” on the keyboard to enter the configuration screens.
4. Set the distance, measuring from the bridge of the nose to the VisiChart. With a
mirrored room, measure from nose to mirror and the mirror to the VisiChart,
adding these numbers.
5. Set Direct or Mirror.
6. Click Next.
7. Set the 10 cm by 10 cm square.
To Next Page
