Topdon BT600 - Charging Test Analysis

2) Conrm the engine has been started and press [ENTER /
PRINT].
3) Ripple test will be conducted before the charging test starts,
the test result will be displayed in graph and will jump to the
next step after 5 seconds.
4) The tool will prompt you to increase the RPM to 2500 and
keep it for 5 seconds. Do as requested and press [ENTER /
PRINT] to continue.
EXIT
EXIT
14.37V 04mV
CHARGING TEST
RIPPLE TEST
CHARGING TEST
PLEASE START ENGINE, PRESS
ENTER TO CONTINUE.
INCREASE SPEED TO 2500 R/MIN ,
KEEP IT FOR 5 SECONDS . PRESS
ENTER TO CONTINUE
ENTER
ENTER

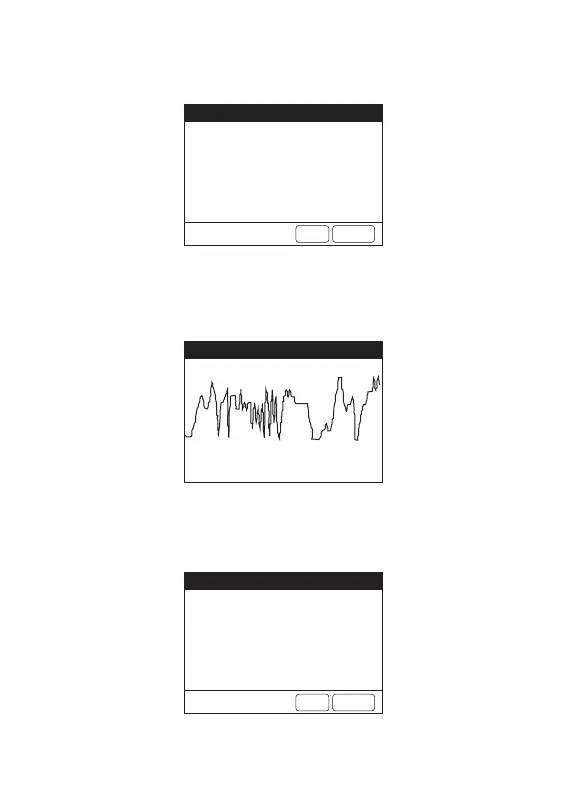

Figure 4.3.2
Figure 4.3.3
Figure 4.3.4
EN I 19
