Topdon T-Ninja Box - Power Source; Powering the Device; Accessories; Diagnostic and Data Cables

4
2.3 Power Source
The product does not have an independent power supply, you can power it up
via either of the followings ways:
• Use the included power adaptor
• Connect the device through the vehicle’s DLC
2.4 Accessories

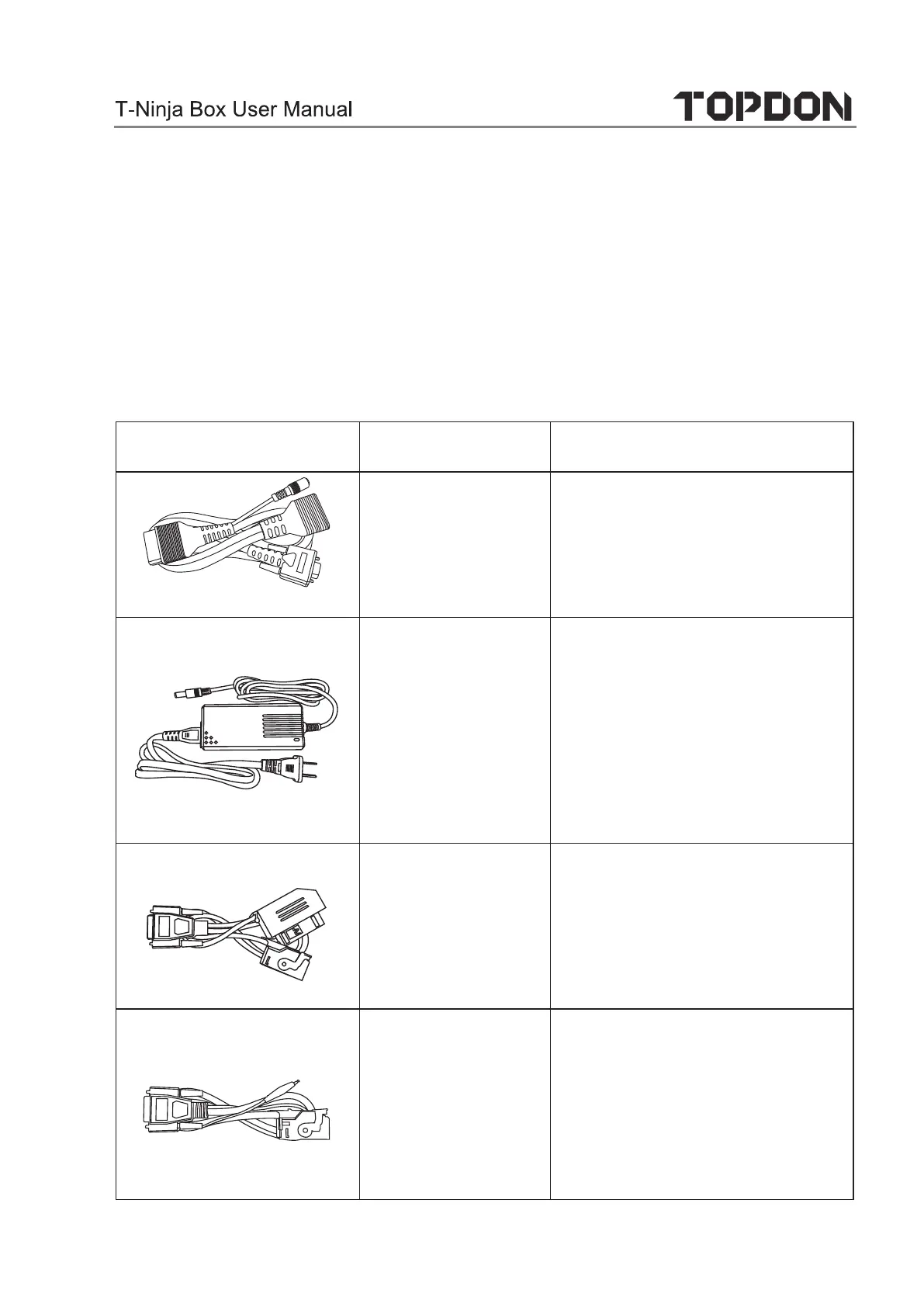

Photo Accessory Name Description
To connect vehicle DLC port,
VCI and programmer for
diagnosis.
Power adaptor
To provide power supply for
the programmer.
The fourth-
generation data
acquisition cable
After removing the vehicle
dashboard, connect
programmer, vehicle
dashboard, and the cable.
The fourth
generation of
EEPROM data
acquisition
cable (without
dismantling
dashboard)
Connect the programmer and
vehicle dashboard,and then
place the probe(the yellow
lead) to the designated area.
www.topdon.com
Main diagnostic
cable
