“Learn” Transmitter code
Make sure the control board of the opener is power on and in standby
mode (LED flashes “ ”(“- -”)).
Use For KD&AT Series Swing Gate Opener

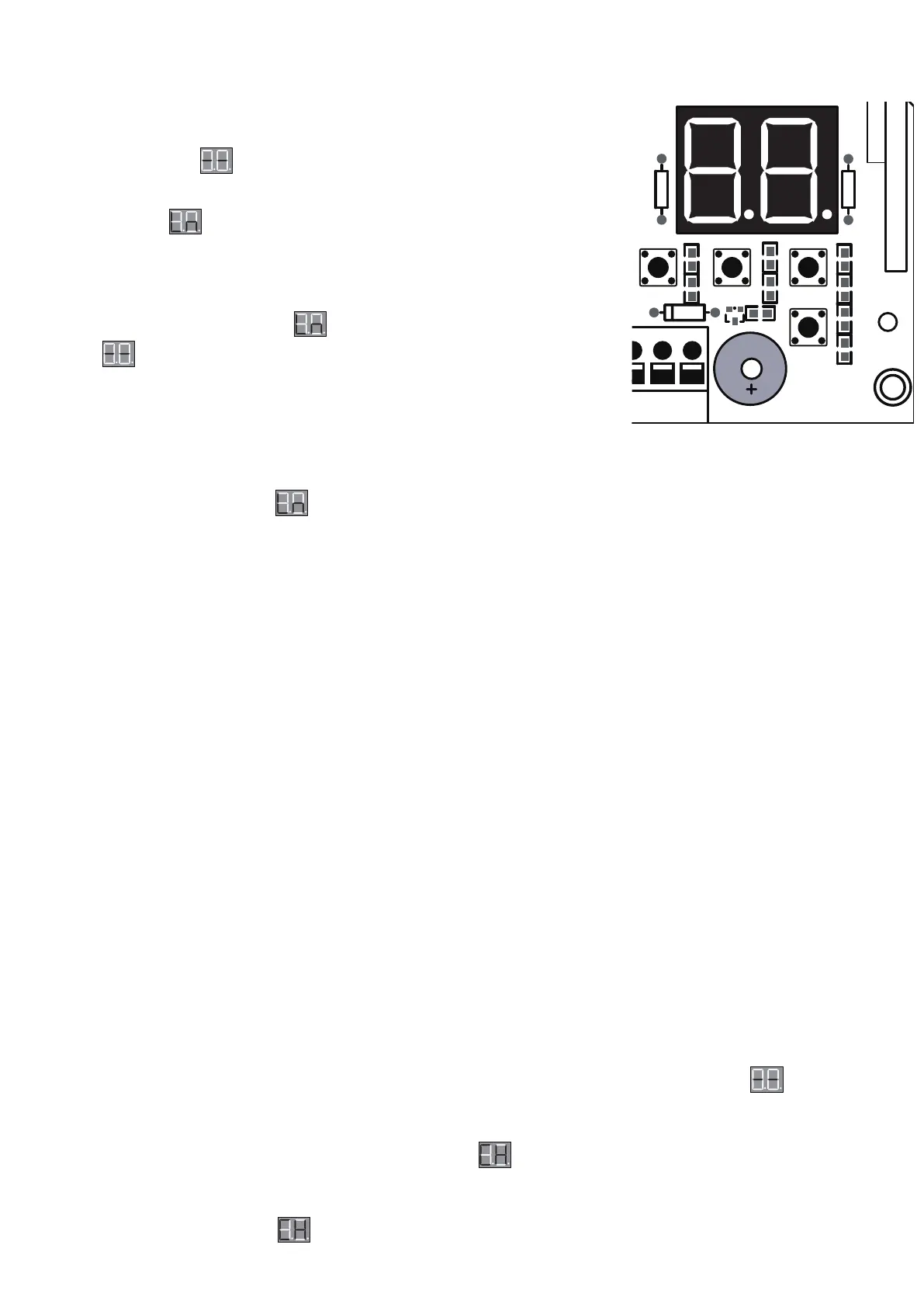

Control Board of KD
Series Swing Gate Opener
Step 1. Press and release “LEARN” button and then LED will
display “ ”(“Ln”).
Step 2. Press ”OK” button on the Keypad once to learn the
keypad. Once the keypad has been learnt successfully, LED
of the control board will flashes “ ”(“Ln”) for 2 seconds and then
flashes “ ” (“- -”) again.
Now you can use the factory default password “888888” to operate the
gate opener (Refer to the chapter “HOW TO OPERATE KD SERIES
SWING GATE OPENER” in manual).
NOTE: Once LED displays “ ”(“Ln”), you must press the “OK” button on the wireless keypad
within 1-2 seconds to learn the transmitter code, or you may have to start over.
19
20
+ BAT - - SOLAR + PHOTOCELL
O/S/C
INC FUNC DEC
LEARN
NOTE: The beeper of the keypad will beep at the press of any key. When you enter the entry code,
each button should be pressed within 1 second. If an error has occurred, the beep will sound for
2 seconds before returning to normal operation. Please try again.
How to Operate KD&AT Series Swing Gate Opener
Once the keypad has been learnt successfully, you can use default code to operate the gate.
Step 1. Press and release “PIN” button on the keypad and then enter the 6 digits entry code.(factory
default entry code is “888888”)
Step 2. Press the ”OK” button within 1 second after step 1 to move the gate.
1. When the gate stops in some positon and the opener is in standby mode, you can make it to
move via the following steps:
2. You can press the ”OK” button at anytime to stop the moving gate.(Entry code is not needed).
NOTE: If the Keypad is installed outside of the gate to open the gate, and no Keypad is installed
inside of the gate, we strongly recommend you set the auto-close function in circuit board in control
box. Refer to Installation and Operation Manual.
Programming the new entry code
For safety reason, you may change the factory default entry code or old entry code to your new
code but the keypad must be learnt successfully with control board of swing gate opener before
you try to change the entry code.
Make sure the control board of the opener is power on and in standby mode (LED flashes “ ”“(- -)”).
Step 1. Press and release “PIN” button on the keypad and then enter the 6 digits default or old entry
code. (factory default entry code is “888888”)
Step 2. Press and release “PIN” button on the keypad, “ ”(“CH”) will display on the LED of the
control board.
Step 3. Enter your 6 digits new entry code and press “PIN” button to store it. The entry code has been updat-
-ed successfully while “ ”(“CH”) flashes for 2 seconds on LED of the control board.
