5.4- COMMAND DEVICES
According to the different type of installations, the actuators can be driven by the following control devices:
1) MANUAL PUSH-BUTTON:
THE CONTROL DEVICES USED TO DRIVE THE ACTUATOR MUST ASSURE THE SAFETY CONDITIONS
FORESEEN BYTHE LAWS IN FORCE IN THE COUNTRYOF USE.
TOPP microprocessor control units (e.g.: Mod. TF, etc.) controlling the single actuator or more than one
actuator simultaneously by means of one or more manual pushbuttons, an infrared remote control or a 433
Mhz radio control.
TO ASSURE A CORRECT OPERATION OF THE ACTUATOR, THE COMMAND AND FEEDING UNITS
EVENTUALLY USED HAVE TO PROVIDE POWER SUPPLY TO THEACTUATOR FOR MAX.120sec.
2) CONTROLAND FEEDING UNIT:OPTIONAL:
To these control units, it is possible to connect rain sensors (RDC - 12V), wind sensor (RW) and brightness
sensor.
BEFORE OPERATING THE ACTUATOR, THE USER MUST COMPULSORILY VERIFY THAT NEAR AND/OR
UNDER THE WINDOW THERE ARE NOT ANY PERSON, ANIMAL AND THING WHOSE SAFETY MAY BE
ACCIDENTALLY JEOPARDISED(SEE PAR.4).
Bipolar switch button with central OFF position, with biased-off switch;
16
INSTALLATION AND USE INSTRUCTIONS
2) Open the window manually.
Should it be necessary to close the window manually, due to power supply failure or mechanism block,
follow these instructions:
open or
IT IS COMPULSORY TO PADLOCK THE MAIN SWITCH OF THE DISCONNECTION DEVICE INSTALLED ON
THE MAINS IN ORDER TO AVOID ANY UNEXPECTED START. IF THE MAIN SWITCH CANNOT BE
PADLOCKED, IT IS COMPULSORYTOPLACEASIGN FORBIDDING THE ENABLING.
nut "D1" and by extracting it from the bracket "S1" ;
BEFORE PERFORMING ANY TYPE OF TRIPPING ON THE ACTUATOR AND ON THE WINDOW, IT IS
COMPULSORY TO DISCONNECT THE POWER SUPPLY OF THE ACTUATOR AND TO PUT ON “0” THE
EVENTUAL SWITCHES OF THE CONTROL
5.5- EMERGENCY PROCEDURES
DEVICES.

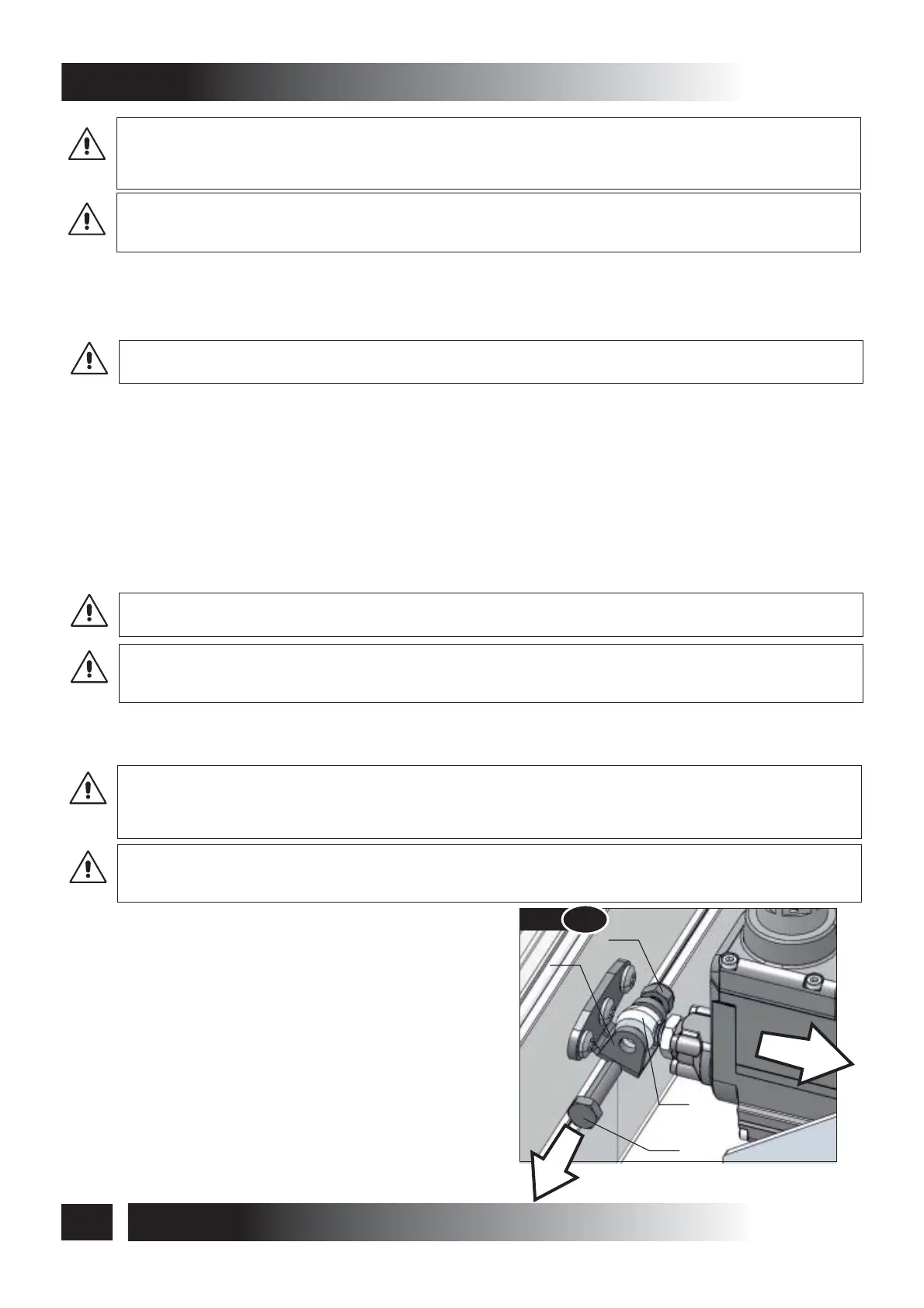

1) - Act on the screw "V1" by unscrewing theFig. 7
T1
D1
V1
S1
Fig.
7
5- INSTALLATION
S80
BEFORE MAKING ANY ELECTRICAL CONNECTIONS ON THE ACTUATOR, MAKE SURE THE POWER
SUPPLY CABLE IS NOT DAMAGED. IF THE CABLE IS DAMAGED, THEN IT MUST BE REPLACED BY THE
MANUFACTURER THROUGH THE TECHNICALASSISTANCE SERVICE OR BYTECHNICAL OPERATORS.
TO ASSURE AN EFFICIENT SEPARATION FROM THE MAINS, IT IS COMPULSORY TO INSTALL UPSTREAM
OF THE DEVICE A TEMPORARY BIPOLAR SWITCH (PUSHBUTTON) OF APPROVED TYPE. UPSTREAM OF
THE COMMAND LINE, IT IS COMPULSORY TO INSTALL AN UNIPOLAR MAIN SWITCH WITH OPENING OF
CONTACTS OFAT LEAST3mm.
Perform the electrical connections as described in Chapter 11.
