Installation Instruction
3

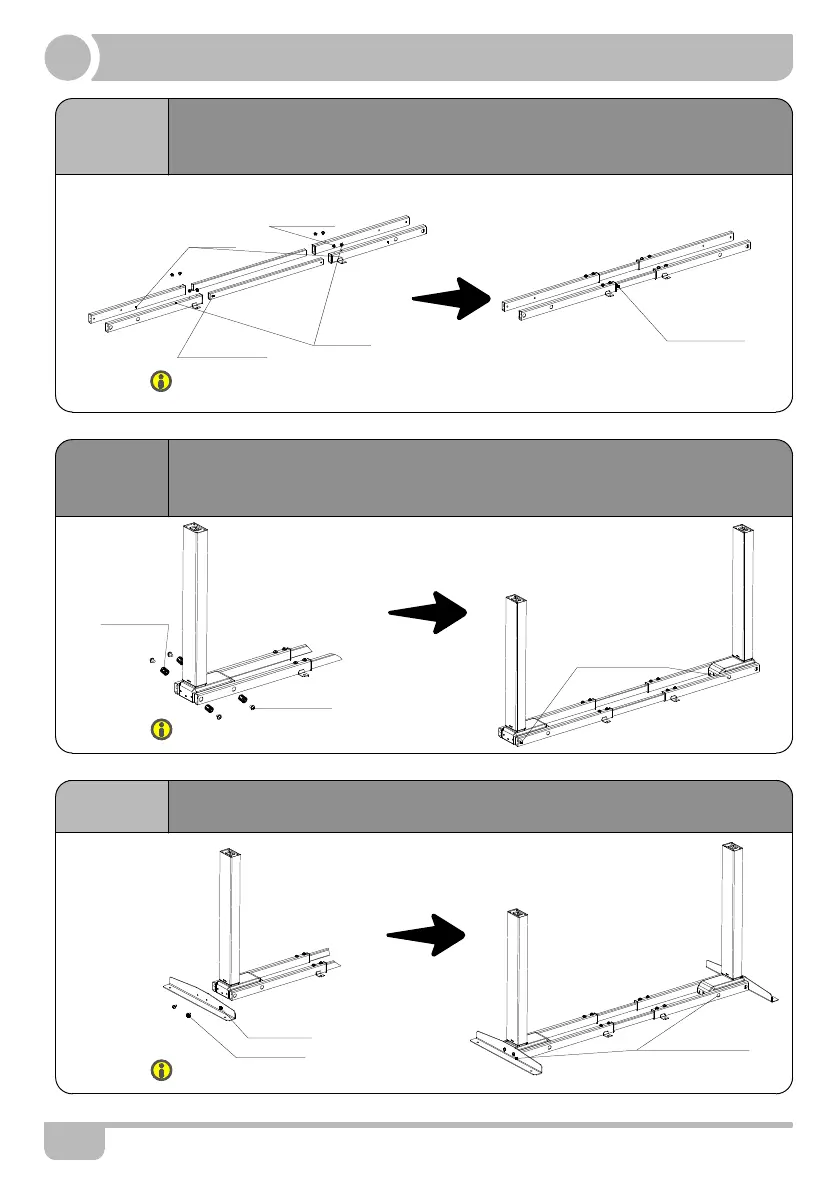

STEP 1
· Set the right tube and left tube flat.
· Insert the extension tube to the right tube and left tube as is shown in the
picture, pre-tighting the screws.
Avoid excessive tightening screws
STEP 2
Avoid excessive tightening screws
STEP 3
· Mounting the side bracket on the each side of column.
· Fasten the screws.
Connecting rod
Side bracket
M6x10 screw
Fasten the screws
Left Tube
Right Tube
Extension Tube
M6*8 Screw
M6*10 Screw
Avoid excessive tightening screws
Fasten the screws
· Insert the columns into the place which is between the left and right tubes
respectively, line up the holes on the frame and column.
· Pre-tighten the screws.
To Next Page
