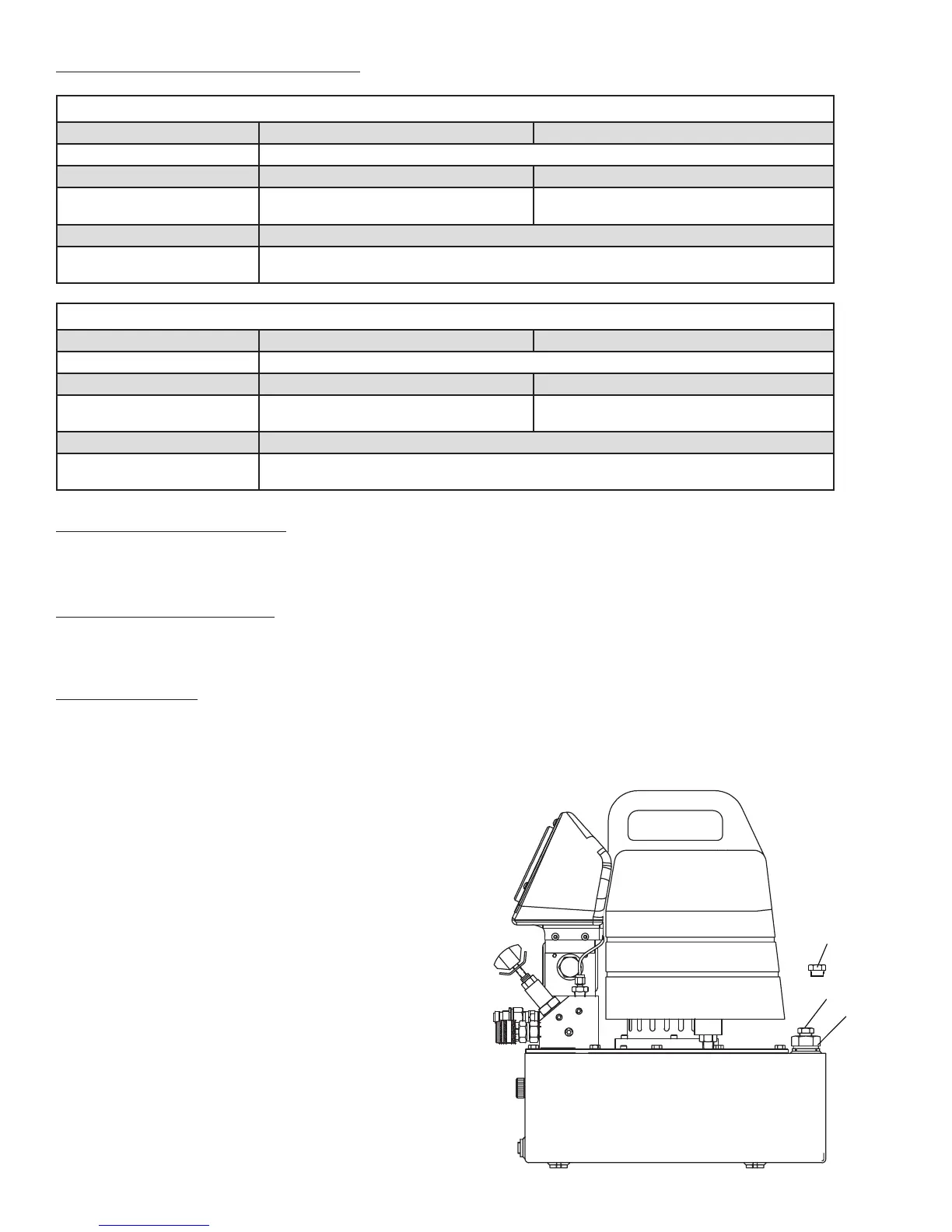

3.0 TECHNICAL SPECIFICATIONS
EP500 Electric Torque Wrench
Voltage 115V 230V
Operating Pressure 10,000 PSI (700kg/cm
2
)
Electrical Power Source 20 Amps 115V Grounded 50/60 Hz 10 Amps 220V Grounded 50/60 Hz
Motor Rating 1.125 Hp Single Phase
18 Amps @ 10,000 psi (700kg/cm
2
)
1.125 Hp Single Phase
10 Amps @ 10,000 psi (700kg/cm
2
)
Flow Rate 554 cu. in./ min. @ 1,100 psi, 46 cu. in / min. @ 10,000 psi
Maximum Operating
Temperature
170F - (65C)
EP1000 Electric Torque Wrench
Voltage 115V 230V
Operating Pressure 10,000 PSI (700kg/cm
2
)
Electrical Power Source 20 Amps 115V Grounded 50/60 Hz 10 Amps 220V Grounded 50/60 Hz
Motor Rating 1.5 Hp Single Phase
18 Amps @ 10,000 psi (700kg/cm
2
)
1.5 Hp Single Phase
10 Amps @ 10,000 psi (700kg/cm
2
)
Flow Rate 575 cu. in./ min. @ 1,100 psi, 55 cu. in / min. @ 10,000 psi
Maximum Operating
Temperature
170F - (65C)
4.0 WORKING PRESSURE
The pump’s maximum working pressure is 10,000 PSI (700kg/cm
2
). Make sure that all hydraulic equipment such as
rams, hoses, etc. used with this pump are rated at 10,000 PSI (700kg/cm
2
) operating pressure.
4.1 INSTALL VENT PLUG
Remove SHIPPING PLUG (A) and install VENT PLUG (B) into cover plate.
4.2 ADDING OIL
Remove OIL FILLER CAP (C) and add TorcUP Hydraulic Oil into reservoir. Oil level should not exceed 1” from the
reservoir cover.
*As a “rule of thumb” oil should be visual in site window when
the unit is powered down and all connected tools or cylinders
are retracted.
C
B
N O T E :
V e n t P l u g / O i l F i l l L o c a t i o n i s a p p l i c a b l e t o t h e
1 . 5 , 2 . 5 , 5 & 1 0 g a l l o n r e s e r v o i r s .
O n e g a l l o n m o d e l s u t i l i z e t h e d r a i n p l u g f o r
r e m o v i n g a n d a d d i n g o i l . V e n t p l u g a r e p r e - i n s t a l l e d
u n d e r t h e s h r o u d .
A
