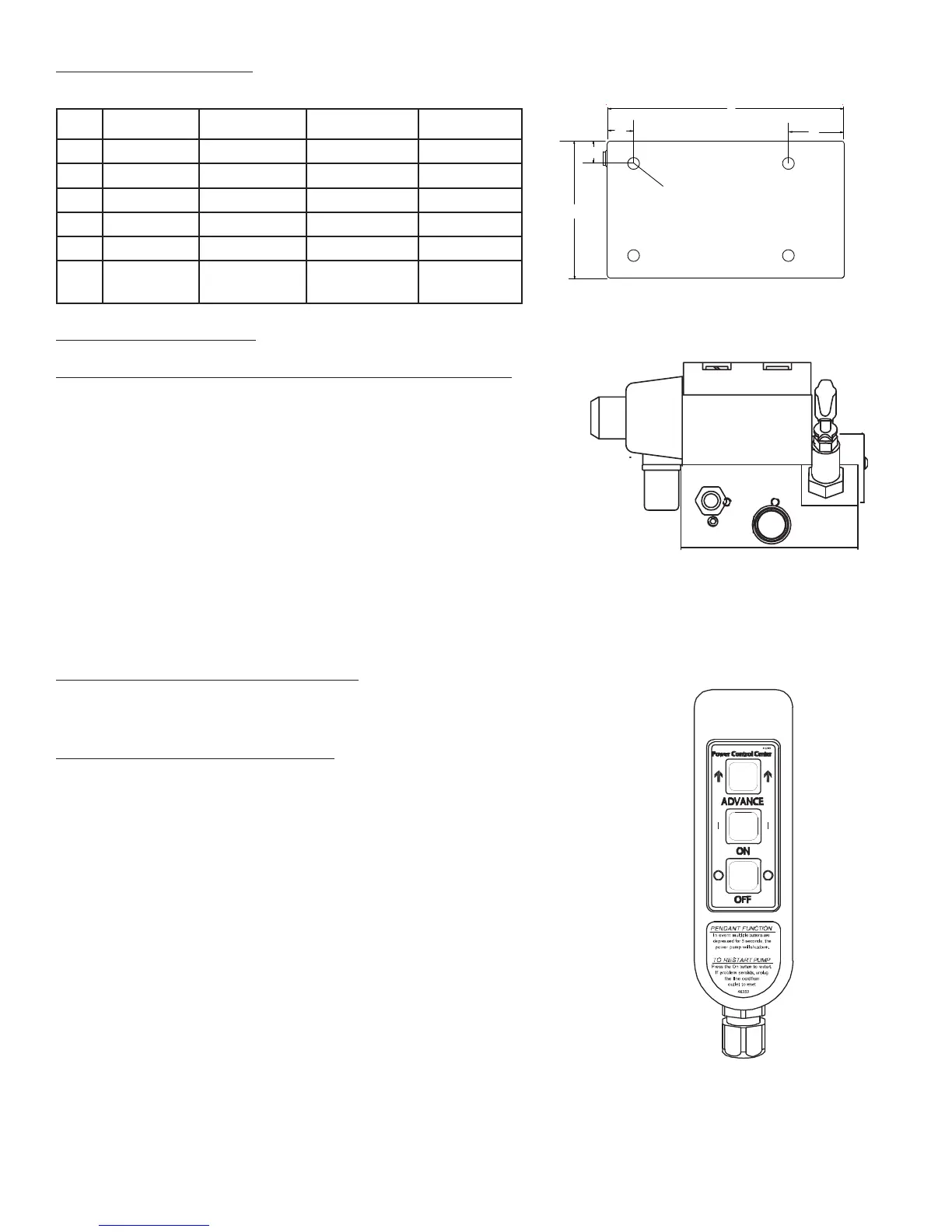

4.7 PUMP MOUNTING
Refer to the chart for mounting dimensions to secure the pump to a xed surface.
1 gal. (4L) 1.5 gal.(6L) 2.5 gal.(10L) 5 gal. (20L)
A
11 15.13 17 19.6
B
0.56 1.68 2.75 4.69
C
0.56 3.57 4.37 5.03
D
1.16 1.43 1.93 2.93
E
8.19 8.75 9.75 11.75
F
1/4-20unc
(4 places)
1/4-20unc
(4 places)
1/4-20unc
(4 places)
1/4-20unc
(4 places)
5.0 CONTROL VALVES
2-Postion – 4 Way Solenoid Valve for Hydraulic Torque Wrenches.
• To Advance......depress the Advance Switch
• To Retract.........release advance switch to Retract Tool.
5.1 POWER CONTROL SWITCHES
Remote pendant.
Congured with motor control pendant:
ADVANCE = Press and hold switch to turn motor on.
Energizes ADV. Coil.
ON = Press switch to turn motor on.
OFF = Press switch to turn motor off.
NOTE: In the event multiple buttons are depressed for longer than 5 seconds, the unit is programmed to shut
down. To restart, you will need to depress the motor “ON” to continue, or unplug / re-plug the unit into power
supply, then depress the motor “ON” to continue.
A
B
C
D
E
F
2 Position - 4 Way Solenoid
Motor/Valve Control Pendant
