Torit Downflo SDF-6 - 1.0 Introduction; 1.1 Operational Explanation

6
Donaldson Company, Inc. © 1995
1.1 Operational Explanation
(See Figure 2 Operational Schematic)
1.1.1 Normal Operation
During normal operation, contaminated air
enters through the top inlet area and passes
down and through the filter elements. Dust is
collected on the outside surface of the filter
elements. The clean, filtered air flows through
the center of the filter elements and into the
clean air plenum, where it exits through the
clean air outlet.
1.0 Introduction
The Torit
®
Downflo
®
model SDF dust collector
is used for the collection of airborne dust and
particulate. The model SDF collector provides
highly efficient, continuous, on-line dust
collection.
The Torit-Built
®
filter elements are the heart of
the model SDF dust collector. These filter
elements help ensure that clean air is returned to
the plant environment.
Technical and field support are always available
from your local Torit representative and
distributors.
Normal Operation
Filter Element Purge

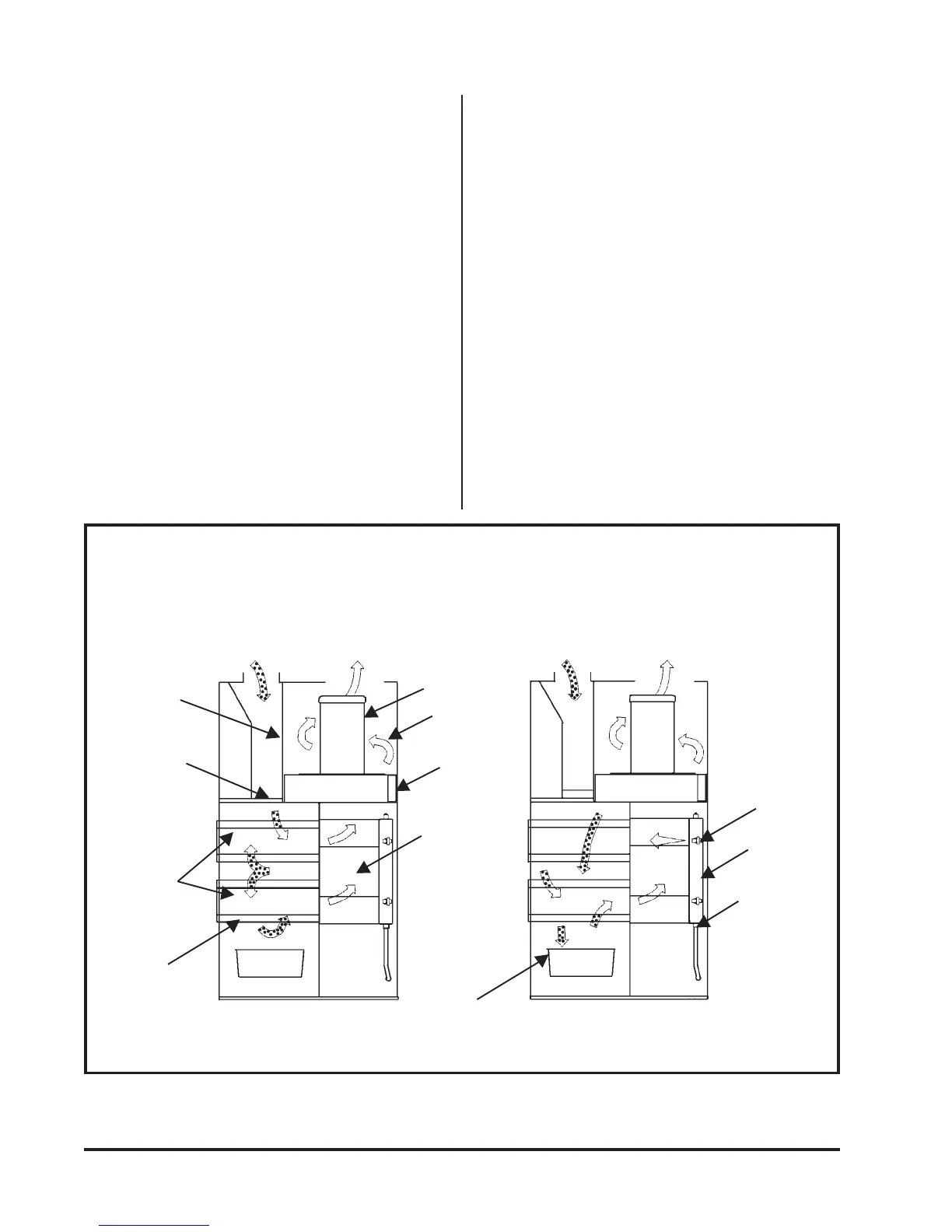

Figure 2
Operational Schematic
Dirty Air Inlet
Clean Air Outlet
Dirty Air Plenum
Deflector
Filter
Elements
Filter Section
Dirty Air Inlet
Clean Air
Plenum
Fan Outlet
Silencer
Section
Blower Pack
Compressed
Air Inlet Fitting
(Purge Air)
Compressed
Air Manifold
Diaphragm
Cleaning Air
Valve
