5. Use one hand to hold on to the spindle lock arm, and then
use a 5 mm hex wrench to remove the spindle lock arm
pivot screw.

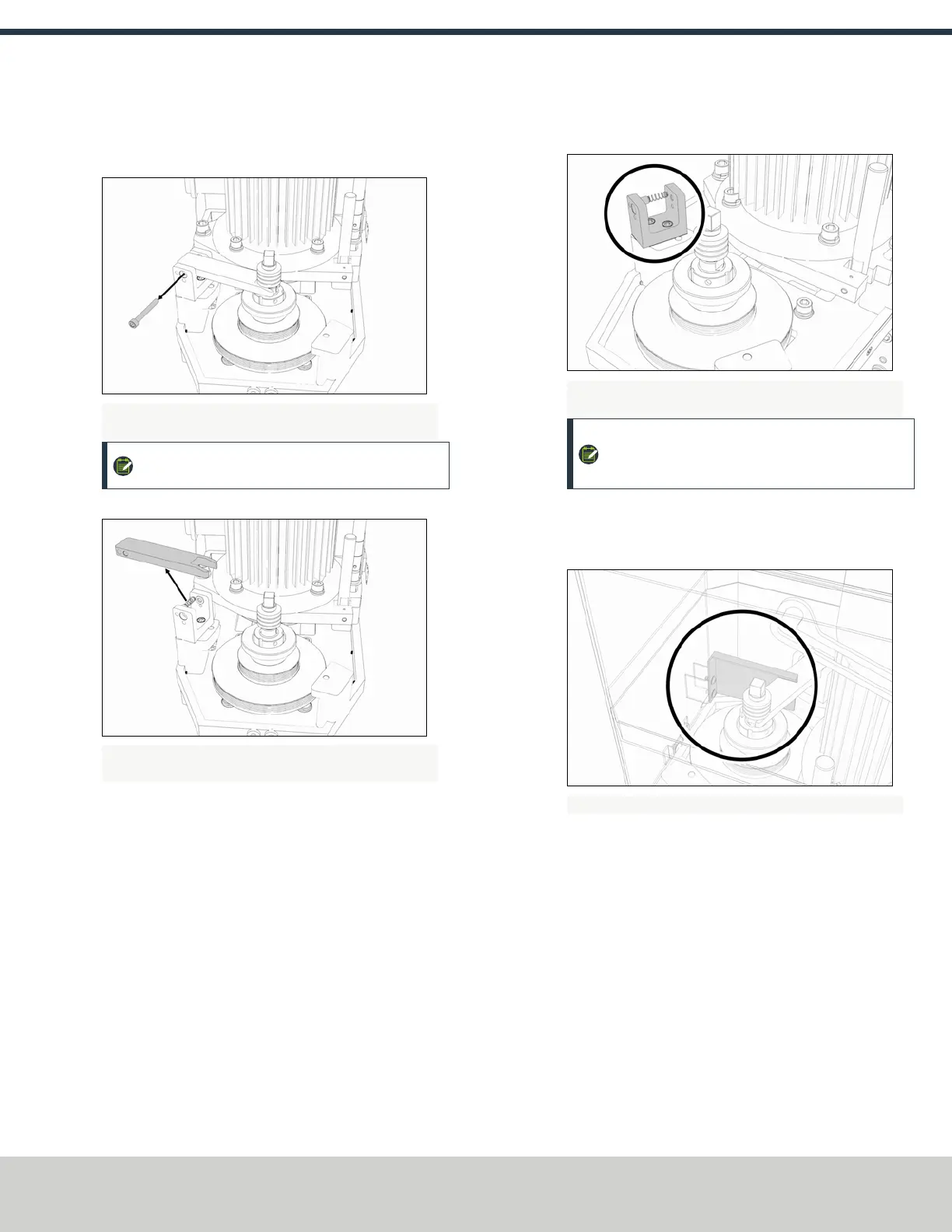

Figure 2-1: Spindle lock arm pivot screw removed from the
original drawbar assembly.
NOTE: The spindle lock arm assembly contains
spring-loaded hardware.
6. Carefully remove the spindle lock arm.
Figure 2-2: Spindle lock arm removed from the original
drawbar assembly.
7. Use a 5 mm hex wrench to remove the spindle lock base and
components.
Figure 2-3: Spindle lock base from the original drawbar
assembly.
NOTE: Keep all components for future use. The
drawbar, drawbar bushing, and spindle lock are all
required to operate without a Power Drawbar.
8. Use a clean cloth to wipe down all exposed drawbar
mounting surfaces inside the spindle motor cabinet.
9. Remove the spindle lock arm on the spindle door.
Figure 2-4: Spindle lock arm on the spindle door.
Assemble the Power Drawbar
1. Identify the drawbar that you set aside in "Disassemble the
Original Drawbar" (on the previous page).
2. Remove the drawbar bushing from the drawbar, and set it
aside.
3. Put Anti-Seize (provided) on the bottom of the drawbar
head.
4. Identify the eight spring washers provided.
©Tormach® 2018
Specifications subject to change without notice.
Page 4 tormach.com
TD10541: Owner's Guide: 770M® Power Drawbar (0618A)
