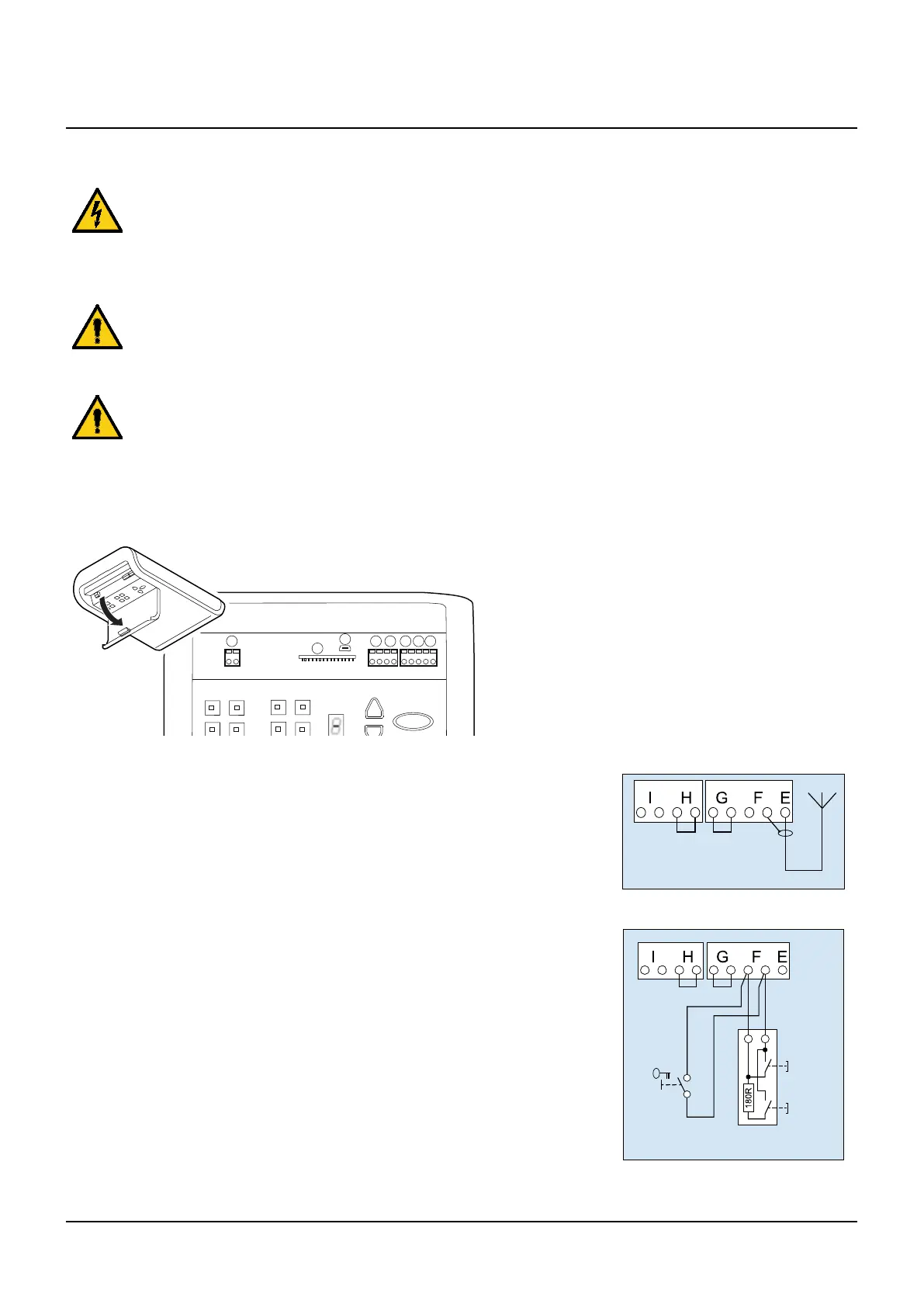

36 W-600
Installation
Connect the garage door operator to electrical power and controls
Warning high voltage:
• Pull out the main plug from the mains socket before you open the cover of the drive head.
• Do not connect any live leads. Only connect potential-free buttons and potential-free relay
outputs.
• After connecting all cables, connect the cover to the drive head again.
Warning:
Before using the operator for the rst time, it must be tested to make sure that it is working properly
and safely (see section on Maintenance/Checks).
Warning:
Danger by optical radiation!
If you look at an LED for an extended period from a short distance, this can cause optical binding.
Sight is then severely restricted for a short time. This can result in serious or fatal injuries.
You must not look directly at an LED.
I
UP / START
K
H G
F E
P
J
1. External antenna
Lead the antenna upward through the housing recess.
When using an external antenna, the shield must be placed on the right
adjacent terminal (F).
E - Connector for antenna
2. External pulse generator
F - Connector for external impulse generator (accessories, e.g. key
switch or code keypad)
