Tornado 99720 BD 26/14 User Manual



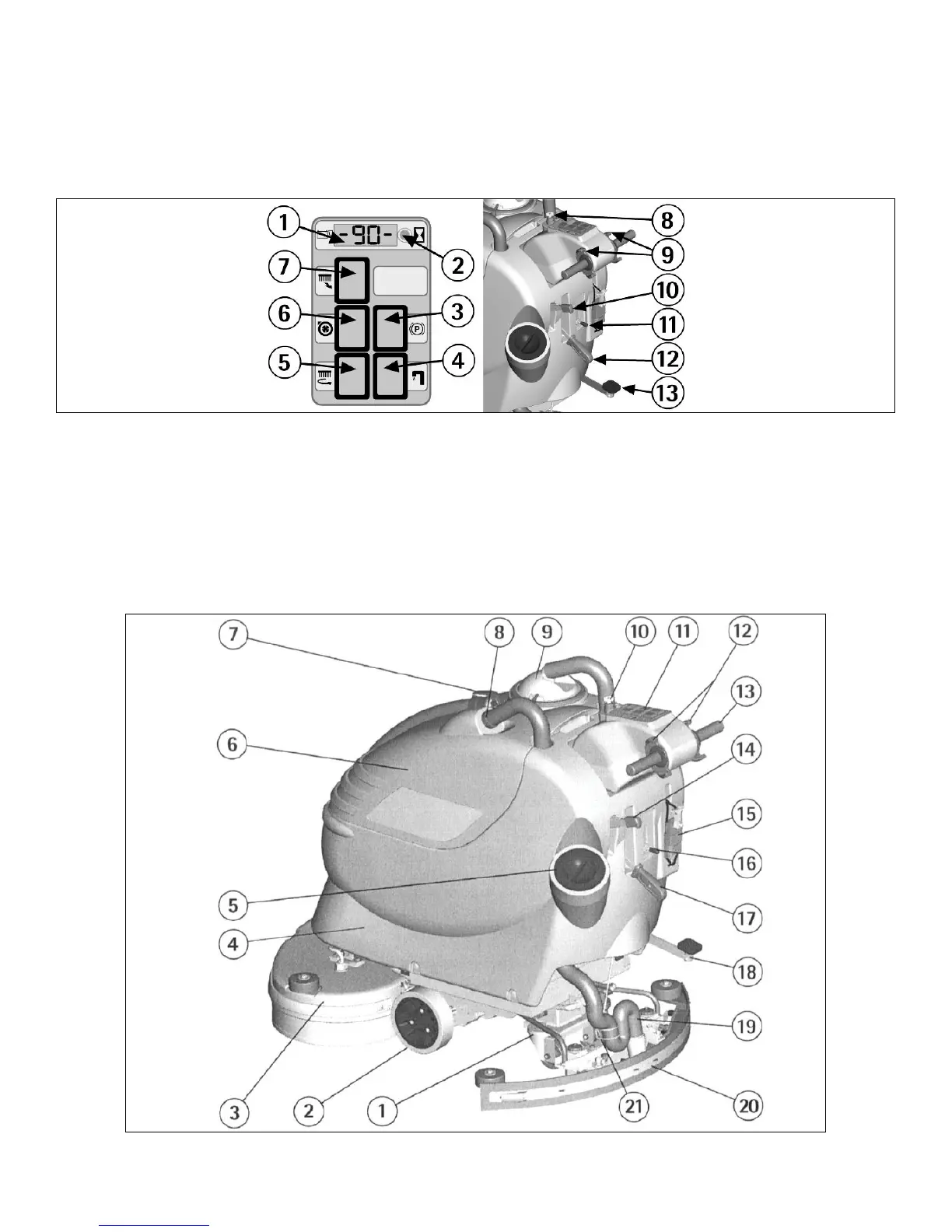

INSTRUMENT BOARD AND CONTROLS
1. DISPLAY: CHARGE LEVEL, BATTERIES/HOUR METER
2. PUSH BUTTON: VISUALIZATION HOUR METER (DISPLAY)
3. SIGNAL LAMP: BRAKE ON
4. SIGNAL LAMP: SOLUTION VALVE OPEN
5. BRUSH MOTOR SWITCH
6. SUCTION MOTOR SWITCH
7. PUSH BUTTON: BRUSH RELEASE
8. SWITCH WITH KEY
9. DRIVE CONTROL LEVERS
10. PARKING / EMERGENCY BRAKE LEVER
11. SOLUTION VALVE LEVER
12. SQUEEGEE LIFTING LEVER
13. BRUSH BASE LIFTING PEDAL
MACHINE
1. CASTER WHEELS
2. WHEELS
3. BRUSH BASE
4. SOLUTION TANK
5. SCREW CAP FOR INLET DETERGENT SOLUTION
6. RECOVERY TANK
7. PLUG EXHAUST HOSE RECOVERY TANK
8. INLET OPENING SQUEEGEE HOSE
9. SUCTION COVER
10. SWITCH WITH KEY
11. INSTRUMENT BOARD
12. DRIVE CONTROL LEVERS
13. HANDLE BARS
14. PARKING / EMERGENCY BRAKE LEVER
15. BATTERY CONNECTOR
16. SOLUTION VALVE LEVER
17. SQUEEGEE LIFTING LEVER
18. BRUSH BASE LIFTING PEDAL
19. SQUEEGEE HOSE
20. SQUEEGEE ASSEMBLY
21. SPRING SQUEEGEE HOSE GUIDE

Tornado 99720 BD 26/14 Specifications

General

Brand	Tornado
Model	99720 BD 26/14
Category	Floor Machine
Language	English
