Cleaning the Filter
The post-motor HEPA filter is located in the Powerfoot of your vacuum
cleaner. It should be checked often, and cleaned when the post-motor
HEPA filter becomes dirty.

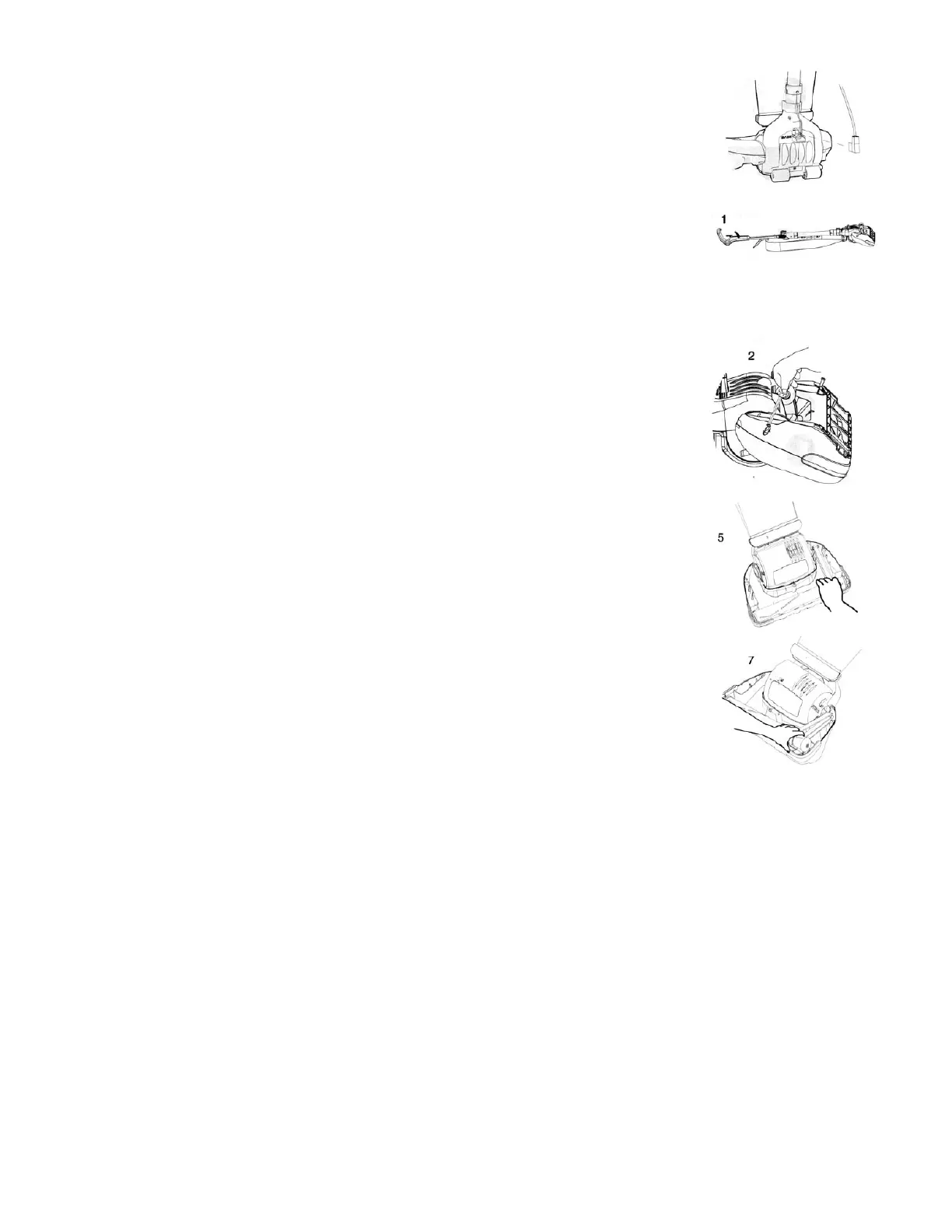

1. To clean post-motor HEPA filter, remove the screw with a Phillips head
screwdriver.
2. Lift out filter cover.
3. Remove post-motor HEPA filter and blow out with air.
4. Reinstall post-motor HEPA filter.
5. Replace filter cover by sliding in the two tabs at the top of the filter
cover and centering over the screw hole.
6. Replace screw.
Cleaning the Rotating Cleaning Brush/Replacing the Drive Belt
Check the Rotating Cleaning Brush and Drive Belt regularly for wear or
damage. Keep the Rotating Cleaning Brush ends free of string, hair, and
carpet fibers. These can become entangled and reduce the vacuum’s
cleaning effectiveness.
NOTE: The Rotating Cleaning Brush can most often be cleaned without
removal from the vacuum. If there is an excessive amount of hair and
debris, remove the Rotating Cleaning Brush for proper cleaning.
1. Unplug the vacuum and turn face down on a flat surface.
2. Remove all 3 screws from the bottom of the Powerfoot.
3. Grip both the Top Cover and base while turning unit back over. Lift off
Top Cover.
4. Check Drive Belt. If it is broken or damaged, remove Rotating Cleaning
Brush and replace Drive Belt.
WARNING: To avoid electrical shock or injury from moving parts, always
turn OFF the Power Switch and unplug the Power Source Plug before
performing maintenance or trouble shooting. Always unplug by grasping
the Power Source Plug; NEVER pulling on the Power Cord to unplug.
5. To remove the Rotating Cleaning Brush, pull the right side of the
Rotating Cleaning Brush toward the front of the Powerfoot as you lift
slowly.
6. Clean off Rotating Cleaning Brush as necessary.
7. Place existing or new Drive Belt over Rotating Cleaning Brush and the
motor shaft. Insert the end cap pin on the left of the Rotating Cleaning
Brush into the slot on the Powerfoot and slide the end cap pin on the right
end of the Rotating Cleaning Brush in to the slot in the Powerfoot and
lower until it clicks into place.
8. Make sure the Furniture Protection Guard is still intact.
9. Align the 3 tabs on the Top Cover with the 3 slots in the Powerfoot.
Press into place, making sure the Furniture Protection Guard is on the
outside.
10. Turn vacuum cleaner face down.
11. Reinstall the 3 screws beginning with the center screw.
