Tornado Floorkeeper 20 PD/99120B User Manual

10

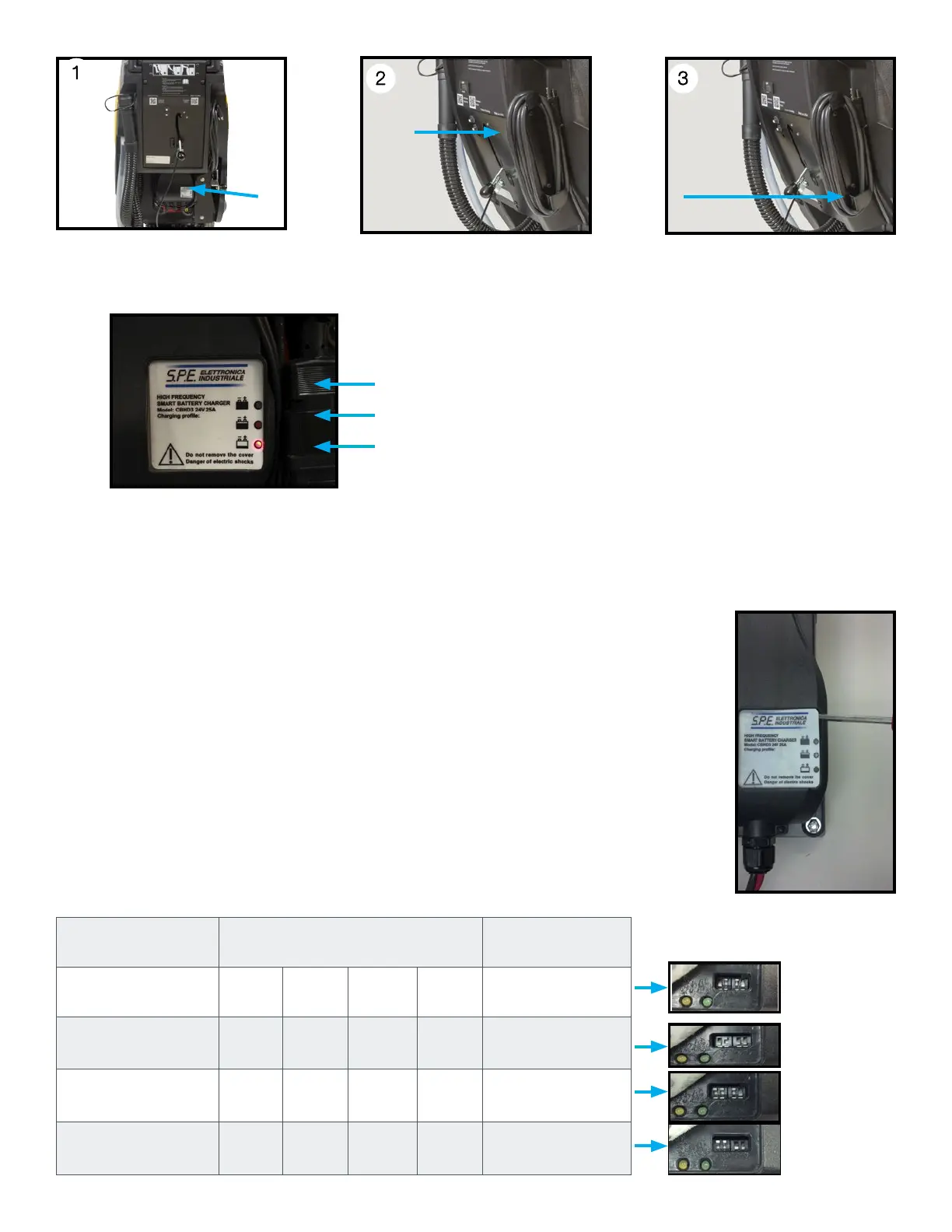

The on-board charger has charging indication LEDs - the red LED means it has just started the charging
cycle, the yellow LED indicates that it has reached the second phase of charging and green LED means the
unit is fully charged.
Charging indication LEDs
Red indicates charge cycle has just begun
Yellow indicates charge cycle is in the second phase
Green indicates charge cycle is complete
After charging is complete, wrap the cord of your on-board charger securely to ensure the cord is not
damaged.
MACHINE PREPARATION
SETTING THE DIP SWITCHES ON YOUR ON-BOARD CHARGER FOR YOUR BATTERY TYPE
Use small screw driver to
lift label o charger
BATTERY
PART NUMBER
DIP SWITCHES
(TOP TO BOTTOM)
BAT TERY
DESCRIPTION
851307
ON
(R)
OFF
(L)
OFF
(L)
ON
(R)
TROJAN 155AH
LEAD ACID
851306
ON
(R)
ON
(R)
OFF
(L)
ON
(R)
TROJAN 130AH
LEAD ACID
40005
ON
(R)
OFF
(L)
OFF
(L)
OFF
(L)
FULL RIVER 140AH
AGM
40004
ON
(R)
ON
(R)
OFF
(L)
OFF
(L)
FULL RIVER 105AH
AGM
The on-board charger is able to charge wet, lead acid or maintenance-free AGM
batteries. As your unit leaves the factory, the charger is set up to match the type of
battery chosen in the original machine order. Should you choose to change from the
original battery type, the charger can be changed by re-setting the dip switches.
NOTE: The on-board charger has been programmed to work with the batteries that
Tornado provides. Using other battery types not specied for the unit by Tornado may
impair performance of the unit and will aect the life of the batteries.
To access the dip switches, use a small screw driver to lift the corner of the label on the
on-board charger and peel back partially to reveal them. Set the dip switches as shown
below for the specic battery type being used in your machine.
Quick release hook
3
On-board charger
1
On-board charger cord wrap
2
