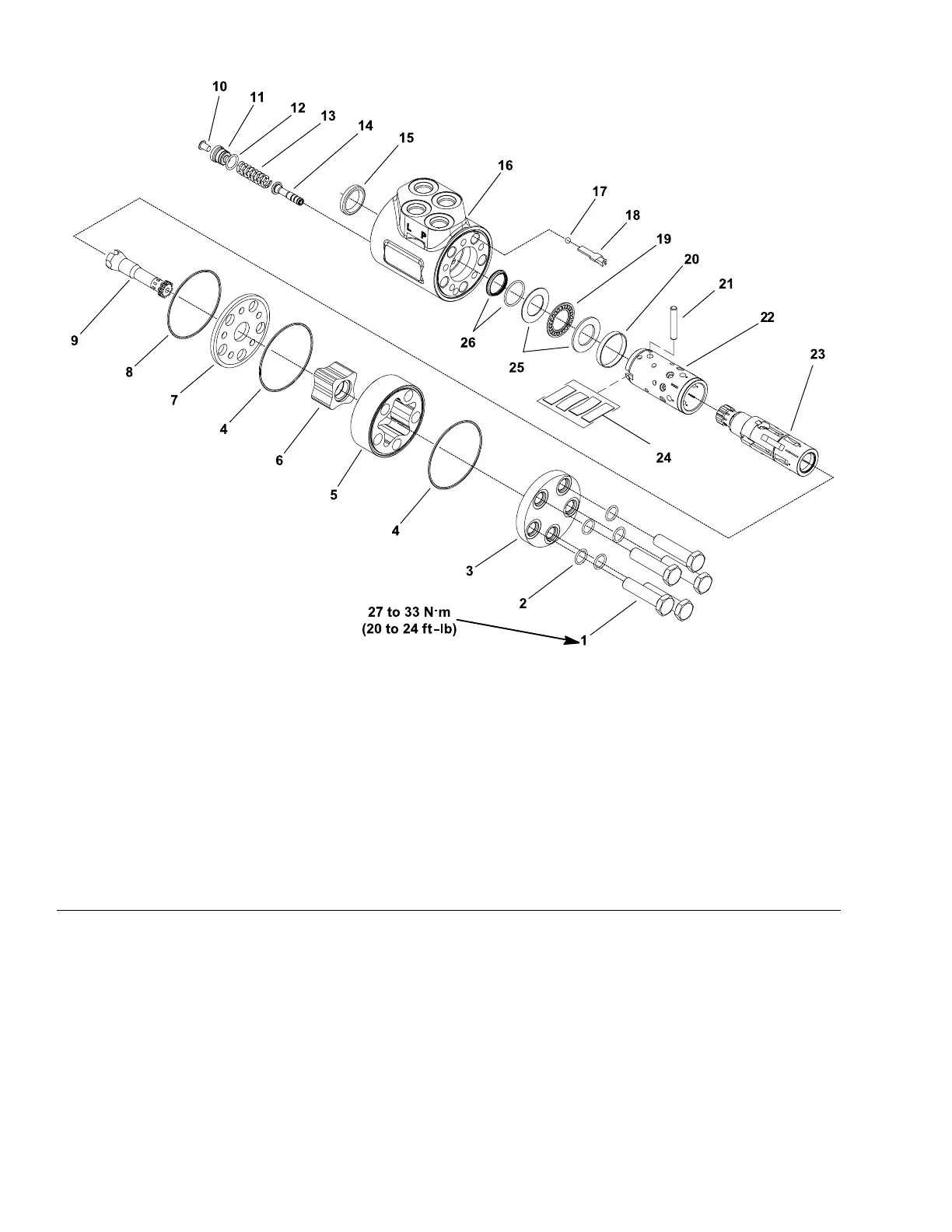

ServicingtheSteeringControlValve

g193310

Figure187

1.Screw(5each)

10.Plug19.Bearing

2.O-ring(5each)

11.Plug20.Ring

3.Endcover

12.O-ring21.Crosspin

4.O-ring13.Spring

22.Sleeve

5.Outergearwheel14.Reliefvalve23.Spool

6.Innergearwheel15.Dustsealring

24.Springset

7.Distributorplate16.Housing25.Thrustwasher

8.O-ring17.Checkball26.Shaftseal

9.Cardanshaft

18.Ballstop

Note:Forthesteeringcontrolvalverepairprocedures,refertotheSauer-Danfoss

SteeringUnitTypeOSPMServiceManualattheendofthischapter.
