ServicingtheBrakes

g215442

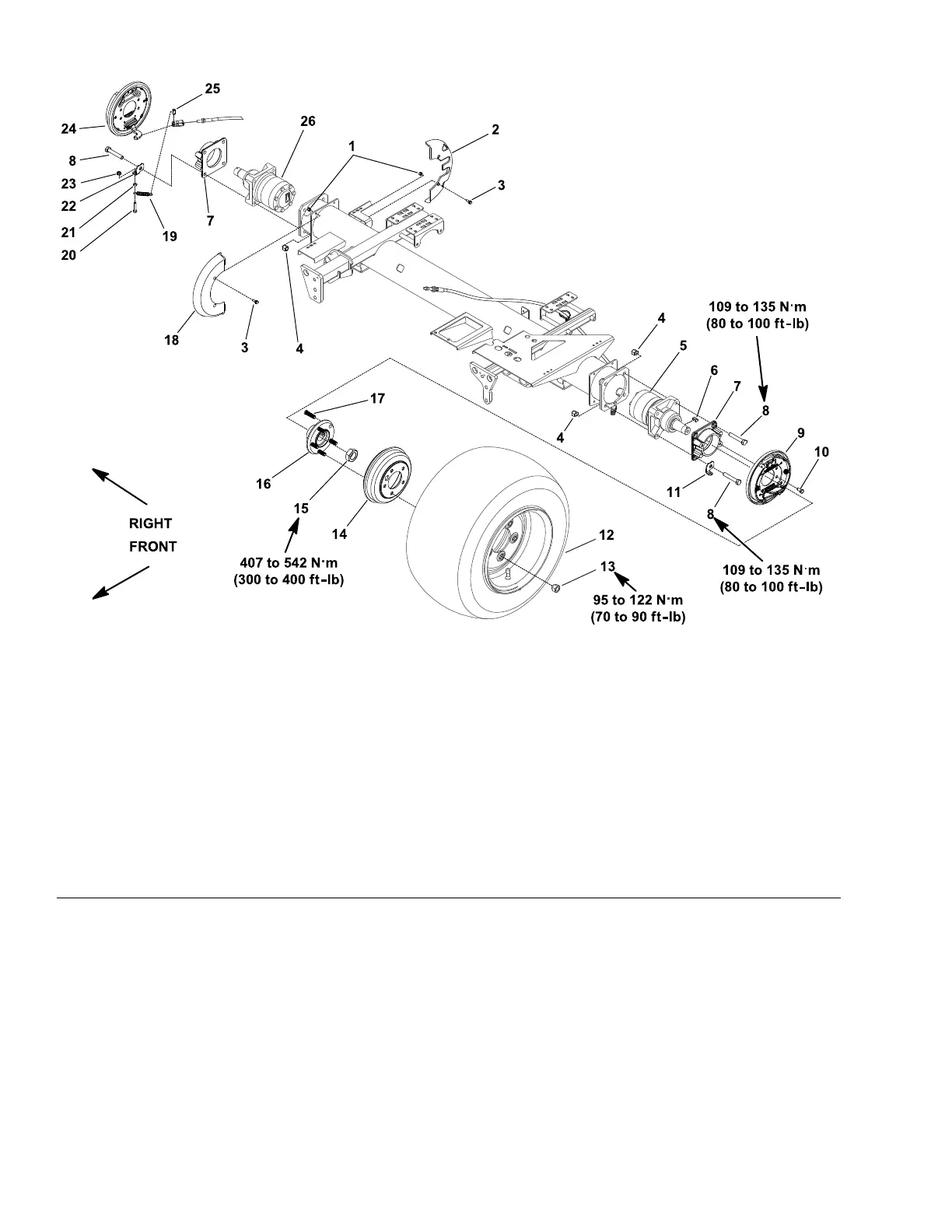

Figure294

1.Locknut(2eachperwheelshield)10.Bolt(4eachperbrakeassembly)19.Brakereturnspring(2each)

2.Wheelshield(rightrear)11.Leftspringclip20.Bolt(2each)

3.Flange-headscrew(2eachper

wheelshield)

12.Frontwheel(left)21.Jamnut(2each)

4.Locknut(4eachperwheelmotor)13.Wheel-lugnut(5eachperwheel)

22.Rightspringclip

5.Leftwheelmotor14.Brakedrum(2each)23.Flangenut(2each)

6.Squarekey(2each)15.Locknut(2each)

24.Rightbrakeassembly

7.Brakeadapter(2each)

16.Wheelhub

25.Clevispin(2each)

8.Bolt(4eachperwheelmotor)17.Wheelstud(5eachperhub)

26.Rightwheelmotor

9.Leftbrakeassembly18.Frontwheelshield(rightfront)

DisassemblingtheBrake

1.Parkthemachineonalevelsurface,lowerthecuttingunits,shutoffthe

engine,andremovethekeyfromthekeyswitch.

2.Blocktherearwheelswithchockstopreventthemachinefrommoving.

3.Removethefrontwheelassembly;refertoRemovingtheWheel(page8–6).

4.Ensurethattheparkingbrakeisdisengaged.

Note:Theclevispin(item25inFigure294)thatsecuresthebrakecableto

thebrakeactuatorleverissecuredwiththebrakereturnspring.

Chassis:ServiceandRepairs

Page8–10

Reelmaster

5410/5510/5610Series

15216SLRevC
