Service
and
Repairs
Air
Cleaner
System

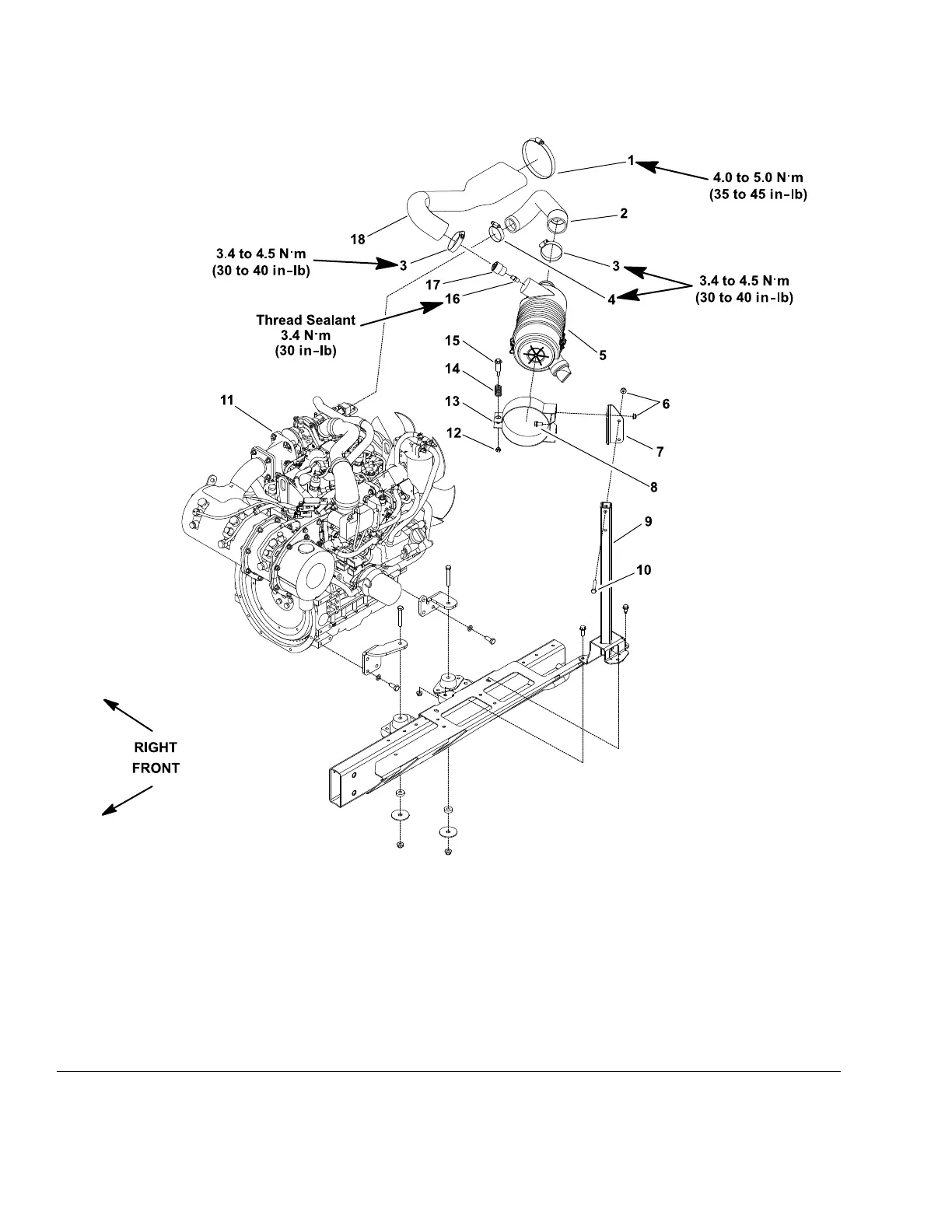

g188092
Figure
28
Reelmaster
5610-D
1.
Clamp
7.
Air
cleaner
bracket
13.
Air
cleaner
mounting
band
2.
Air
cleaner
outlet
hose
8.
Flange-head
screw
(2
each)
14.
Spring
3.
Hose
clamp
(2
each)
9.
Air
cleaner
stand
15.
Bolt
4.
Hose
clamp
10.
Bolt
(2
each)
16.
Adapter
5.
Air
cleaner
assembly
1
1.
Y
anmar
engine
17.
Service
indicator
6.
Flange
nut
(4
each)
12.
Nut
18.
Air
cleaner
inlet
hose
Y
anmar
Diesel
Engine:
Service
and
Repairs
Page
4–12
Reelmaster
®
5410/5510/5610
Series
15216SL
Rev
C
71
73
