Toro 03691 Service Manual

MechanicalSeatSuspension
g187025

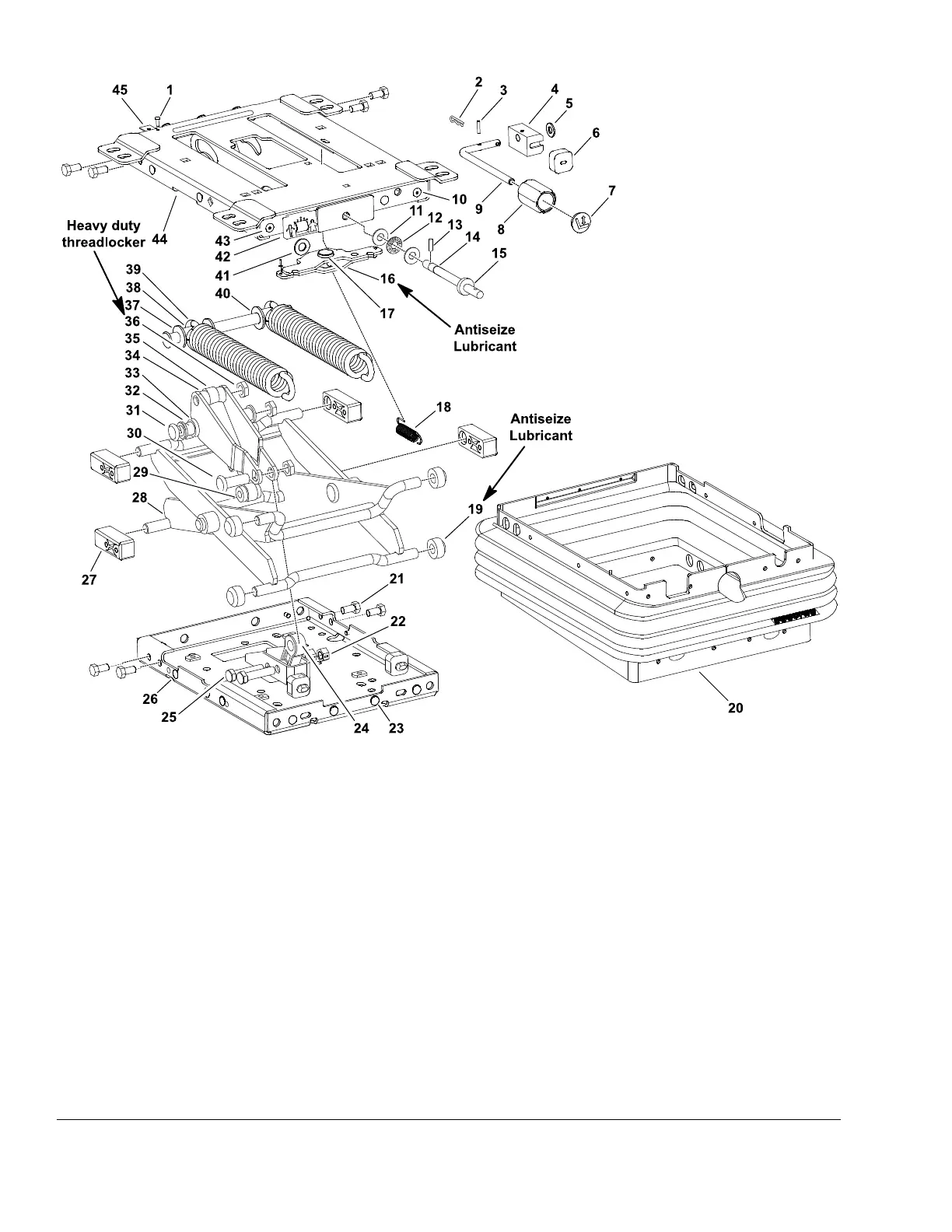

Figure310
1.Rivet(2each)
13.Rollpin
25.Lowershockbolt(2each)
37.Flatwasher
2.Cotterpin
14.Weightadjustspacer26.Lowerhousing
38.Springshaft
3.Rollpin
15.Weightadjustshaft27.Shaftblock(4each)39.Extensionspring(2each)
4.Up-stopbumperblock16.Weightadjuster
28.Scissorassembly40.Springbushing(2each)
5.Flatwasher17.Weightadjustnut29.Lowershockbushing
(2each)
41.Flatwasher
6.Bumper(3each)
18.Extensionspring30.Rollerpin42.Weightindicator
assembly
7.Heightadjustknobcap
19.Roller(4each)
31.Pivotpin
43.Malesnaprivet(2each)
8.Heightadjustknob
20.Suspensionboot32.Bearingtube(2each)
44.Upperhousing
9.Heightadjustrod
21.Threadformingscrew
(8each)
33.Drivearm45.Weightadjusttape
10.Femalesnaprivet
(2each)
22.Locknut(2each)
34.Uppershockbushing
(2each)
11.Thrustrace(2each)23.Pushclip(21each)
35.Damper
12.Thrustbearing
24.Guidelink36.Hexnut(3each)
Chassis:ServiceandRepairs
Page8–30
Reelmaster
®
5410/5510/5610Series
15216SLRevC
