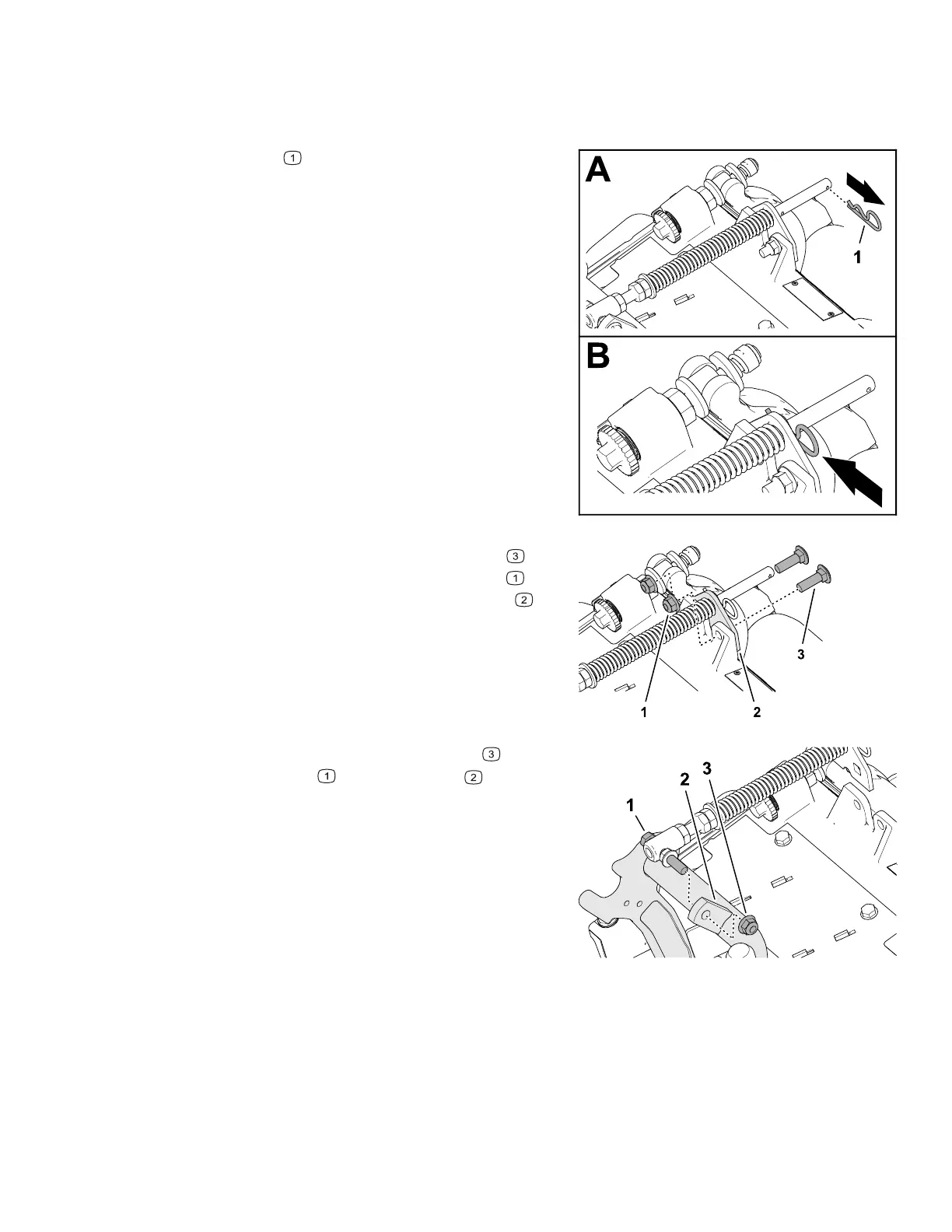

Positioning the Turf Compensating Spring and Installing
the Hose Guide (continued)
G410292
1. If the hairpin is installed in the rear hole of
the compensation-spring rod, remove the
hairpin and insert it in the hole next to the
bracket.
G402719
2. Remove the 2 flange locknuts (3/8 inch)
and 2 carriage bolts (3/8 x 1-1/4 inches)
that secure the turf-compensator bracket to
the cutting-unit frame.
G410295
3. Remove the flange locknut (3/8 inch)
securing the bolt to the right tab of the
carrier frame, and remove the compensation
spring from the cutting unit.
Note: Do not remove the flange serrated nut
from the bolt.
3466-702A Page 3–3 Setup: Installing the Cutting Units
