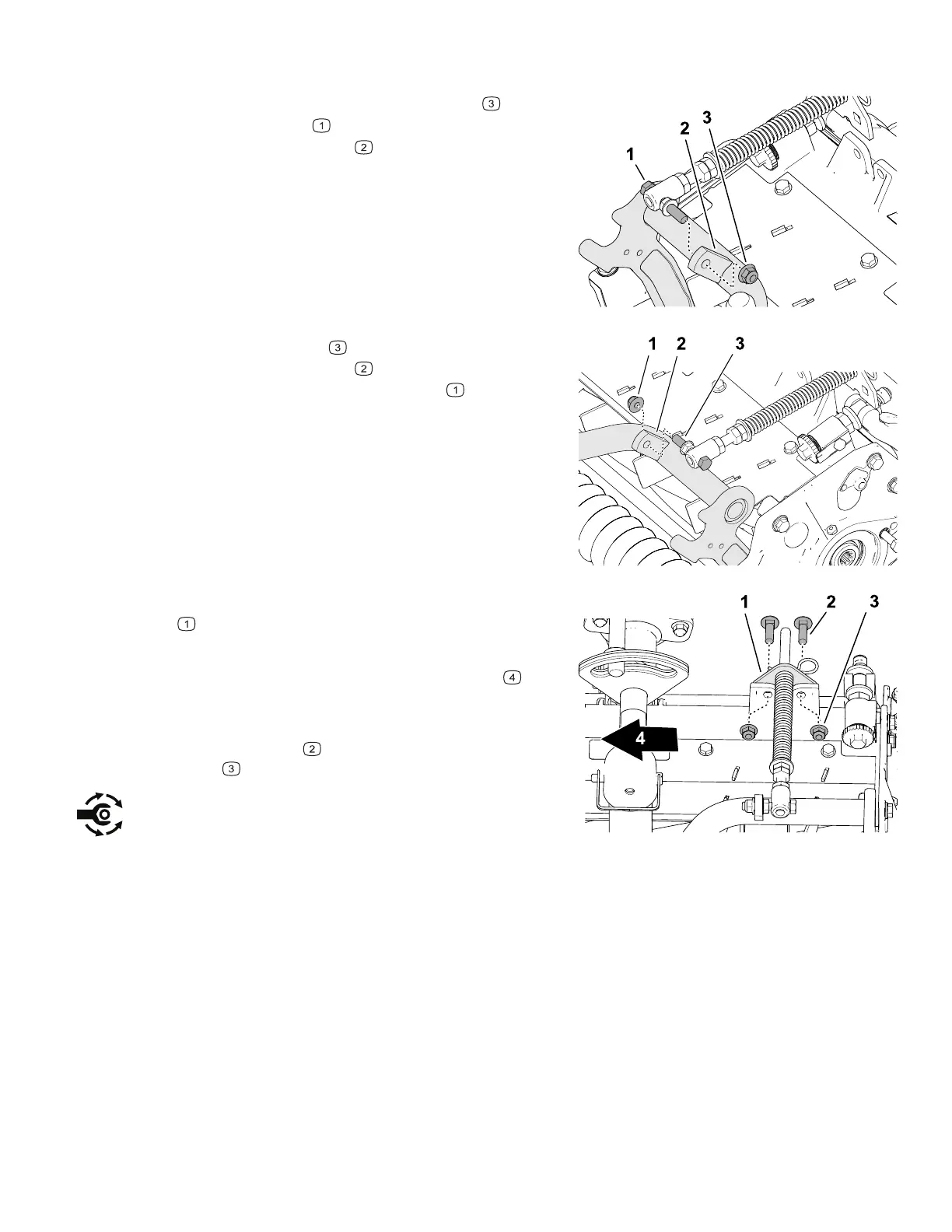

Positioning the Turf Compensating Spring (continued)
G410295
3. Remove the flange locknut (3/8 inch) that
secures the bolt
of the turf compensation
spring to the right tab
of the carrier frame,
and remove the compensation spring from the
cutting unit.
Note: Do not remove the flange serrated nut
from the bolt.
G410296
4. Assemble the bolt of the turf compensation
spring to the right tab
of the carrier frame
with the flange locknut (3/8 inch)
.
G411000
5. Align the holes in the turf-compensator bracket
with the holes in the cutting-unit frame.
Note: The support loop of the hose guide
aligns toward the center of the machine
.
6. Assemble the turf-compensator bracket to the
cutting-unit frame with the 2 carriage bolts (3/8
x 1-1/4 inches)
and 2 flange locknuts (3/8
inch)
.
7. Torque the locknuts and bolts to 37 to 45 N∙m
(27 to 33 ft-lb).
