Jacking Point Locations (continued)

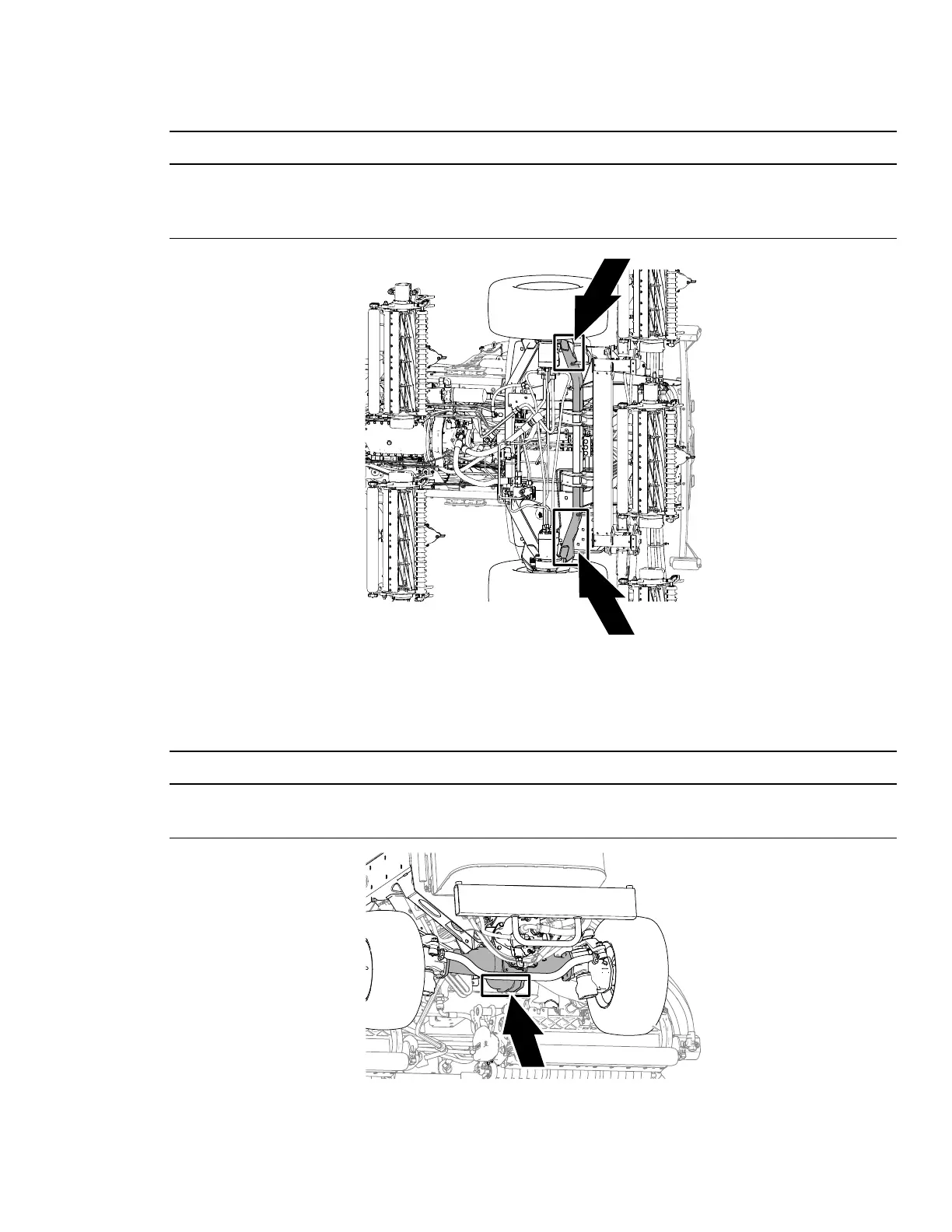

• Front—the frame of the machine, forward of the wheel-drive motors.
IMPORTANT
Do not support the machine at the wheel-drive motors. Keep the lifting equipment
clear of hydraulic tubing and hoses.
G424266
• Rear—the center of the axle.
Note: Locate the jack stands of the specified capacity at both sides of the gear case and
under the axle.
IMPORTANT
Do not support the machine at the tie rod.
G424267
Maintenance: Pre-Maintenance Procedures Page 6–10 3466-702 A
