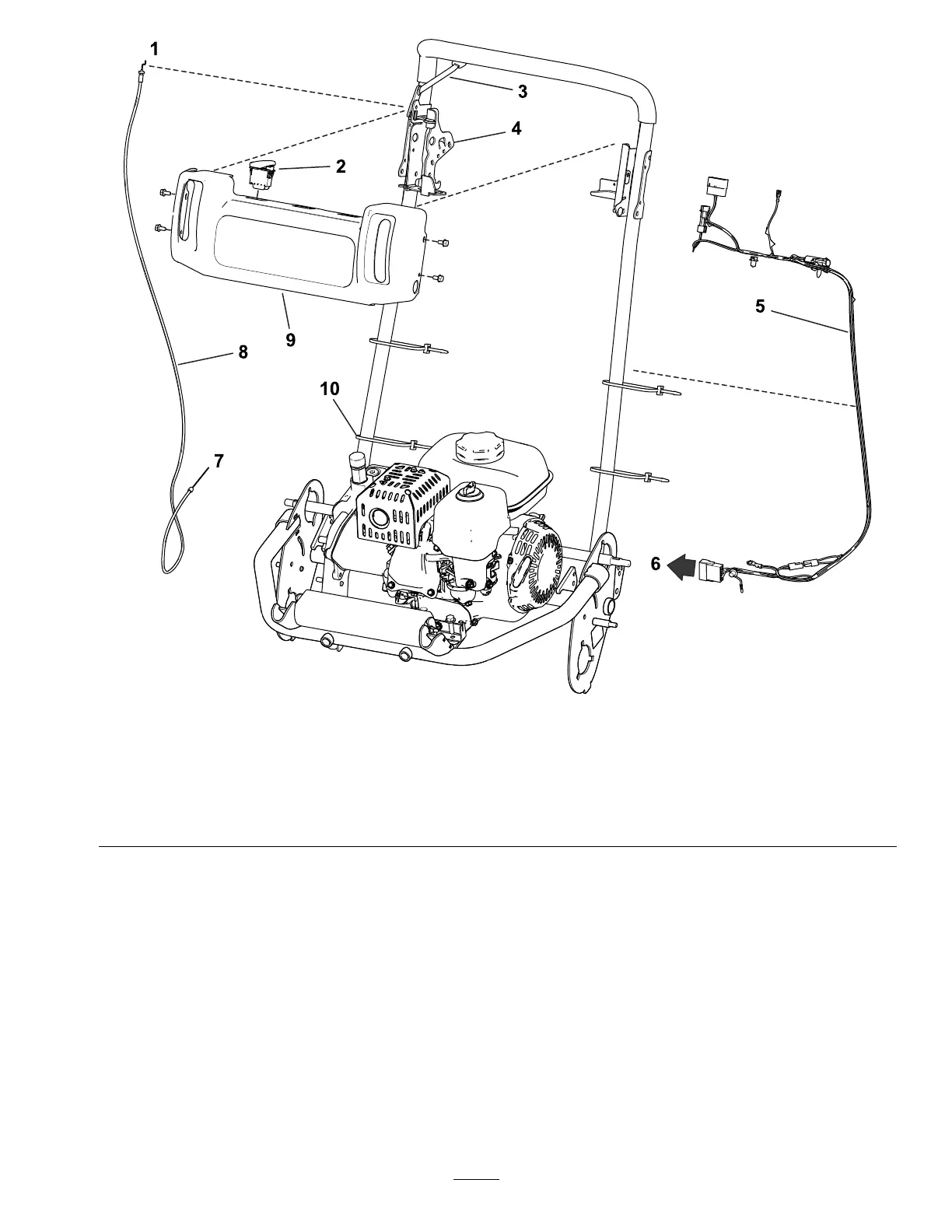

g262107
Figure
15
1.
Connect
to
the
throttle
lever
.
6.
Connect
to
the
interlock
module.
2.
Engine
switch
7.
Connect
to
the
throttle
on
the
engine.
3.
Throttle
lever
8.
Throttle
cable
4.
T
raction
bracket
9.
Console
cover
5.
Wire
harness
10.
Cable
tie
8.
Loosen
the
screw
on
top
of
the
cable
clamp.
9.
Install
the
straight
end
of
the
throttle
cable
housing
through
the
wide
clamp
and
the
throttle
cable
through
the
cable
clamp
(
Figure
16
).
12
11
13
Table of Contents
Table of Contents
1
Introduction
1
Safety
2
Safety and Instructional Decals
2
Installation
4
Installing a Gearbox Vent
4
Removing the Existing Engine
4
Installing the New Engine
7
Preparing the New Engine
8
Installing the Controls
9
Installing the Wire Harness and Throttle Cable
11
Lubricating and Adjusting the Machine
14
Product Overview
14
Controls
14
Operation
15
Fuel Specifications
15
Using Stabilizer/Conditioner
15
Filling the Fuel Tank
15
Opening and Closing the Fuel-Shut-Off Valve
16
Maintenance
17
Recommended Maintenance Schedule(S)
17
Preparing the Machine for Maintenance
17
Servicing the Engine Oil
18
Servicing the Air Cleaner
19
Servicing the Spark Plug
20
