Greensmaster Flex 21Groomer (Model 04204) (Rev. B) Page 9 – 12
Groomer Reel Bearing Replacement

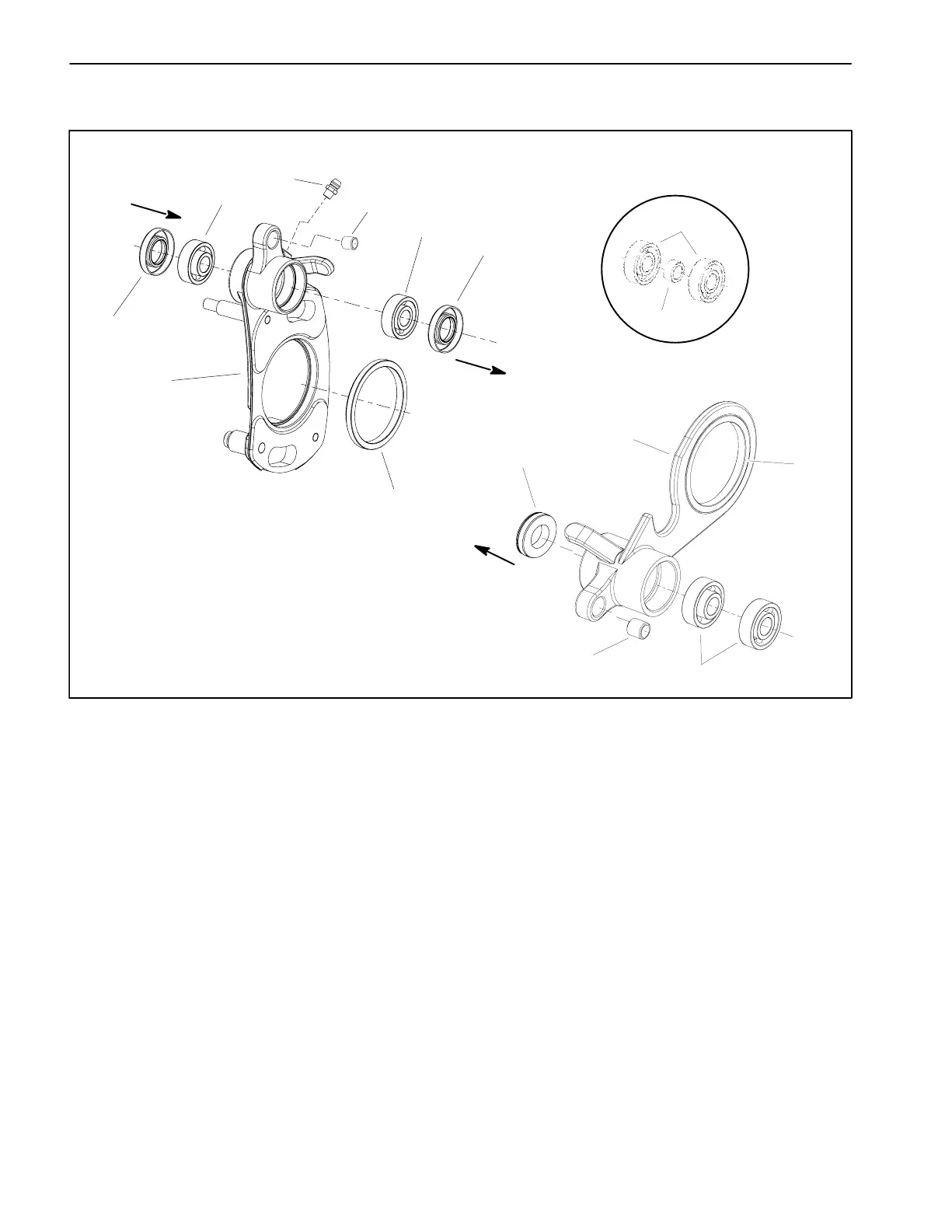

Figure 13
1. RH groomer side plate
2. Oil seal
3. Bearing (w/extended inner race)
4. Grease fitting
5. Bushing
6. Side plate bushing
7. LH groomer side plate
8. Bearing (early production)
9. Bearing spacer (early production)
2
1
3
2
Seal lip
3
4
Seal lip
5
7
2
3
6
5
Seal lip
6
Early Production Bearings
With Spacer
9
8
Bearing Removal
1. Remove front roller, RH groomer side plate and
groomer reel (see Groomer Reel Removal in this sec-
tion).
2. Remove LH groomer side plate:
A. Take reel drive assembly from left side of cutting
unit (see Cutting Reel Removal in the Service and
Repairs section of Chapter 7 – Cutting Unit).
B. Remove lock nut and spring washer that secure
LH groomer arm lift rod to LH groomer side plate (Fig.
14). Remove LH groomer side plate from mower.
3. Replace bearings in both side plate assemblies (Fig.
13):
A. Remove seals from groomer side plates. Discard
seals.
NOTE: Early production groomers are equipped with a
spacer between the bearings. Later production groom-
ers have bearings with an extended inner race and no
spacer.
B. Push bearings out of housing. Discard bearings.
If equipped, locate and retrieve spacer.
