12
Description UseQty.
Anti-scalp roller
Pull link assembly
Roller shaft
Spacer
Washer
Lock nut, 3/8–16
6
6
6
6
12
6
Mount the front rollers
Offset Lift Hook 1 Mount to cutting unit Models 04610 & 04611.
Capscrews, M10–1.5 2
Use to mount offset lift hook to cutting unit
Models 04610 & 04611.
Grass Basket 3 Mount to the pull frame.
Ignition key 2
Service decal 11
Affix appropriate language decal over English
service decal (100-3150).
Operator’s manual (traction unit)
Operator’s manual (engine)
2
1
Read before operating the machine.
Operator video 1 Watch before operating the machine.
Parts Catalog
Certificate of compliance
Pre-delivery sheet
Noise certificate
1
1
1
1
Note: Mounting fasteners for the Greensmaster 3250-D cutting units are included with the cutting units.
Installing the Front Wheels
Mount the front wheels and torque the mounting nuts to
70–90 ft.-lb.
Installing the Rear Wheel
1. Mount the wheel hub to the rear wheel rim with 4
mounting nuts (Fig. 2). Torque the nuts to 70–90 ft.-lb.
2. Remove the wheel bolt and locknut from the wheel
mounting holes in the rear castor fork (Fig. 2).
3. Install the rear wheel into the castor fork. Insert the
wheel bolt into one of the castor fork mounting holes,
install a spacer (supplied in loose parts), and slide the
bolt through the wheel.
4. Install another spacer onto the bolt and route the bolt
through the remaining castor fork mounting hole.
5. Position the bend of the wheel bolt head under the
bottom edge of the adapter plate (Fig. 2). Install and
tighten the locknut to secure the wheel to the castor
fork. Do not overtighten the locknut as the wheel must
rotate freely.
1
2
3
4
5
6

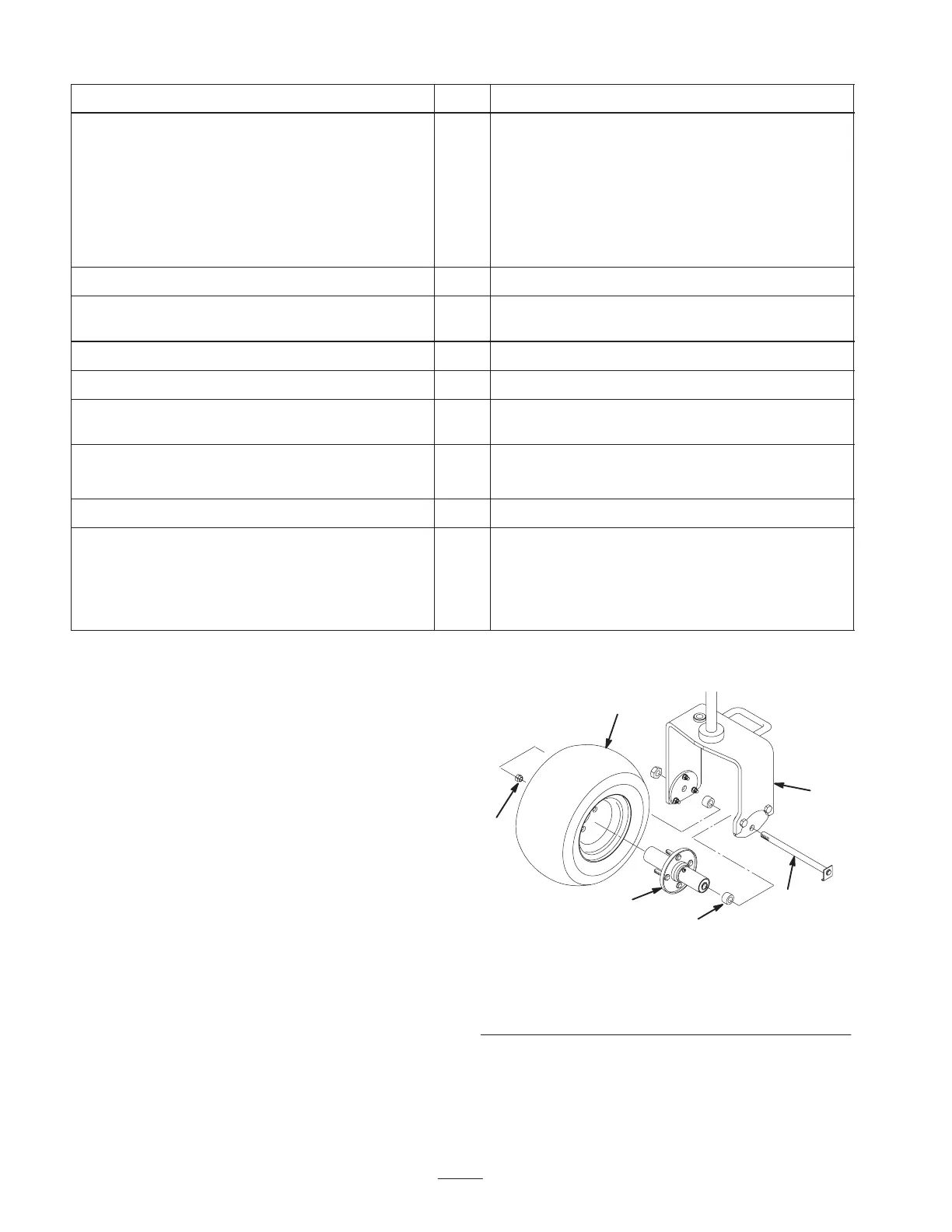

Figure 2
1. Rear wheel
2. Hub
3. Nut
4. Rear castor fork
5. Wheel bolt
6. Spacer (2)
6. Wipe the grease fitting clean on the wheel assembly.
Pump grease into the wheel hub until grease is seen
exiting at both hub bearings. Wipe up excess grease.
