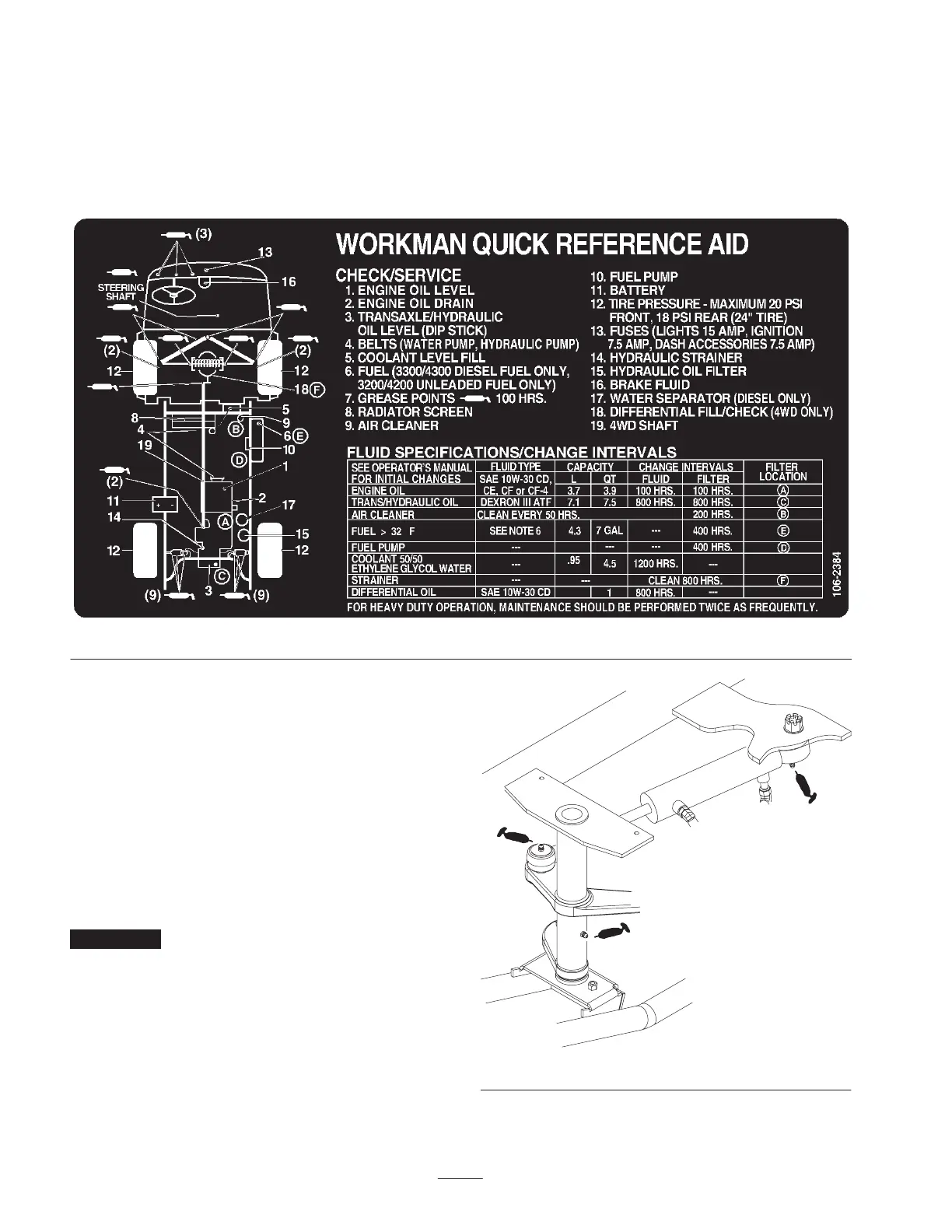

32
Maintenance
Figure 27
1. Hydraulic filter
2. Gasket
Figure 28
1. Hydraulic strainer
FRONT WHEEL TOE-IN
After every 600 operating hours or annually, check
front wheel toe-in.
1. Measure center-to-center distance (at axle
height) at front and rear of steering tires. Front
measurement must be equal to the rear measure-
ment 3mm.
Figure 29
2. To adjust, loosen jam nuts at both ends of tie
rod.
Figure 30
1. Tie rod
3. Rotate tie rod to move front of tire inward or
outward.
4. Tighten tie rod jam nuts when adjustment is
correct.
EMERGENCY BOX RAISING
(without starting the engine)
The box can be raised in an emergency by cranking
starter and holding lift lever. Run starter for 10 sec-
onds then wait 60 seconds before engaging starter
again.
If the engine will not crank, the load and box
(attachment) must be removed to service the engine
or transaxle.
FUSES
There are three fuses in the machine’s electrical sys-
➀
➁
Center-to-Center Distance
➀
